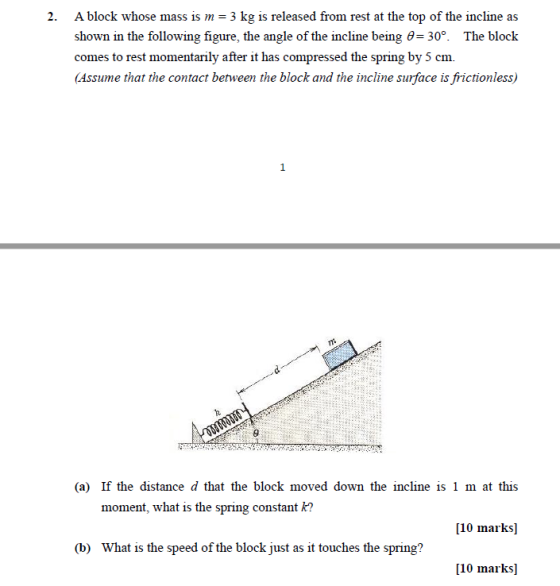

![A block whose mass is m shown in the following figure, the angle of the incline being 6-30°. The block comes to rest momentarily after it has compressed the spring by 5 cm. Assume that the contact benween the block and the incline sunface is frictionless 2. 3 kg is released from rest at the top of the incline as TR (a) If the distance d that the block moved down the incline is 1 m at this [10 marks] [10 marks moment, what is the spring constant k? (b) What is the speed of the block just as it touches the spring?](http://img.homeworklib.com/questions/ad9be220-3152-11ea-9801-33a2070a082e.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
A block whose mass is m shown in the following figure, the angle of the incline...
2. Starting from rest, a block of mass m slides down a frictionless incline at angle...
2. Starting from rest, a block of mass m slides down a frictionless incline at angle θ(0◦ < θ < 90◦) where it runs into a spring of spring constant k. When the block momentarily stops, it has compressed the spring by distance x. Find expressions for (a) the distance the block slides down the incline from when it is released to when it momentarily stops (b) the distance between the point of the first block-spring contact and the point...
In the figure, a block of mass m = 11 kg is released from rest on...
In the figure, a block of mass m = 11 kg is released from rest on a frictionless incline of angle θ = 26°. Below the block is a spring that can be compressed 3.4 cm by a force of 320 N. The block momentarily stops when it compresses the spring by 5.3 cm. (a) How far does the block move down the incline from its rest position to this stopping point? (b) What is the speed of the block...
Question 5 In the figure, a block of mass m = 3.50 kg slides from rest...
Question 5 In the figure, a block of mass m = 3.50 kg slides from rest a distance d down a frictionless incline at angle 9 = 27.0° where it runs into a spring of spring constant 470 N/m. When the block momentarily stops, it has compressed the spring by 20.0 cm. What are (a) distance d and (b) the distance between the point of the first block-spring contact and the point where the block's speed is greatest? A (a)...
M -/2 points HRW6 8.P.021 In Fig. 8-34, a 12 kg block is released from rest on an incline angled at e 30. Below the blo...
M -/2 points HRW6 8.P.021 In Fig. 8-34, a 12 kg block is released from rest on an incline angled at e 30. Below the block is a spring that can be compressed 2.0 cm by a force of 270 N The block momentarily stops when it compresses the spring by 6.4 cm. 12 kg Figure 8-34 (a) How far has the block moved down the incline to this stopping point? m (b) What is the speed of the block...
Incline, Spring, and Friction: A block of mass 500 g is attached to a spring of...
Incline, Spring, and Friction: A block of mass 500 g is attached to a spring of spring constant 80 N m−1. The other end of the spring is attached to a support while the mass rests on a rough surface with a coefficient of friction of 0.20 that is inclined at angle of 30◦ . The block is pushed along the surface till the spring compresses by 10 cm and is then released from rest. (a) Compute how much potential...
A 19.0-kg block is released from rest on a frictionless 35.0 incline. Below the block is...
A 19.0-kg block is released from rest on a frictionless 35.0 incline. Below the block is a spring that can be compressed 3.60 cm by a force of 270 N. After the block is released, the block slides down the frictionless ramp and compresses the spring by 5.50 cm. How fast is the block traveling the moment it reaches the spring?
Part 1) A small block travels up a frictionless incline that is at an angle of...
Part 1) A small block travels up a frictionless incline that is at an angle of 30.0°above the horizontal. The block has speed 4.26 m/s at the bottom of the incline. Assume g = 9.80 m/s2. How far up the incline (measured parallel to the surface of the incline) does the block travel before it starts to slide back down? Part 2) Complete the following exercises. (Assume g = 9.80 m/s2.) (a) A small block is released from rest at...
A block of mass 11.0 kg slides from rest down a frictionless 33.0° incline and is...
A block of mass 11.0 kg slides from rest down a frictionless 33.0° incline and is stopped by a strong spring with k = 2.80 ✕ 104 N/m. The block slides 3.00 m from the point of release to the point where it comes to rest against the spring. When the block comes to rest, how far has the spring been compressed?
A block of mass 3 kg is pushed against a spring of spring constant 3000 N/m....
A block of mass 3 kg is pushed against a spring of spring constant 3000 N/m. Initially, the spring is compressed by a distance of 0.220 m, when the block is released from rest and travels along a horizontal frictionless surface before encountering a frictionless ramp, inclined at an angle of 37° above the horizontal. How far along the ramp does the block travel before momentarily coming to rest?
A physics student pulls a block of mass m = 22 kg up an incline at...
A physics student pulls a block of mass m = 22 kg up an incline
at a slow constant velocity for a distance of d = 4.5 m. The
incline makes an angle ? = 32° with the horizontal. The coefficient
of kinetic friction between the block and the inclined plane is µk
= 0.3.
1) What is the work Wm done by the student?
2) At the top of the incline, the string by which she was pulling
the...
Question 5 In the figure, a block of mass m = 3.50 kg slides from rest a distance d down a frictionless incline at angle 9 = 27.0° where it runs into a spring of spring constant 470 N/m. When the block momentarily stops, it has compressed the spring by 20.0 cm. What are (a) distance d and (b) the distance between the point of the first block-spring contact and the point where the block's speed is greatest? A (a)...
M -/2 points HRW6 8.P.021 In Fig. 8-34, a 12 kg block is released from rest on an incline angled at e 30. Below the block is a spring that can be compressed 2.0 cm by a force of 270 N The block momentarily stops when it compresses the spring by 6.4 cm. 12 kg Figure 8-34 (a) How far has the block moved down the incline to this stopping point? m (b) What is the speed of the block...
A physics student pulls a block of mass m = 22 kg up an incline
at a slow constant velocity for a distance of d = 4.5 m. The
incline makes an angle ? = 32° with the horizontal. The coefficient
of kinetic friction between the block and the inclined plane is µk
= 0.3.
1) What is the work Wm done by the student?
2) At the top of the incline, the string by which she was pulling
the...
