Homework Answers

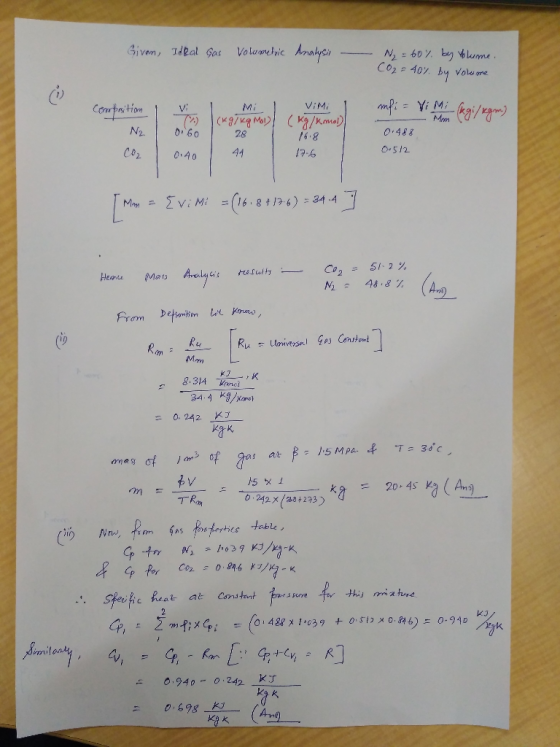

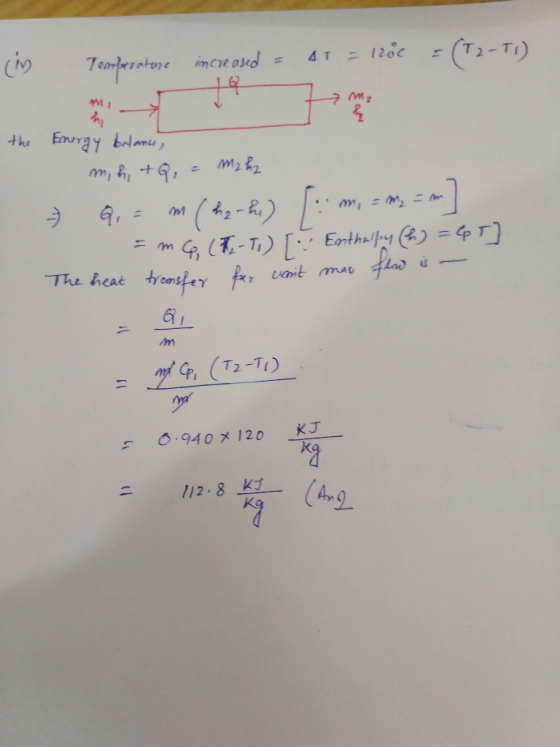

As per HomeworkLib policy I can answer one question at a time..
However I have provided the solution for the first four parts.
Add Answer to:

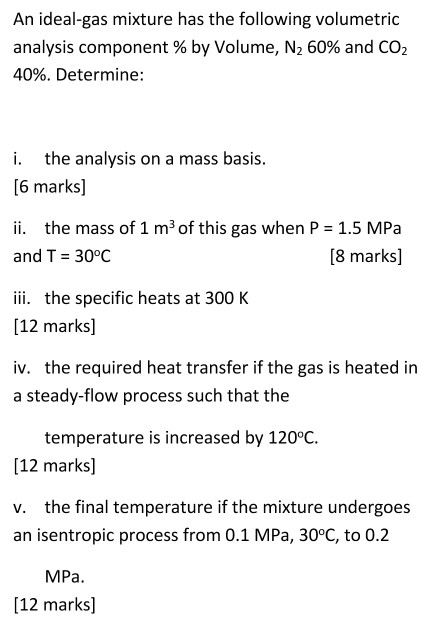

An ideal-gas mixture has the following volumetric analysis component % by Volume, N2 60% and CO2...
The exhaust gas from a combustion chamber has the following ultimate analysis, percent by mass: 25%...
The exhaust gas from a combustion chamber has the following ultimate analysis, percent by mass: 25% N2, 45% CO, 2% H2, and 28% CO2. A sample of the gas mixture is taken and stored in a solid tank with the volume of 0.001 m3 . Determine (a) the total mass of mixture in the tank at 20℃ and 0.1 MPa (b) mole fraction of mixture in the tank at 20℃ and 0.1 MPa (c) heat transfer required to heat the...
QUESTION 1 [10 MARKS] The gravimetric analysis of a gas mixture is 50% N2, 40% CO2...
QUESTION 1 [10 MARKS] The gravimetric analysis of a gas mixture is 50% N2, 40% CO2 and 10% CH with a temperature of 40°C and pressure of 1 bar. Calculate, 1.1 the partial pressure of each component, in bar. 1.2 the molar mass for the gas mixture, in kg/kmol. 1.3 the mass by 4 m of mixture, in kg.
Thermodynamics The gravimetric analysis of a gas mixture is 50% N2, 40% CO2 and 10% CH4...
Thermodynamics
The gravimetric analysis of a gas mixture is 50% N2, 40% CO2 and 10% CH4 with a temperature of 40°C and pressure of 1 bar. Calculate, 1.1 the partial pressure of each component, in bar. 1.2 the molar mass for the gas mixture, in kg/kmol. 1.3 the mass by 4 m? of mixture, in kg.
QUESTION 1 [ 10 MARKS] The gravimetric analysis of a gas mixture is 50% N2, 40%...
QUESTION 1 [ 10 MARKS] The gravimetric analysis of a gas mixture is 50% N2, 40% CO2 and 10% CH4 with a temperature of 40°C and pressure of 1 bar. Calculate, 1.1 the partial pressure of each component, in bar. 1.2 the molar mass for the gas mixture, in kg/kmol. 1.3 the mass by 4 m of mixture, in kg. QUESTION 2 [ 10 MARKS A vessel having a volume of 3 m’initially contains a mixture of Triatomic at 21°C,...
An insulated gas turbine receives a mixture of 10% CO2, 10% H20, and 80% N, on...
An insulated gas turbine receives a mixture of 10% CO2, 10% H20, and 80% N, on a mass basis at 1200 K and 0.5 MPa. The inlet volumetric flow rate is 2 m/s and the exhaust is at 650 K, 0.1 MPa. Find the power output in kilowatts using: a) constant specific heats (at 800 K) from Table A-20 b) the Ideal Gas table, Table A-23 4. Work Problem 12.37 from the text.
The volume composition of a gas mixture is given as H2: 30%, CO: 35%, CO2:15%, N2:...
The volume composition of a gas mixture is given as H2: 30%, CO: 35%, CO2:15%, N2: 15% and H2O: 5%. Determine: (a) mass fraction of the component gases in the mixture, (b) gas constant of the mixture, (c) constant pressure specific heat of the mixture, (d) Dew Point of the water in the mixture, (e) How much heat must be transfered to heat the gas mixture stream from 100 kPa, 70oC to 95 kPa, 590oC, and how much will be...
An ideal gas mixture consists of 35% Argon (Ar) and 65% carbon dioxide (CO2) gases, by...
An ideal gas mixture consists of 35% Argon (Ar) and 65% carbon dioxide (CO2) gases, by mass. The mixture is now expanded isentropically in a turbine from 1200K and 1.2 MPa to a pressure of 150 kPa. For the two components use properties listed in Table A1 and Table A2a (at 300K) – ideal gas with constant specific heats. The mixture temperature at turbine exit is, in Kelvin (round to nearest integer; for example if the answer is 345.6K, write...
An ideal-gas mixture consists of 3 kmol of N2 and 9 kmol of CO2. What is...
An ideal-gas mixture consists of 3 kmol of N2 and 9 kmol of CO2. What is the mass fraction of CO2 in the mixture? Solve using appropriate software. Use the table containing the molar mass, gas constant, and critical-point properties.
A mixture of gases has the composition given in Table 1. It has a total mass...
A mixture of gases has the composition given in Table 1. It has a total mass of 3.46 kg, and has an initial volume and temperature of 1.273 m3 and 300 K respectively. The mixture undergoes polytropic compression to a final volume of 0.5 m3. The polytropic index for this process is known to be 1.2. Table 1: Volumetric analysis of a mixture of gases Constituent Gas Chemical Symbol Volumetric Analysis ViV Molar Mass m˜i [kg/kmol] Specific Heat Capacity at...
1.Argon contained in a closed, rigid tank, initially at 62.3°C, 3.9 bar, and a volume of...
1.Argon contained in a closed, rigid tank, initially at 62.3°C, 3.9 bar, and a volume of 4.2 m3, is heated to a final pressure of 9.4 bar. Assuming the ideal gas model with k = 1.6 for the argon, determine the heat transfer, in kJ. 2.Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at 223°C from a pressure of 5.4 bar to a pressure of 1.9 bar. Evaluate the work, in kJ/kg. 3.A mass of 4 kilograms...
QUESTION 1 [10 MARKS] The gravimetric analysis of a gas mixture is 50% N2, 40% CO2 and 10% CH with a temperature of 40°C and pressure of 1 bar. Calculate, 1.1 the partial pressure of each component, in bar. 1.2 the molar mass for the gas mixture, in kg/kmol. 1.3 the mass by 4 m of mixture, in kg.
Thermodynamics
The gravimetric analysis of a gas mixture is 50% N2, 40% CO2 and 10% CH4 with a temperature of 40°C and pressure of 1 bar. Calculate, 1.1 the partial pressure of each component, in bar. 1.2 the molar mass for the gas mixture, in kg/kmol. 1.3 the mass by 4 m? of mixture, in kg.
QUESTION 1 [ 10 MARKS] The gravimetric analysis of a gas mixture is 50% N2, 40% CO2 and 10% CH4 with a temperature of 40°C and pressure of 1 bar. Calculate, 1.1 the partial pressure of each component, in bar. 1.2 the molar mass for the gas mixture, in kg/kmol. 1.3 the mass by 4 m of mixture, in kg. QUESTION 2 [ 10 MARKS A vessel having a volume of 3 m’initially contains a mixture of Triatomic at 21°C,...
An insulated gas turbine receives a mixture of 10% CO2, 10% H20, and 80% N, on a mass basis at 1200 K and 0.5 MPa. The inlet volumetric flow rate is 2 m/s and the exhaust is at 650 K, 0.1 MPa. Find the power output in kilowatts using: a) constant specific heats (at 800 K) from Table A-20 b) the Ideal Gas table, Table A-23 4. Work Problem 12.37 from the text.
