Add Answer to:

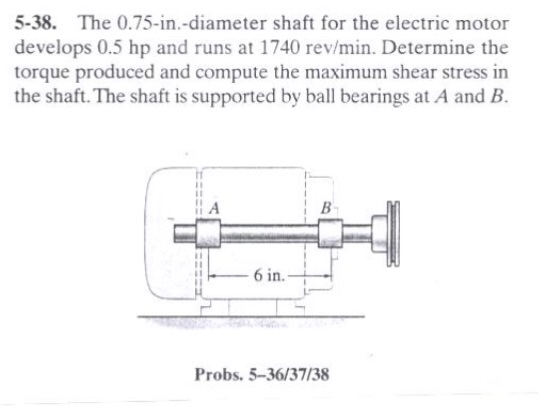

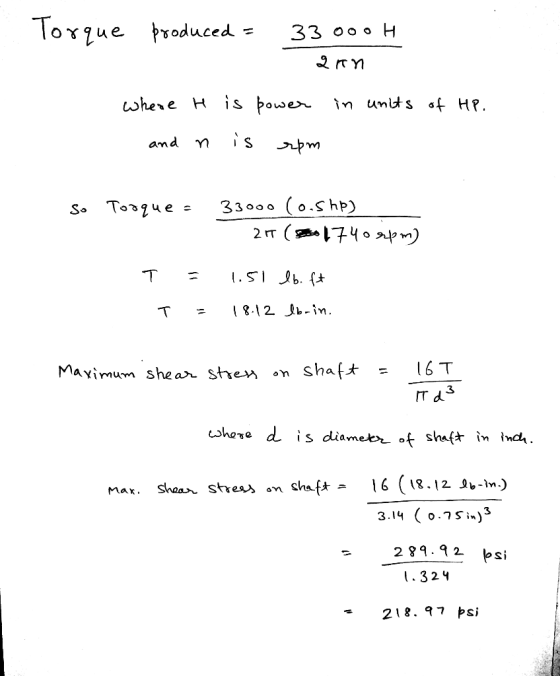

5-38. The 0.75-in.-diameter shaft for the electric motor develops 0.5 hp and runs at 1740 rev/min....
The gear motor can develop hp when it turns at 390 rev/min The shaft has a...
The gear motor can develop hp when it turns at 390 rev/min The shaft has a diameter of 112 in. Part A Determine the maximum shear stress in the shaft. Express your answer to three significant figures and include appropriate units "max =1 alue psi SubmitPre Previous Answers Request Answer
Hp when it turns at The gear motor can develop 300 rev/min Tap image to zoom The shaft has a diam...
Strength of Material
hp when it turns at The gear motor can develop 300 rev/min Tap image to zoom The shaft has a diameter of 1/2 in. Part A Determine the maximum shear stress in the shaft Express your answer to three significant figures and include appropriate units. Tmax = Value Units The 0.75-in.-diameter bent rod is subjected to the load F (330i 475j-250i) ib. 3 ft I ft l ft Tap image to zoom Part A Determine the maximum...
A hollow shaft of a motor is supported with bearings by the motor and extends horizontally...
A hollow shaft of a motor is supported with bearings by the motor and extends horizontally 50mm out of the motor. The shaft has an outer diameter of 40mm and a thickness of 5mm. How much is the torque to produce a maximum shear stress of 200 MPa. Ignoring the shafts own weight, how much is the load at the suspending end of the shaft (50mm away from the bearings) that produces 300 MPa maximum normal stress on the shaft.
Alt h. 10- The motor delivers 40 hp to the 304 stainless steel shaft while it...
Alt h. 10- The motor delivers 40 hp to the 304 stainless steel shaft while it rotates at 20 Hz. The shaft is supported on smooth bearings at A and B, which allow free rotation of the shaft. The gears C and D fixed to the shaft remove 25 hp and 15 hp, respectively. Determine the diameter of the shaft to the nearest 1/8 in. if the allowable shear stress is 8 ksi and the allowable angle of twist of...
5. The 0.875-in-diameter solid steel shaft shown below is simply supported with bearings at the ends....
5. The 0.875-in-diameter solid steel shaft shown below is simply supported with bearings at the ends. Loads are applied to arms welded to the shaft at B. Torque is provided through a flexible coupling at A. Determine the bending stress, shear stress and maximum principle stress just to the left and right of point B. por pe 1500 16 500 lb —12” — " B/G 16" 200 lb
The shaft shown below is transmitting 150 hp at o- 1030 steel, quenched and provide simple...
The shaft shown below is transmitting 150 hp at o- 1030 steel, quenched and provide simple supports. Gears mounted to the shaft create the transverse forces shown. For L-24 in, do-2.5 in, - 0.125 in, Fi-800 lb, and factor of safety of the shaft with respect to yielding. Use both the von Mises shear stress criteria and compare the results of the two. Recall the power, torque, and spee rotating shaft are related through P- oT, where Pis the power,...
The solid steel shaft DF has a diameter of 25 mm and is supported by smooth...
The solid steel shaft DF has a diameter of 25 mm and is supported by smooth bearings at D and E. It is coupled to a motor at F, which delivers 12 kW of power to the shaft while it is turning at 60 rev/s.The gears A, B, and C remove 3 kW, 4 kW, and 5 kW respectively. The shaft is free to turn in its support bearings D and E. (Figure 1) Part A Determine the absolute maximum...
The solid steel shaft DF has a diameter of 25 mm and is supported by smooth...
The solid steel shaft DF has a diameter of 25 mm and is supported by smooth bearings at D and E. It is coupled to a motor at F, which delivers 12 kW of power to the shaft while it is turning at 35 rev/s . The gears A B, and C remove 3 kW, 4 kW, and 5 kW respectively The shaft is free to turn in its support bearings D and E (Figure 1) Part A Determine the...
Question 13 5 pts An electric motor delivers 67-HP mechanical power when its shaft turns at...
Question 13 5 pts An electric motor delivers 67-HP mechanical power when its shaft turns at 2,832 RPM. What is the shaft torque in N.m? 1 HP = 746 W. Question 14 5 pts Copy of A DC motor supplied from 48 V draws 5 amps and turns at 157 rad/sec when the load torque is 1.45 N.m. What is the efficiency in percent?
Question 3 [181 A 2-start worm transmits 0.75 hp at 600 rev/min to a 36-tooth gear...
Question 3 [181 A 2-start worm transmits 0.75 hp at 600 rev/min to a 36-tooth gear having a transverse diametral pitch of 8. The worm has a normal pressure angle of 20, a pitch diameter of 38 mm, an axial pitch of 25 mm, and a face width of 38 mm. Find the lead, lead angle, worm gear diameter, center distance, rated power, rated output torque, efficiency and determine whether it will self-lock. Note: d should be used in inches...
The gear motor can develop hp when it turns at 390 rev/min The shaft has a diameter of 112 in. Part A Determine the maximum shear stress in the shaft. Express your answer to three significant figures and include appropriate units "max =1 alue psi SubmitPre Previous Answers Request Answer
Strength of Material
hp when it turns at The gear motor can develop 300 rev/min Tap image to zoom The shaft has a diameter of 1/2 in. Part A Determine the maximum shear stress in the shaft Express your answer to three significant figures and include appropriate units. Tmax = Value Units The 0.75-in.-diameter bent rod is subjected to the load F (330i 475j-250i) ib. 3 ft I ft l ft Tap image to zoom Part A Determine the maximum...
Alt h. 10- The motor delivers 40 hp to the 304 stainless steel shaft while it rotates at 20 Hz. The shaft is supported on smooth bearings at A and B, which allow free rotation of the shaft. The gears C and D fixed to the shaft remove 25 hp and 15 hp, respectively. Determine the diameter of the shaft to the nearest 1/8 in. if the allowable shear stress is 8 ksi and the allowable angle of twist of...
5. The 0.875-in-diameter solid steel shaft shown below is simply supported with bearings at the ends. Loads are applied to arms welded to the shaft at B. Torque is provided through a flexible coupling at A. Determine the bending stress, shear stress and maximum principle stress just to the left and right of point B. por pe 1500 16 500 lb —12” — " B/G 16" 200 lb
The shaft shown below is transmitting 150 hp at o- 1030 steel, quenched and provide simple supports. Gears mounted to the shaft create the transverse forces shown. For L-24 in, do-2.5 in, - 0.125 in, Fi-800 lb, and factor of safety of the shaft with respect to yielding. Use both the von Mises shear stress criteria and compare the results of the two. Recall the power, torque, and spee rotating shaft are related through P- oT, where Pis the power,...
The solid steel shaft DF has a diameter of 25 mm and is supported by smooth bearings at D and E. It is coupled to a motor at F, which delivers 12 kW of power to the shaft while it is turning at 60 rev/s.The gears A, B, and C remove 3 kW, 4 kW, and 5 kW respectively. The shaft is free to turn in its support bearings D and E. (Figure 1) Part A Determine the absolute maximum...
The solid steel shaft DF has a diameter of 25 mm and is supported by smooth bearings at D and E. It is coupled to a motor at F, which delivers 12 kW of power to the shaft while it is turning at 35 rev/s . The gears A B, and C remove 3 kW, 4 kW, and 5 kW respectively The shaft is free to turn in its support bearings D and E (Figure 1) Part A Determine the...
Question 13 5 pts An electric motor delivers 67-HP mechanical power when its shaft turns at 2,832 RPM. What is the shaft torque in N.m? 1 HP = 746 W. Question 14 5 pts Copy of A DC motor supplied from 48 V draws 5 amps and turns at 157 rad/sec when the load torque is 1.45 N.m. What is the efficiency in percent?
Question 3 [181 A 2-start worm transmits 0.75 hp at 600 rev/min to a 36-tooth gear having a transverse diametral pitch of 8. The worm has a normal pressure angle of 20, a pitch diameter of 38 mm, an axial pitch of 25 mm, and a face width of 38 mm. Find the lead, lead angle, worm gear diameter, center distance, rated power, rated output torque, efficiency and determine whether it will self-lock. Note: d should be used in inches...
