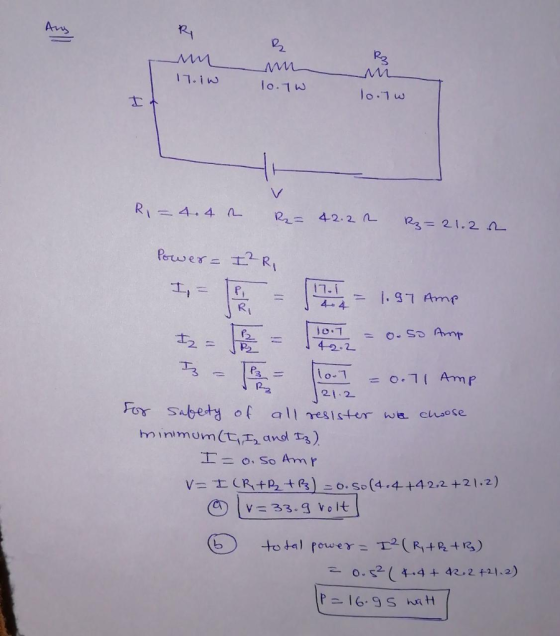

Three resistors are connected
in series across a battery. The value of each resistance and its
maximum power rating are as follows: 4.4Ω and 17.1 W, 42.2Ω and
10.7 W, and 21.2Ω and 10.7 W. (a) What is the greatest voltage that
the battery can have without one of the resistors burning up? (b)
How much power does the battery deliver to the circuit in (a)? any
help please?
