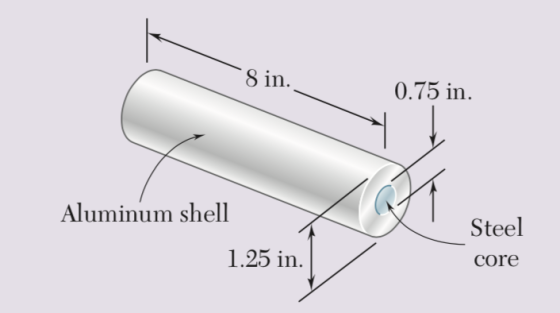

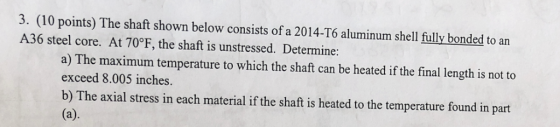

8 in. 0.75 in Aluminum shell Steel 1.25 in core
Homework Answers

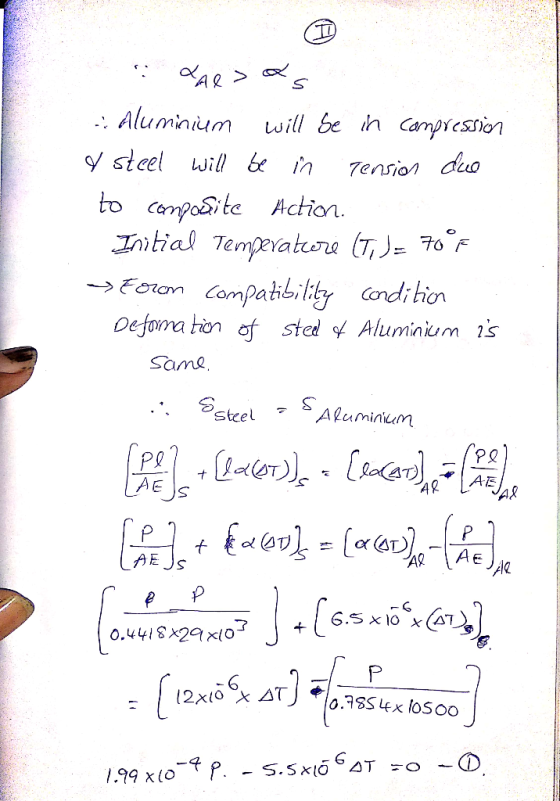

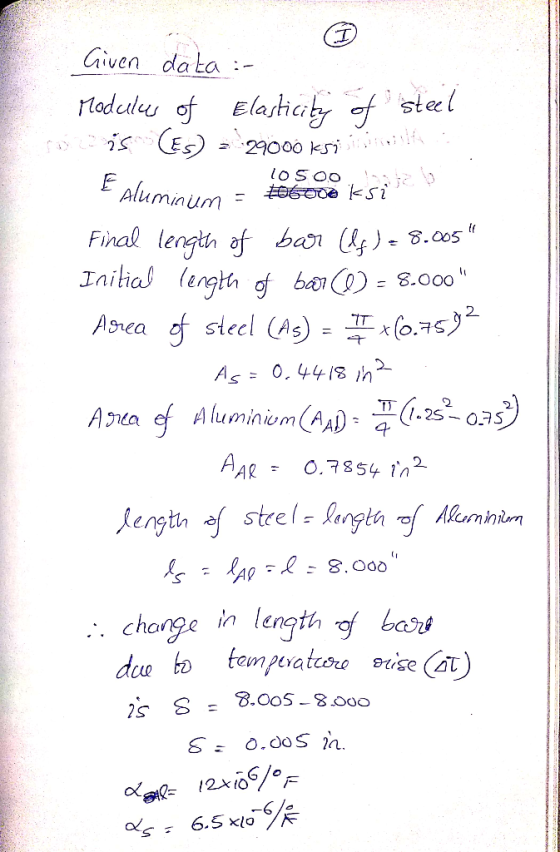

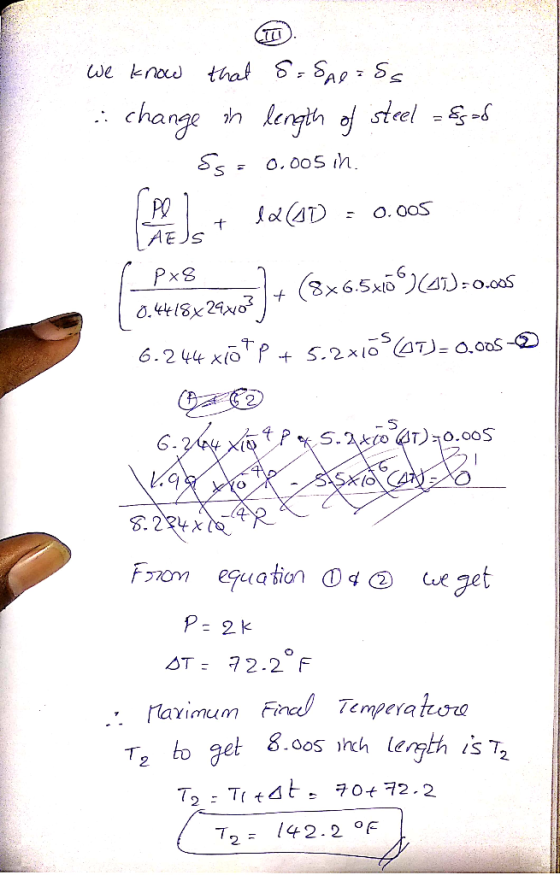

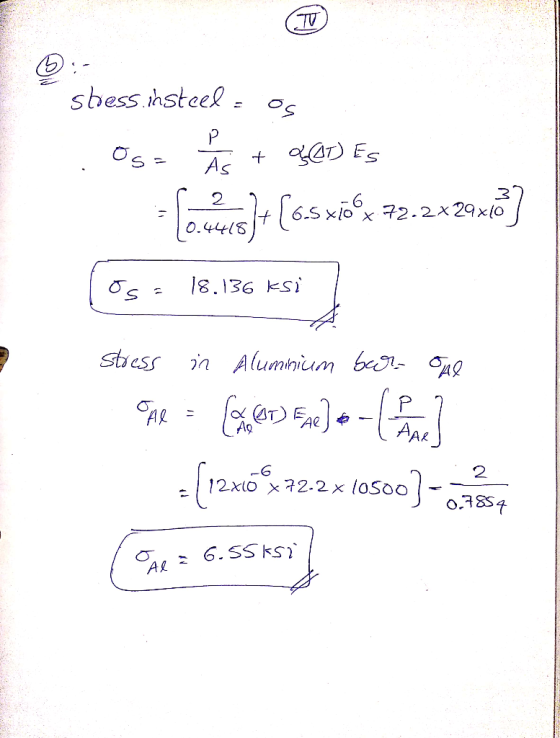

Add Answer to:
If you do not show work and steps I will not rate thumbs up. 3. (10...
Q2) The aluminum shell is fully bonded to the brass core and the assembly is unstressed...
Q2) The aluminum shell is fully bonded to the brass core and the assembly is unstressed at a temperature of 15°C. Considering only axial deformations, determine the stress in the aluminum when the temperature reaches 195°C. 25 mm Brass core E = 105 GPa a = 20.9 x 10 6/C Fig.2 Aluminum shell E = 70 GPa a = 23.6 x 10 5/°C - 60 mm
Do not round intermediate calculations. Give your final answer(s) to three significant figures. The aluminum shell...
Do not round intermediate calculations. Give your final answer(s) to three significant figures. The aluminum shell is fully bonded to the brass core and the assembly is unstressed at a temperature of 15°C. It is known thatE = 105 GPa and α = 20.9 x 10 /°C for the brass core and E = 74 GPa and α = 23.4 × 10-0/0C for the aluminum shell. Considering only axial deformations, determine the stress in the aluminum when the temperature reaches...
Anar -4DN Check E connect 2. The best 11. 00 y bonded to the sel 650...
Anar -4DN Check E connect 2. The best 11. 00 y bonded to the sel 650 F Dm 82 Rotein The largest water operat Hints arrences Bock & Resources 10.00 points The brass shell (a = 11.6 10/°F) is fully bonded to the steel core (as = 6.5 x 10°/°F). Determine the largest allowable increase in temperature if the stress in the steel core is not to exceed 8.2 ksi. (Round the final answer to one decimal place.) Steel Core...
I Solve any five of following questions (show all the necessary steps) and submit until August-01-2020...
I Solve any five of following questions (show all the necessary steps) and submit until August-01-2020 in PDF file format 1. Draw the shear and bending-moment diagrams for the beam and loading shown below and A B 400 mm 400 mm 250 mm 12 kN 8 KN If the shaft has a diameter of 6cm, Determine the A. Shear forces B. Moment of arms C. The absolute maximum Bending stress in the shaft. 2. Two solid cylindrical rods AB and...
3 3. (25 pts.) A system of bars consists of a steel bar (AB) and an...
3 3. (25 pts.) A system of bars consists of a steel bar (AB) and an aluminum bar (BC). Bar AB has a cross-section of 2 inches by 0.75 inches and has a modulus of elasticity of 29000 ksi and a coefficient of thermal expansion of 6.5x10-6 /F. Bar BC has a cross-section of 3 inches by 0.75 inches and has a modulus of elasticity of 10600 ksi and a coefficient of thermal expansion of 12.8x106/F. A gap of 0.03...
Please show all steps and work clearly so I will rate thumbs up. 4) The plate shown below is to be made of A36 stee...
Please show all steps and work clearly so I will rate thumbs up.
4) The plate shown below is to be made of A36 steel and loaded in tension. A factor of safety of 1.5 with respect to yielding is desired. a) Ignoring the hole, determine the maximum allowable load P. b) Determine the maximum diameter hole that could be drilled at A with the plate still successfully supporting the load found in part (a). in. 31 in Ao: led...
please help asap and please show all work. thank you! table 1 data for 7075-T6 below...
please help asap and please show all work. thank you!
table 1 data for 7075-T6 below
table 2 data for 7075-T6 below
i
added the tables. they correspond within the pictures
2) Using data from Table A.1 and A.2, for Aluminum 7075-T6, for given a stress amplitude d+460 MPa a. What are the ELASTIC strain amplitude and the PLASTIC strain amplitude? b. What is the TOTAL strain amplitude? c. Draw accurately to scale, the o-e hysteresis loop for this load...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the ver...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
I need help to write a nice introduction for experiment 6 please ( no hands write ) typing Thank you HEAT TREATMENT OF STEELS EXPERIMENT 6 EXPERIMENT 6 HEAT TREATMENT OF STEELS THEORY The Ef...
I need help to write a nice introduction for experiment 6
please ( no hands write ) typing
Thank you
HEAT TREATMENT OF STEELS EXPERIMENT 6 EXPERIMENT 6 HEAT TREATMENT OF STEELS THEORY The Effect of Cooling Rate One of the most convenient methods for controlling the properties of a given steel, i.e., a steel whose composition is already fixed, consists of austenizing the steel and ten cooling to room temperature at some predetermined rate. A variation of cooling rates...
summatize the following info and break them into differeng key points. write them in yojr own...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
Q2) The aluminum shell is fully bonded to the brass core and the assembly is unstressed at a temperature of 15°C. Considering only axial deformations, determine the stress in the aluminum when the temperature reaches 195°C. 25 mm Brass core E = 105 GPa a = 20.9 x 10 6/C Fig.2 Aluminum shell E = 70 GPa a = 23.6 x 10 5/°C - 60 mm
Do not round intermediate calculations. Give your final answer(s) to three significant figures. The aluminum shell is fully bonded to the brass core and the assembly is unstressed at a temperature of 15°C. It is known thatE = 105 GPa and α = 20.9 x 10 /°C for the brass core and E = 74 GPa and α = 23.4 × 10-0/0C for the aluminum shell. Considering only axial deformations, determine the stress in the aluminum when the temperature reaches...
Anar -4DN Check E connect 2. The best 11. 00 y bonded to the sel 650 F Dm 82 Rotein The largest water operat Hints arrences Bock & Resources 10.00 points The brass shell (a = 11.6 10/°F) is fully bonded to the steel core (as = 6.5 x 10°/°F). Determine the largest allowable increase in temperature if the stress in the steel core is not to exceed 8.2 ksi. (Round the final answer to one decimal place.) Steel Core...
I Solve any five of following questions (show all the necessary steps) and submit until August-01-2020 in PDF file format 1. Draw the shear and bending-moment diagrams for the beam and loading shown below and A B 400 mm 400 mm 250 mm 12 kN 8 KN If the shaft has a diameter of 6cm, Determine the A. Shear forces B. Moment of arms C. The absolute maximum Bending stress in the shaft. 2. Two solid cylindrical rods AB and...
3 3. (25 pts.) A system of bars consists of a steel bar (AB) and an aluminum bar (BC). Bar AB has a cross-section of 2 inches by 0.75 inches and has a modulus of elasticity of 29000 ksi and a coefficient of thermal expansion of 6.5x10-6 /F. Bar BC has a cross-section of 3 inches by 0.75 inches and has a modulus of elasticity of 10600 ksi and a coefficient of thermal expansion of 12.8x106/F. A gap of 0.03...
Please show all steps and work clearly so I will rate thumbs up.
4) The plate shown below is to be made of A36 steel and loaded in tension. A factor of safety of 1.5 with respect to yielding is desired. a) Ignoring the hole, determine the maximum allowable load P. b) Determine the maximum diameter hole that could be drilled at A with the plate still successfully supporting the load found in part (a). in. 31 in Ao: led...
please help asap and please show all work. thank you!
table 1 data for 7075-T6 below
table 2 data for 7075-T6 below
i
added the tables. they correspond within the pictures
2) Using data from Table A.1 and A.2, for Aluminum 7075-T6, for given a stress amplitude d+460 MPa a. What are the ELASTIC strain amplitude and the PLASTIC strain amplitude? b. What is the TOTAL strain amplitude? c. Draw accurately to scale, the o-e hysteresis loop for this load...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
I need help to write a nice introduction for experiment 6
please ( no hands write ) typing
Thank you
HEAT TREATMENT OF STEELS EXPERIMENT 6 EXPERIMENT 6 HEAT TREATMENT OF STEELS THEORY The Effect of Cooling Rate One of the most convenient methods for controlling the properties of a given steel, i.e., a steel whose composition is already fixed, consists of austenizing the steel and ten cooling to room temperature at some predetermined rate. A variation of cooling rates...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
