Ningbo University of Technology test papers III. Construct the bending moment, shear force and axial force...

Question

Question

Ningbo University of Technology test papers III. Construct the bending moment, shear force and axial force diagrams of the fo

engineering Civil-Engineering

Answer 1

Answer #1

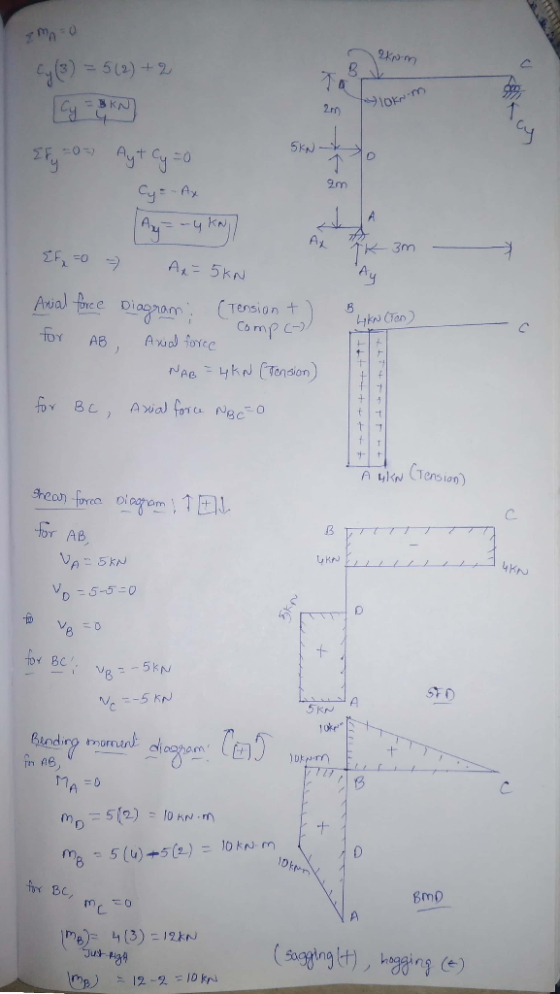

0. 5(2)+2 10 2r B KN 5KN- Ayt y o 9m Cy=-Ay A -4 KN A1 TK 3m A= 5KN plagnam Arial foree D (Tension t Co mpc- Axid foree AB t

Answer 2

Similar Homework Help Questions

Ningbo University of Technology test papers VII. Construct the influence line for the bending moment on...

Ningbo University of Technology test papers VII. Construct the influence line for the bending moment on section C of the following beam due to unit load transmitted via panel points by using tae method. (15 points) P=1 A B C 2m 2m Ningbo University of Technology test papers VII. Construct the influence line for the bending moment on section C of the following beam due to unit load transmitted via panel points by using tae method. (15 points) P=1 A...
Calculate.... 1. Calculate the support reactions and draw the axial force, shear force and bending moment...

Calculate.... 1. Calculate the support reactions and draw the axial force, shear force and bending moment diagrams for the beams and frame shown in Fig. 1, labelling all important values (such as, but not necessarily limited to, locations of points of inflection and values of shears and moments at supports, intersections and discontinuities). For the portal frame in li) assume there are points of inflection in the columns located 2.4m up from the ground and one in the beam midway...
draw axial force, shear force and bending moment diagrams 2m 4'm 30 kN 2m 50 kN...

draw axial force, shear force and bending moment diagrams 2m 4'm 30 kN 2m 50 kN 4m A 3 m 1m -3m 1.5m

Draw the axial force, shear force, and bending moment diagramsfor each member of the frame....

Draw the axial force, shear force, and bending moment diagrams for each member of the frame. Additionally, determine the axial force, shear force, and bending moment considering the section located on member BC, 1m from C
Normal force N, shear force V and bending moment M for the frame shown in the...

Normal force N, shear force V and bending moment M for the frame shown in the figure The method of cutting diagrams (using 8 cutting points in the figure and their calculations draw on paper). please help.course name is building static 1. 15 kN/m 20 kNm 5 +6 T 2 m 3m a 20KN 7 B 2 A 8 HA 30 kN tu 3m . 2 4 3
4. After computing the reaction forces, draw the axial force N, shear force bending moment M...

4. After computing the reaction forces, draw the axial force N, shear force bending moment M diagrams for the frame below. Neatly sketch its quali deflected shape. Rigid connection Between Beam and colima 5k 80kft Pin connection Between Beam sod cohama eB 10 ft 5 ft 5 ft

Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown.

Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Label all significant points on each diagram and identify the maximum moments along with their respective locations. For all answers entered, use the sign convention for shear forces and bending moments. (a) Find the location x and the corresponding bending moment M at the one point between A and B at which the shear force equals zero. (b) Consider the entire beam and determine the maximum positive...
Given: q 2 Tm ki-0.5; k 0.4: 1-2m Construct shear force and bending moment M diagrams

Given: q 2 Tm ki-0.5; k 0.4: 1-2m Construct shear force and bending moment M diagrams
4. For the beam and loading shown, draw the shear force and bending moment diagrams and...

4. For the beam and loading shown, draw the shear force and bending moment diagrams and determine the maximum bending and shear force and their locations. 20 KN 40 KN B D 250 mm |--2.5 m- 3m-4-2 m 80 mm 5. For the beam and loading shown, draw the shear force and bending moment diagrams and determine the maximum bending and shear force and their locations. 50 KN
