Consider a 1.0 km section of a city water line that is 30 cm in diameter....
Consider a 1.0 km section of a city water line that is 30 cm in diameter.

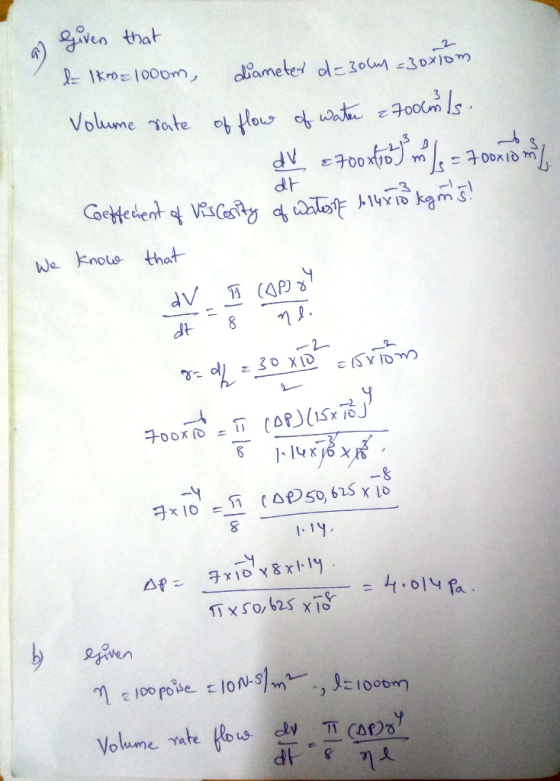

(a) Find the difference in pressure between each end of the pipe, assuming the volume rate
of flow of water is 700 cm.

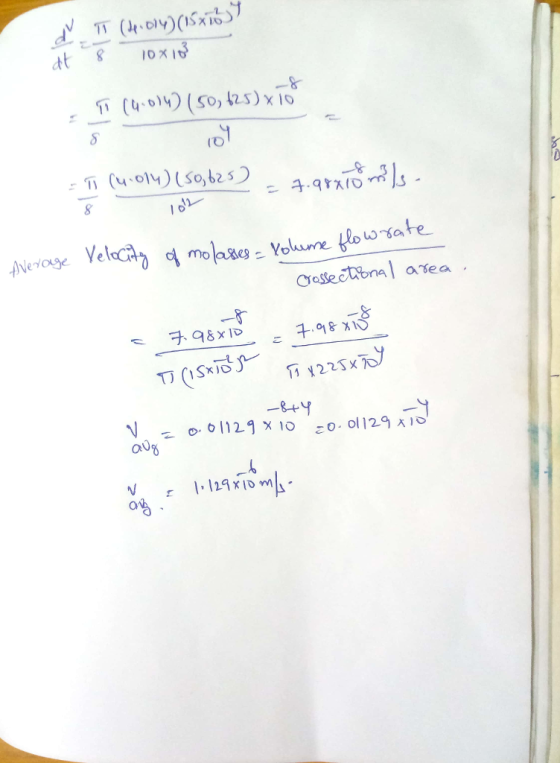

(b) Assuming the same pressure difference found in part (a), find the volume rate of flow,
and average velocity, of molasses, which has a viscosity of around 100 Poise.
Homework Answers
Please check the value of volume flow rate because it's unit is
either m³/s or cm³/s but it is mentioned as cm.I have solved
assuming it as 700cm³/s and if the value is different you may
follow the same procedure to get the solution.
Add Answer to:
Consider a 1.0 km section of a city water line that is 30 cm in diameter....
5.16. Water is flowing in a 3-cm-diameter pipe at an average velocity of Uav 2 m/s....
5.16. Water is flowing in a 3-cm-diameter pipe at an average velocity of Uav 2 m/s. Assuming water density of ρ-1000 kg/m 3 and viscosity μ-10-3 N s'm2, calculate the velocity at the center of the pipe, the shear τ at the wall, and the Reynolds number. Assuming laminar flow, calculate friction coefficient C and pressure drop dp/dx.
A flow nozzle equipped with a differential pressure gage is used to measure the flow rate of water at 10°C (p 9997 kg/m3 and p 1.307 x 10-3 kg/m s) through a 3-cm-diameter horizontal pipe. The nozzle...
A flow nozzle equipped with a differential pressure gage is used to measure the flow rate of water at 10°C (p 9997 kg/m3 and p 1.307 x 10-3 kg/m s) through a 3-cm-diameter horizontal pipe. The nozzle exit diameter is 1.5 cm, and the measured pressure drop is 3.3 kPa. Determine the volume flow rate of water, the average velocity through the pipe, and the head loss 1.5 cm Differential pressure gage -3 m3(s m/s The volume flow rate of...
A 2.5 cm diameter PVC water pipe brings city water into a home at a speed...
A 2.5 cm diameter PVC water pipe brings city water into a home at a speed of 0.038 m/s. The city water pipe is 45 cm below ground and the water outlet outside the house is 0.80 meters above ground. The exit velocity from the hose is 0.12 m/s exiting from a 2.5 cm diameter circular nozzle. What is city water pressure?
Consider a water pipe with a restricted section as illustrated beside. The consumption meter from the...
Consider a water pipe with a restricted section as illustrated
beside. The consumption meter from the utility company indicates a
constant water flow of 480 L/min. You also know that the pipe has a
diameter of 40 cm at the inlet and outlet but only a diameter of 20
cm in the restricted region.
• B) What is the water column height above the restricted
section of the pipe (that’s h2)?
C) What is the highest value (in kPa) of...
1. Water is flowing in a pipe as shown in the figure. The diameter of the...
1. Water is flowing in a pipe as shown in the figure. The diameter of the cross section area A1 is twice the diameter of A2. The velocity of flow v1 is 2.00m/s while h and h2 are 5.00 cm and 30.0 cm, respectively. Take the density of water to be 1000. kg/m3 (a) Find v2 (b) Calculate the pressure difference P P2 between the two ends of the pipe 2
diameter the hole. of how 42. Water moves through a constricted pipe in steady, ideal flow....
diameter the hole. of how 42. Water moves through a constricted pipe in steady, ideal flow. At the lower point shown in Figure P14.42, the pressure is P1.75 X 101 Pa and the pipe diameter is 6.00 cm. At another point y0.250 m higher, the pressure is P2 1.20 X 104 Pa and the pipe diameter is 3.00 cm. Find the speed of flow (a) in the lower section and (b) in the upper section. (c) Find the volume flow...
A 1.0-cm-diameter pipe widens to 2.0 cm, then narrows to 0.50 cm. Liquid flows through the...
A 1.0-cm-diameter pipe widens to 2.0 cm, then narrows to 0.50 cm. Liquid flows through the first segment at a speed of 4.0 m/s. What are the speeds in the second and third segments? What is the volume flow rate through the pipe? If all three parts of the pipe are at the same height and the pressure in the first segment is recorded at 80 kPa, what is the pressure in the second and third segments of the pipe?
Water is delivered to a 4.0 cm diameter fountain head from a 6.9 cm diameter pipe...
Water is delivered to a 4.0 cm diameter fountain head from a 6.9 cm diameter pipe that is 3.4 m below the fountain head and at a pressure of 94 kPa. The fountain head shoots the water straight up into the air. Neglect all losses. a.) What is the velocity of water coming out of the fountain head? Hint: Must use Bernoulli AND Continuity b.) What is the volume flow rate of the water through the fountain head? Hint: Q=vA
Review A water filled pipe has water flowing at v1= 6.20 m/s in a section of...
Review A water filled pipe has water flowing at v1= 6.20 m/s in a section of pipe where the diameter is d1= 19.2 cm and the pressure is known to be P1= 7.00×104 N/m2 above atmospheric pressure. 1- If the pipe carries the water 3.5 meters up hill without any change in diameter, what is the new absolute pressure within the pipe? 2- After flowing up the hill described above, the pipe narrows to 80% of its original radius, what...
H2.3 Consider water at 20°C flowing through a horizontal pipe of diameter 15 cm and length 10 m. ...
H2.3 Consider water at 20°C flowing through a horizontal pipe of diameter 15 cm and length 10 m. The flowrate is 0.021 m3/s and the wall shear stress is 5.76 N/m2. Assume fully developed flow. a. Verify that the flow is turbulent b. Determine the pressure drop [N/m2 c. Estimate the viscous sublayer thickness [mm], i.e., where y+ 5 d. Compare results of part c. with typical pipe roughness (see Table 8.1 in text and comment on implication e. Using...
5.16. Water is flowing in a 3-cm-diameter pipe at an average velocity of Uav 2 m/s. Assuming water density of ρ-1000 kg/m 3 and viscosity μ-10-3 N s'm2, calculate the velocity at the center of the pipe, the shear τ at the wall, and the Reynolds number. Assuming laminar flow, calculate friction coefficient C and pressure drop dp/dx.
A flow nozzle equipped with a differential pressure gage is used to measure the flow rate of water at 10°C (p 9997 kg/m3 and p 1.307 x 10-3 kg/m s) through a 3-cm-diameter horizontal pipe. The nozzle exit diameter is 1.5 cm, and the measured pressure drop is 3.3 kPa. Determine the volume flow rate of water, the average velocity through the pipe, and the head loss 1.5 cm Differential pressure gage -3 m3(s m/s The volume flow rate of...
Consider a water pipe with a restricted section as illustrated
beside. The consumption meter from the utility company indicates a
constant water flow of 480 L/min. You also know that the pipe has a
diameter of 40 cm at the inlet and outlet but only a diameter of 20
cm in the restricted region.
• B) What is the water column height above the restricted
section of the pipe (that’s h2)?
C) What is the highest value (in kPa) of...
1. Water is flowing in a pipe as shown in the figure. The diameter of the cross section area A1 is twice the diameter of A2. The velocity of flow v1 is 2.00m/s while h and h2 are 5.00 cm and 30.0 cm, respectively. Take the density of water to be 1000. kg/m3 (a) Find v2 (b) Calculate the pressure difference P P2 between the two ends of the pipe 2
diameter the hole. of how 42. Water moves through a constricted pipe in steady, ideal flow. At the lower point shown in Figure P14.42, the pressure is P1.75 X 101 Pa and the pipe diameter is 6.00 cm. At another point y0.250 m higher, the pressure is P2 1.20 X 104 Pa and the pipe diameter is 3.00 cm. Find the speed of flow (a) in the lower section and (b) in the upper section. (c) Find the volume flow...
H2.3 Consider water at 20°C flowing through a horizontal pipe of diameter 15 cm and length 10 m. The flowrate is 0.021 m3/s and the wall shear stress is 5.76 N/m2. Assume fully developed flow. a. Verify that the flow is turbulent b. Determine the pressure drop [N/m2 c. Estimate the viscous sublayer thickness [mm], i.e., where y+ 5 d. Compare results of part c. with typical pipe roughness (see Table 8.1 in text and comment on implication e. Using...
