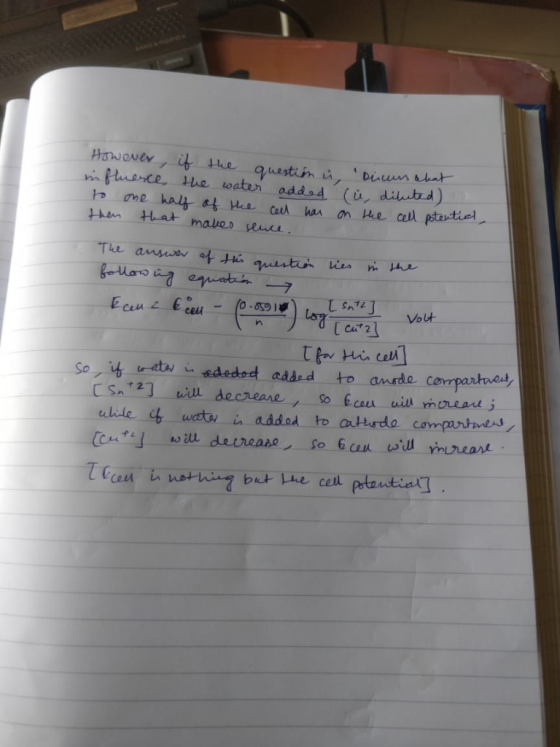

discuss what influence the water as one half of the cell has on the cell potential....

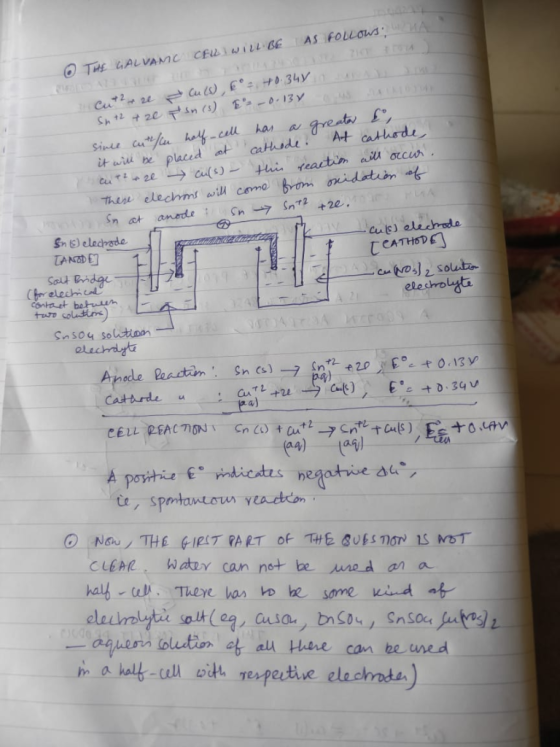

discuss what influence the water as one half of the cell has on the cell potential. Include a detailed diagram of the galvanic cells. Use SnSO4 and Cu(NO3)2, Cu and Sn.
Homework Answers
Add Answer to:
discuss what influence the water as one half of the cell has on the cell potential....
In a galvanic cell, one half-cell consists of a lead strip dipped into a 1.00 M...
In a galvanic cell, one half-cell consists of a lead strip dipped into a 1.00 M solution of Pb(NO3)2. In the second half-cell, solid uranium is in contact with a 1.00 M solution of U(NO3)3. Pb is observed to plate out as the galvanic cell operates, and the initial cell voltage is measured to be 1.672 V at 25°C. (a) Write balanced equations for the half-reactions at the anode and the cathode. Show electrons as e-. Use the smallest integer...
In a galvanic cell, one half-cell consists of a cobalt strip dipped into a 1.00 M...
In a galvanic cell, one half-cell consists of a cobalt strip dipped into a 1.00 M solution of Co(NO3)2. In the second half-cell, solid niobium is in contact with a 1.00 M solution of Nb(NO3)3. Co is observed to plate out as the galvanic cell operates, and the initial cell voltage is measured to be 0.819 V at 25°C. (a) Write balanced equations for the half-reactions at the anode and the cathode. Show electrons as e-. Use the smallest integer...
Consider a galvanic cell that contains a Zn metal electrode and a 0.10 M Zn(NO3)2 solution...
Consider a galvanic cell that contains a Zn metal electrode and a 0.10 M Zn(NO3)2 solution in one half-cell and a Sn metal electrode and a 0.10 M Sn(NO3)2 solution in the other half-cell. If the measured Ecell value is +0.60 V and the Zn2+/Zn reduction potential is assumed to be -0.79 V, what is the Sn2+/Sn reduction potential? Show all work
please show all work. thank you 4. Consider an electrochemical cell (a.k.a. galvanic cell or voltaic...
please show all work. thank you
4. Consider an electrochemical cell (a.k.a. galvanic cell or voltaic cell) with Ag(s) and 1.0 M AgNO3(aq) in one compartment and Cu(s) and 1.0 M Cu(NO3)2(aq) in the other compartment. Write the reactions and calculate the standard state cell potential at 298 K. E cathode = a. Reduction (cathode): Eanode = b. Oxidation (anode): Eºcell = C. Net (overall cell reaction): 5. Consider a galvanic cell with Sn(s) and 1.0 M Sn(NO3)2(aq) in one...
A concentration cell consists of two Sn/Sn2+ half- cells. The cell has a potential of 0.10...
A concentration cell consists of two Sn/Sn2+ half- cells. The cell has a potential of 0.10 V at 25°C. Part A What is the ratio of the Sn2+ concentrations in the two half-cells? Express your answer using two significant figures. View Avallable Hint(s) 10 ΑΣΦ ? [ Sna" (ex) [Sna(red) Submit
2. What is the initial cell potential for a galvanic cell consisting of a IM Zn2+...
2. What is the initial cell potential for a galvanic cell consisting of a IM Zn2+ solution with Zn solid as the anode and 1 M Cu?solution with Cu metal as the cathode? The electrodes are connected through a volt meter and the compartments are connected through a salt bridge. 3. What is the initial cell potential for a galvanic cell consisting of a 0.2 M Zn2+ solution with Zn solid as the anode and 0.01 M Cu"* solution with...
A voltaic cell consists of two half-cells. One half-cell contains a chromium electrode immersed in 1.00...
A voltaic cell consists of two half-cells. One half-cell contains a chromium electrode immersed in 1.00 M Cr(NO3)3 solution. The second half-cell contains a cobalt electrode immersed in 1.00 M Co(NO3)2 solution. Cobalt plates out on the cobalt electrode as the voltaic cell runs. The beginning voltage of the cell is +0.467 V at 25°C. The standard electrode potential (standard reduction potential) of chromium at 25°C is −0.744 V. (a) Write a balanced half-reaction equation for the reaction occurring at...
Sn(s)+Cu2+(aq)→Sn2+(aq)+Cu(s) What is the standard potential, E∘cell, for this galvanic cell? Use the given standard reduction...
Sn(s)+Cu2+(aq)→Sn2+(aq)+Cu(s) What is the standard potential, E∘cell, for this galvanic cell? Use the given standard reduction potentials in your calculation as appropriate.
In part A of Expt. 10, we were going to construct some simple galvanic cells. The...
In part A of Expt. 10, we were going to construct some simple galvanic cells. The first cell to be constructed consisted of Cu and Pb electrodes placed in 0.10 M solutions of Cu(NO3)2 and Pb(NO3)2 . Which electrode do you expect to be the anode and which would be the cathode? Explain. Can a galvanic cell have a negative cell potential? What should you do if you measured a negative cell potential when the two half-cells in a galvanic...
In a galvanic cell, one half-cell consists of a nickel strip dipped into a 1.00 M...
In a galvanic cell, one half-cell consists of a nickel strip dipped into a 1.00 M solution of Ni(NO3)2. In the second half-cell, solid manganese is in contact with a 1.00 M solution of Mn(NO3)2. Ni is observed to plate out as the galvanic cell operates, and the initial cell voltage is measured to be 0.935 V at 25°C. (a) Write balanced equations for the half-reactions at the anode and the cathode. Show electrons as e-. Use the smallest integer...
please show all work. thank you
4. Consider an electrochemical cell (a.k.a. galvanic cell or voltaic cell) with Ag(s) and 1.0 M AgNO3(aq) in one compartment and Cu(s) and 1.0 M Cu(NO3)2(aq) in the other compartment. Write the reactions and calculate the standard state cell potential at 298 K. E cathode = a. Reduction (cathode): Eanode = b. Oxidation (anode): Eºcell = C. Net (overall cell reaction): 5. Consider a galvanic cell with Sn(s) and 1.0 M Sn(NO3)2(aq) in one...
A concentration cell consists of two Sn/Sn2+ half- cells. The cell has a potential of 0.10 V at 25°C. Part A What is the ratio of the Sn2+ concentrations in the two half-cells? Express your answer using two significant figures. View Avallable Hint(s) 10 ΑΣΦ ? [ Sna" (ex) [Sna(red) Submit
2. What is the initial cell potential for a galvanic cell consisting of a IM Zn2+ solution with Zn solid as the anode and 1 M Cu?solution with Cu metal as the cathode? The electrodes are connected through a volt meter and the compartments are connected through a salt bridge. 3. What is the initial cell potential for a galvanic cell consisting of a 0.2 M Zn2+ solution with Zn solid as the anode and 0.01 M Cu"* solution with...
