An important reaction in combustion processes is the gas phase oxidation of CO, a poisonous gas...
An important reaction in combustion processes is the gas phase oxidation of CO, a poisonous gas and pollutant CO+1/2O2=CO2
Delta rxn H(298k)=-283 kj/mol; Delta rxn G(298k)=-257.2 kj/mol

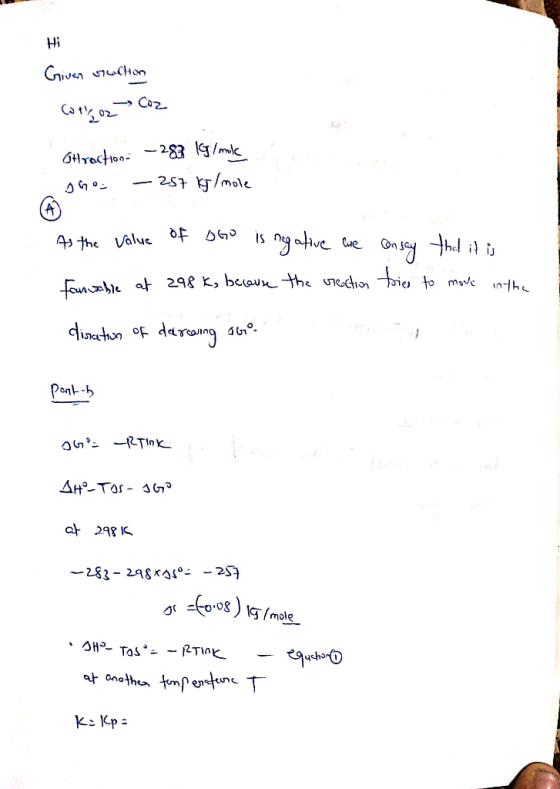

A.) Is the reaction favored at 298k? Explain

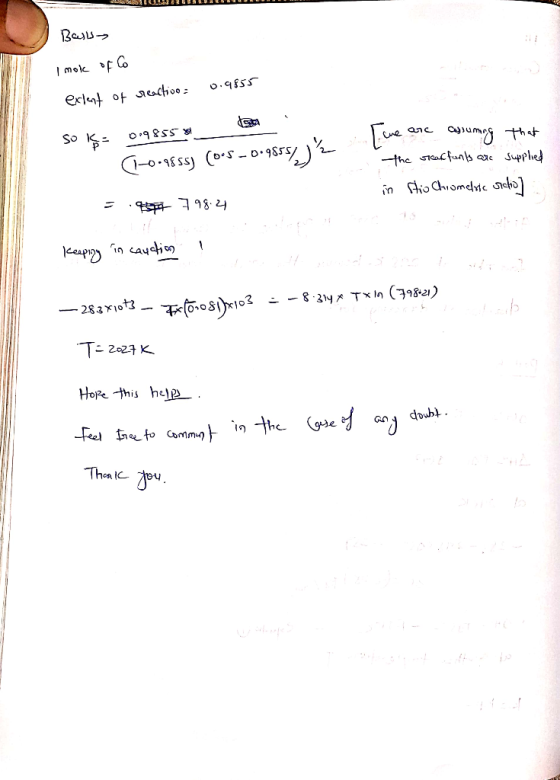

B.) How will the molar extent of reaction change as the temperature is increased at constant pressure? Estimate the temperature at which the molar extent of reaction is 0.9855 at 1 Bar total pressure. Assume ideal gases and heat of reaction to be independent of temperature.
Homework Answers
Add Answer to:
An important reaction in combustion processes is the gas phase oxidation of CO, a poisonous gas...
Q1. (23 pts total) A wide range of chemical substances can pollute the air. NO,, mainly...
Q1. (23 pts total) A wide range of chemical substances can pollute the air. NO,, mainly includes NO and NO, is a type of major pollutant generated from road traffic and fossil fuel combustion processes. NO, (g) may react with another pollutant in the combustion engine, co(g), and regenerate NO(g). The reaction is described below: NO (g) + CO(g) → NO(g) + CO, (g) a) (5 pts) If the activation energy for this process is 132 kJ/mol, how many times...
• For the gas phase dimerization reaction 2 NO2 ⇔ N2O4, use Table 2C.5 to calculate...
• For the gas phase dimerization reaction 2 NO2 ⇔ N2O4, use Table 2C.5 to calculate Kp at 298 and 600 K. (Kp=0.00759) ΔrG0(N2O4) = 97.89 kJ/mol; ΔrG0(NO2) = 51.31 kJ/mol; • Estimate the equilibrium constant for the total oxidation of CO to CO2 at 1000K. ΔrH0 (CO2) = -393.51 kJ/mol; ΔrH0 (CO) = -110.53 kJ/mol (Kp= 1.84 x 1010) • • • • • •
Nitrogen oxide, NO, is a common pollutant produced by the reaction of nitrogen and oxygen gas....
Nitrogen oxide, NO, is a common pollutant produced by the reaction of nitrogen and oxygen gas. Since these gases are several major components of air, nitrogen oxide forms when air is heated in furnaces, engines and other high temperature combustion reactions. Given the standard enthalpy of formation for NO (g) = 90.25 kJ / mole and using the absolute entropies shown in the table below, the free energy change for the reaction at 25.00 ºC can be calculated, and equals...
For the gas-phase reaction 2SO_2 + O_2 doubleheadarrow 2SO_3, observed mole fractions for a certain equilibrium...
For the gas-phase reaction 2SO_2 + O_2 doubleheadarrow 2SO_3, observed mole fractions for a certain equilibrium mixture at 1000 K and 1767 torr are X_SO_2 = 0.310, X_O2= 0.190, and X_SO3= 0.500. Find K degree p and Delta G degree at 1000 K; assuming ideal gases, Find K_P at 1000 K. Find K degree C at 1000 K. K degree_P, and K degree_C have no units. Please enter them in 3 significant figures, e g. if the answer is 2.1,...
1. (14 pts) Consider the following unbalanced gas-phase exothermic reaction, N2 + O2 = NO2 This...
1. (14 pts) Consider the following unbalanced gas-phase exothermic reaction, N2 + O2 = NO2 This is a reaction involved in the production of smog. The heat of formation of NO2 from the elements is A He = 33.18 kJ/mol. This is an endothermic process. The 4, Gof NO2 is 51.31 kJ/mol. a) Balance the reaction. b) Calculate the equilibrium constant at room temperature (300 K). c) If we assume that in our atmosphere the partial pressure of oxygen is...
2) Consider the combustion reaction of ethylene at 25 °C and 1 bar, but in the...
2) Consider the combustion reaction of ethylene at 25 °C and 1 bar, but in the case that H20 is produced as a gas rather than a liquid: C2Halg)+3 O2(g)>2 CO2(g) + 2 H20(g) What is the standard enthalpy of the reaction? Information that may be useful for the calculation is given below (at the same temperature and pressure): C2H4(g)3 O2(g) -»2 CO2(g)+ 2 H2O(liq) AtusH(H20) 6.008 kJ mol-; AvaphH°(H2O) = 44.016 kJ mol-; AtH°(H20,g) = -241.82 kJ mol- (A)-1410.0...
1. [Suggested time 20-30 minutes] The reverse water gas shift (WGS) reaction occurs during many high temperature processes involving hydrocarbons and typically reaches equilibrium: coag) + H2(g)...
1. [Suggested time 20-30 minutes] The reverse water gas shift (WGS) reaction occurs during many high temperature processes involving hydrocarbons and typically reaches equilibrium: coag) + H2(g) 근 COe) + H2O(g) AG 298K (kJ/mol) AH1298K (kJ/mol) -137.66 -229.25 -395.51 0.00 -110.84 -242.52 -394.64 0.00 H20 (g) CO2(8) o lin 2 [3 points] Determine the standard Gibbs energy change for this reaction at 25°C b) c) [10 points] Calculate the equilibrium composition (molar fractions) for an isothermal reaction carried out at...
A gas phase reaction takes place in a syringe at a constant temperature and pressure. If...
A gas phase reaction takes place in a syringe at a constant temperature and pressure. If the initial volume before reaction is 40 mL and the final volume after the reaction is complete is 70 mL, which of the following reactions took place? (Note: You can assume that you start with stoichiometric amounts of the reactants, the reaction goes to completion and that the gases behave ideally.) a. 2SO2(g) + O2(g)-->2SO3(g) b. 4PH3(g)-->P4(g) + 6H2(g) c. N2(g) + 3H2(g)-->2NH3(g) d....
how do i do these two questions? Assume that the reaction: CO(g) + H2O(g) = CO2(g)...
how do i do these two questions?
Assume that the reaction: CO(g) + H2O(g) = CO2(g) + H2(g) occurs in an ideal mixture of ideal gases. At 700.K, K=3.61. At this temperature, AG° equals: Select one: a.-7.47 kJ b. Oku 0 C. -3.74 kJ o d. 7.47 kJ -200 kJ. For the following reaction producing 1 mol of oxygen gas at a particular temperature, AH NO(g) +O3(g) → NO2(g) + O2(g) The activation energy is 11 kJ/mol. What is the...
The irreversible gas phase rxn, A=> B+C is performed in an adiabatic, 800‐liter PFR with a rate...
The irreversible gas phase rxn, A=> B+C is performed in
an adiabatic, 800‐liter PFR with a rate constant, k, as
below: k=60*exp(‐5000/T) s‐1 The feed is pure A at 15 bar and 450 K
with a volumetric flow rate of 1.956 L/s. The heat of
rxnis ‐12 kJ/mol(independent of temperature), heat
capacities are CPA= 40 J/mol/K, CPB= 15 J/mol/K, and CPC
= 25 J/mol/K. The reaction is operated at constant
pressure Plot (a) FAand FBversus reactor volume (b) Temperature
versus reactor volume (c) volumetric flow...
Q1. (23 pts total) A wide range of chemical substances can pollute the air. NO,, mainly includes NO and NO, is a type of major pollutant generated from road traffic and fossil fuel combustion processes. NO, (g) may react with another pollutant in the combustion engine, co(g), and regenerate NO(g). The reaction is described below: NO (g) + CO(g) → NO(g) + CO, (g) a) (5 pts) If the activation energy for this process is 132 kJ/mol, how many times...
For the gas-phase reaction 2SO_2 + O_2 doubleheadarrow 2SO_3, observed mole fractions for a certain equilibrium mixture at 1000 K and 1767 torr are X_SO_2 = 0.310, X_O2= 0.190, and X_SO3= 0.500. Find K degree p and Delta G degree at 1000 K; assuming ideal gases, Find K_P at 1000 K. Find K degree C at 1000 K. K degree_P, and K degree_C have no units. Please enter them in 3 significant figures, e g. if the answer is 2.1,...
1. (14 pts) Consider the following unbalanced gas-phase exothermic reaction, N2 + O2 = NO2 This is a reaction involved in the production of smog. The heat of formation of NO2 from the elements is A He = 33.18 kJ/mol. This is an endothermic process. The 4, Gof NO2 is 51.31 kJ/mol. a) Balance the reaction. b) Calculate the equilibrium constant at room temperature (300 K). c) If we assume that in our atmosphere the partial pressure of oxygen is...
2) Consider the combustion reaction of ethylene at 25 °C and 1 bar, but in the case that H20 is produced as a gas rather than a liquid: C2Halg)+3 O2(g)>2 CO2(g) + 2 H20(g) What is the standard enthalpy of the reaction? Information that may be useful for the calculation is given below (at the same temperature and pressure): C2H4(g)3 O2(g) -»2 CO2(g)+ 2 H2O(liq) AtusH(H20) 6.008 kJ mol-; AvaphH°(H2O) = 44.016 kJ mol-; AtH°(H20,g) = -241.82 kJ mol- (A)-1410.0...
1. [Suggested time 20-30 minutes] The reverse water gas shift (WGS) reaction occurs during many high temperature processes involving hydrocarbons and typically reaches equilibrium: coag) + H2(g) 근 COe) + H2O(g) AG 298K (kJ/mol) AH1298K (kJ/mol) -137.66 -229.25 -395.51 0.00 -110.84 -242.52 -394.64 0.00 H20 (g) CO2(8) o lin 2 [3 points] Determine the standard Gibbs energy change for this reaction at 25°C b) c) [10 points] Calculate the equilibrium composition (molar fractions) for an isothermal reaction carried out at...
how do i do these two questions?
Assume that the reaction: CO(g) + H2O(g) = CO2(g) + H2(g) occurs in an ideal mixture of ideal gases. At 700.K, K=3.61. At this temperature, AG° equals: Select one: a.-7.47 kJ b. Oku 0 C. -3.74 kJ o d. 7.47 kJ -200 kJ. For the following reaction producing 1 mol of oxygen gas at a particular temperature, AH NO(g) +O3(g) → NO2(g) + O2(g) The activation energy is 11 kJ/mol. What is the...
The irreversible gas phase rxn, A=> B+C is performed in
an adiabatic, 800‐liter PFR with a rate constant, k, as
below: k=60*exp(‐5000/T) s‐1 The feed is pure A at 15 bar and 450 K
with a volumetric flow rate of 1.956 L/s. The heat of
rxnis ‐12 kJ/mol(independent of temperature), heat
capacities are CPA= 40 J/mol/K, CPB= 15 J/mol/K, and CPC
= 25 J/mol/K. The reaction is operated at constant
pressure Plot (a) FAand FBversus reactor volume (b) Temperature
versus reactor volume (c) volumetric flow...
