a) If you have five capacitors with capacitances 0.6 × 10-6 F, 2.3 × 10-6 F,...
a) If you have five capacitors with capacitances 0.6 × 10-6 F, 2.3 × 10-6 F, 3.7 × 10-6 F, and two 8.5 × 10-6 F in series. What is the equivalent capacitance of all five?
C = F
b) Initially the capacitors are uncharged. Now a 9 V battery is attached to the system. How much charge is on the positive plate of the 3.7 × 10-6 F capacitor?
Q = C
c)What is the potential difference between the plates of the 3.7 × 10-6 F capacitor?
V = V
d) How much energy is stored in the entire capacitor system?
PE = J
e) If you have five capacitors with capacitances 0.6 × 10-6 F, 2.3 × 10-6 F , 3.7 × 10-6 F, and two 8.5 × 10-6 F in parallel. What is the equivalent capacitance of all five?
C = F
f) If one attaches a 9 V battery to the system, how much charge is on the positive plate of the 3.7 × 10-6 F capacitor?
Q = C
g)What is the potential difference between the plates of the 3.7 × 10-6 F capacitor?
V = V
h) How much energy is stored in the entire capacitor system?
PE = J

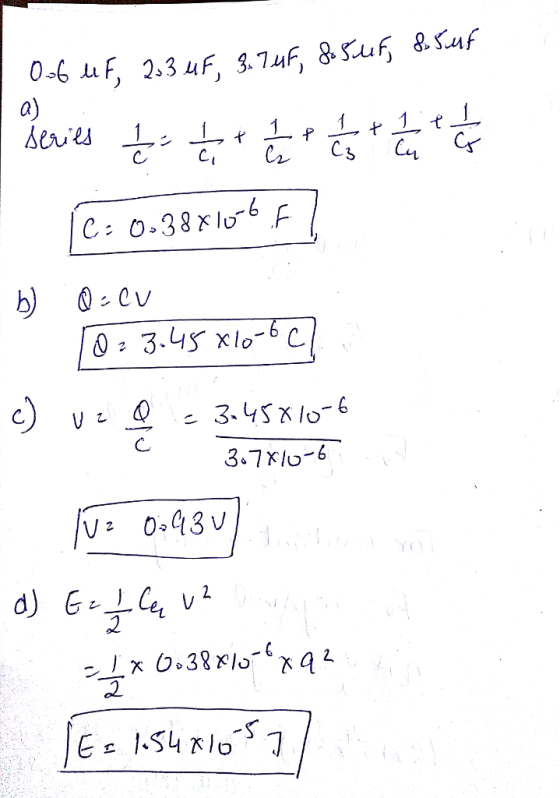

Homework Answers
Add Answer to:
a) If you have five capacitors with capacitances 0.6 × 10-6 F, 2.3 × 10-6 F,...
Capacitors in Series and Parallel a) If you have five capacitors with capacitances 0.8 x 10-6...
Capacitors in Series and Parallel a) If you have five capacitors with capacitances 0.8 x 10-6 F, 2.7 x 10-6 F, 5.7 х 10-6 F, and two 9.8 x 10-6 F in series, what is the equivalent capacitance of all five? C-10 Reset Enter 0 NO HELP: One over the equivalent capacitance equals the sum of one over each of the individual capacitances b) Initially the capacitors are uncharged. Now a 13 V battery is attached to the system. How...
The figure shows a circuit with an ideal battery and set of capacitors. The battery has...
The figure shows a circuit with an ideal battery and set of
capacitors. The battery has an emf
=12 V. The capacitors have capacitances C1 = C2 = C3 = C4 = 6
nF.
(a) What is the equivalent capacitance of the entire network of
capacitors?
(b) What is the electrical energy stored in the capacitor with
capacitance C2?
We were unable to transcribe this imageProblem 6 C. The figure shows a circuit with an ideal battery and set of...
Five uncharged capacitors with equal capacitances are combined in parallel. The combination is connected to a...
Five uncharged capacitors with equal capacitances are combined in parallel. The combination is connected to a 5.25 V battery, which charges the capacitors. The charging process involves 0.000243 C of charge moving through the battery. Find the capacitance of each capacitor. capacitance:
in the pure a 21 V battery is connected cross capacitors of capacitances = =3.5 capacitance...
in the pure a 21 V battery is connected cross capacitors of capacitances = =3.5 capacitance of the capacitors and to the charge stored by C? What are cl V, and Id of capacitar 3? and G C -206, 20 :55 What are the equivalent of capacitor 1. del V, and I) of capacitor 2 and and the
Two capacitors with capacitances of 2.0 μF and 0.40 μF, respectively, are connected in series. The...
Two capacitors with capacitances of 2.0 μF and 0.40 μF, respectively, are connected in series. The system is connected to a 50-V battery. What electrical potential energy is stored in the 2.0-μF capacitor? Selected Answer: [None Given] Answers: a. 5.0E–4 J b. 2.5E–3 J c. 8.3E–5 J d. 6.9E–5 J e. 1.4E–5 J The quantity of electrical potential, the volt, is dimensionally equivalent to: Increasing the voltage across the two plates of a capacitor will produce what effect on the...
In the figure a 27 V battery is connected across capacitors of capacitances C1 = C6...
In the figure a 27 V battery is connected across capacitors of
capacitances C1 = C6 = 5.0
μF and C3 = C5 =
1.5C2 = 1.5C4 = 6.0 μF.
What are (a) the equivalent capacitance
Ceq of the capacitors and (b)
the charge stored by Ceq? What are
(c) V1 and
(d) q1 of capacitor 1,
(e) V2 and
(f) q2 of capacitor 2, and
(g) V3 and
(h) q3 of capacitor 3?
C HHH
In the figure below, a 18.0 V battery is connected across capacitors of capacitances with the...
In the figure below, a 18.0 V battery is connected across capacitors of capacitances with the following values. C_1 = C_6 = 2.90 mu F C_3 = C_5 = 3.70 mu F C_2 = C_4 = 1.85 mu F (a) What is the equivalent capacitance C_eq? mu F (b) What is the charge stored by C_eq? C (c) What is V_1 of capacitor 1? V (d) What is q_1 of capacitor 1? C (e What is V_2 of capacitor 2?...
In Fig. 25-31, a 20.0 V battery is connected across capacitors of capacitances C_1 = C_6...
In Fig. 25-31, a 20.0 V battery is connected across capacitors of capacitances C_1 = C_6 = 3.00 mu F and C_3 = C_5 = 2.00C_2 = 2.00 C_4 = 4.00 mu F. What are (a) the equivalent capacitance C_eq of the capacitors and (b) the charge stored by C_eq the What are (c) V_1 and (d) q_1 of capacitor 1, (e) V_2 and (f) q_2 of capacitor 2, and (g) V_3 and (h) q_3 of capacitor 3?
COI) (15 pts) Two capacitors, C and C2, are connected in series to a 60 V battery as shown in the sketch in part b). The capacitance of C, is 1.0 x10 F, and it carries a charge of2.0 10 C. R-100 ohms...
COI) (15 pts) Two capacitors, C and C2, are connected in series to a 60 V battery as shown in the sketch in part b). The capacitance of C, is 1.0 x10 F, and it carries a charge of2.0 10 C. R-100 ohms. Assume that no current is flowing through the circuit. a) () Find the potential across C b) (3) Find fE dA for the surface S, shown in the sketch below. The surface encloses one plate of capacitor...
In the figure a 23 V battery is connected across capacitors of capacitances C1 = C6 = 5.0 μF and C3 = C5=...
In the figure a 23 V battery is connected across
capacitors of
capacitances C1 = C6 =
5.0 μF
and C3 = C5=
2.0C2 = 2.0C4 = 5.0
μF. What are (a) the equivalent
capacitance Ceq of the capacitors
and (b) the charge stored
by Ceq? What
are (c) V1 and (d) q1 of
capacitor
1,(e) V2 and (f) q2 of
capacitor 2,
and (g) V3 and (h) q3 of
capacitor 3?
Capacitors in Series and Parallel a) If you have five capacitors with capacitances 0.8 x 10-6 F, 2.7 x 10-6 F, 5.7 х 10-6 F, and two 9.8 x 10-6 F in series, what is the equivalent capacitance of all five? C-10 Reset Enter 0 NO HELP: One over the equivalent capacitance equals the sum of one over each of the individual capacitances b) Initially the capacitors are uncharged. Now a 13 V battery is attached to the system. How...
The figure shows a circuit with an ideal battery and set of
capacitors. The battery has an emf
=12 V. The capacitors have capacitances C1 = C2 = C3 = C4 = 6
nF.
(a) What is the equivalent capacitance of the entire network of
capacitors?
(b) What is the electrical energy stored in the capacitor with
capacitance C2?
We were unable to transcribe this imageProblem 6 C. The figure shows a circuit with an ideal battery and set of...
in the pure a 21 V battery is connected cross capacitors of capacitances = =3.5 capacitance of the capacitors and to the charge stored by C? What are cl V, and Id of capacitar 3? and G C -206, 20 :55 What are the equivalent of capacitor 1. del V, and I) of capacitor 2 and and the
In the figure a 27 V battery is connected across capacitors of
capacitances C1 = C6 = 5.0
μF and C3 = C5 =
1.5C2 = 1.5C4 = 6.0 μF.
What are (a) the equivalent capacitance
Ceq of the capacitors and (b)
the charge stored by Ceq? What are
(c) V1 and
(d) q1 of capacitor 1,
(e) V2 and
(f) q2 of capacitor 2, and
(g) V3 and
(h) q3 of capacitor 3?
C HHH
In the figure below, a 18.0 V battery is connected across capacitors of capacitances with the following values. C_1 = C_6 = 2.90 mu F C_3 = C_5 = 3.70 mu F C_2 = C_4 = 1.85 mu F (a) What is the equivalent capacitance C_eq? mu F (b) What is the charge stored by C_eq? C (c) What is V_1 of capacitor 1? V (d) What is q_1 of capacitor 1? C (e What is V_2 of capacitor 2?...
In Fig. 25-31, a 20.0 V battery is connected across capacitors of capacitances C_1 = C_6 = 3.00 mu F and C_3 = C_5 = 2.00C_2 = 2.00 C_4 = 4.00 mu F. What are (a) the equivalent capacitance C_eq of the capacitors and (b) the charge stored by C_eq the What are (c) V_1 and (d) q_1 of capacitor 1, (e) V_2 and (f) q_2 of capacitor 2, and (g) V_3 and (h) q_3 of capacitor 3?
COI) (15 pts) Two capacitors, C and C2, are connected in series to a 60 V battery as shown in the sketch in part b). The capacitance of C, is 1.0 x10 F, and it carries a charge of2.0 10 C. R-100 ohms. Assume that no current is flowing through the circuit. a) () Find the potential across C b) (3) Find fE dA for the surface S, shown in the sketch below. The surface encloses one plate of capacitor...
In the figure a 23 V battery is connected across
capacitors of
capacitances C1 = C6 =
5.0 μF
and C3 = C5=
2.0C2 = 2.0C4 = 5.0
μF. What are (a) the equivalent
capacitance Ceq of the capacitors
and (b) the charge stored
by Ceq? What
are (c) V1 and (d) q1 of
capacitor
1,(e) V2 and (f) q2 of
capacitor 2,
and (g) V3 and (h) q3 of
capacitor 3?
