Homework Answers
Note that electric fields of positive charges point AWAY FROM THE POSITIVE CHARGE.
Also, electric fields from negative charges point INTO THE NEGATIVE CHARGE.

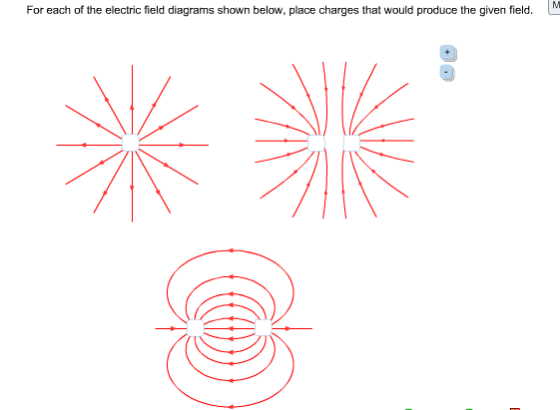

Thus, ON THE UPPER LEFT FIGURE: a positive charge [answer]
ON THE UPPER RIGHT FIGURE: two negative charges [answer]
ON THE BOTTOM FIGURE: a negative charge on the left, a positive charge on the right. [ANSWER]
