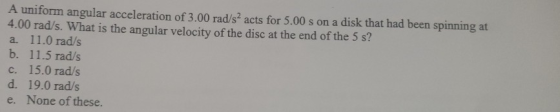

A uniform angular acceleration of 3.00 rad/s2 acts for 5.00 s on a disk that had...
A platform is rotating with an angular speed of 3.00 rad/s and an angular acceleration of 11.0 rad/s2. At a point on the platform that is 1.96 m from the axis of rotation, what is the magnitude of the total acceleration a?
A turntable rotates with a constant 2.25 rad/s2 angular acceleration. After 3.00 s it has rotated through an angle of 30.0 rad. What was the angular velocity of the wheel at the beginning of the 3.00-s interval?
A disc of moment of inertia 3.00 kgm2 is rotating with angular velocity 2.00 rad/s about an axis perpendicular to its plane and passing through its centre. Another disk (which is not rotating) of moment of inertia 5.00 kgm2 is gently placed over it. Finally, the two discs rotate with the same angular velocity around the common rotational axis. The new angular velocity of the combined disc (in rad/s) is ?
A disk starts spinning from rest at t=0, with a constant angular acceleration of 1.2 rad/s2. The radius of the disk is 0.4 m. Consider a bug clinging to the outer edge of the disk. What is the magnitude of the acceleration felt by this bug at t=1 s? Choose the closest answer.
A 36.2-cm diameter disk rotates with a constant angular acceleration of 2.8 rad/s2. It starts from rest at t = 0, and a line drawn from the center of the disk to a point P on the rim of the disk makes an angle of 57.3° with the positive x-axis at this time. (a) Find the angular speed of the wheel at t = 2.30 s. rad/s (b) Find the linear velocity and tangential acceleration of P at t =...
disk rolls without slipping such that it has an angular acceleration of a 8 rad/s2 and angular velocity of w 32 rad/s at the instant shown. Assume point A lies on the periphery of the disk, 150 mm from C. (Figure 1) Figure 1 of 1 500 mm 150 mm 400 mm
A wheel, starting from rest, rotates with a constant angular acceleration of 1.70 rad/s2. During a certain 3.00 s interval, it turns through 16.1 rad. (a) How long had the wheel been turning before the start of the 3.00 s interval? (b) What was the angular velocity of the wheel at the start of the 3.00 s interval?
A 47.4-cm diameter disk rotates with a constant angular acceleration of 2.80 rad/s2. It starts from rest at t = 0, and a line drawn from the center of the disk to a point P on the rim of the disk makes an angle of 57.3° with the positive x-axis at this time. (a) Find the angular speed of the wheel at t = 2.30 s. rad/s (b) Find the linear velocity and tangential acceleration of P at t =...
A 40.0-cm diameter disk rotates with a constant angular acceleration of 2.70 rad/s2. It starts from rest at t 0, and a line drawn from the center of the disk to a point P on the rim of the disk makes an angle of 57.3° with the positive x-axis at this time. (a) At t 2.50 s, find the angular speed of the wheel. rad/s (b) At t 2.50 s, find the magnitude of the linear velocity and tangential acceleration...
Disk D has angular velocity ω': 4 rad/s and angular acceleration α': 1.2 rad/s' and radius r = 0.3 m. The fixed curved surface C has radius R = 0.8 m. If no slipping occurs between disk D and the fixed surface C, determine the angular velocity and angular acceleration, ω and α, of arm AB. 2. ω,α ω.a
