Homework Answers
Hi you have given me a lot of work and within allotted time it is not possible to analyze each and every thing, hence i am gonna give you a table of frequencies which is used to differentiate the 12 compounds here.
|
Alcohol |
|||
|
O-H |
(stretch, H-bonded) |
3200-3600 |
strong, broad |
|
O-H |
(stretch, free) |
3500-3700 |
strong, sharp |
|
C-O |
(stretch) |
1050-1150 |
strong |
|
Alkane |
|||
|
C-H |
stretch |
2850-3000 |
strong |
|
-C-H |
bending |
1350-1480 |
variable |
|
Alkene |
|||
|
=C-H |
stretch |
3010-3100 |
medium |
|
=C-H |
bending |
675-1000 |
strong |
|
C=C |
stretch |
1620-1680 |
variable |
|
Aromatic |
|||
|
C-H |
stretch |
3000-3100 |
medium |
|
C=C |
stretch |
1400-1600 |
medium-weak, multiple bands |
|
Nitrile |
|||
|
CN |
stretch |
2210-2260 |
medium |
|
Aldehyde |
|||
|
C=O |
stretch |
1740-1720 |
strong |
|
=C-H |
stretch |
2820-2850 & 2720-2750 |
medium, two peaks |
|
Amide |
|||
|
C=O |
stretch |
1640-1690 |
strong |
|
N-H |
stretch |
3100-3500 |
unsubstituted have two bands |
|
N-H |
bending |
1550-1640 |
|
|
Ester |
|||
|
C=O |
stretch |
1735-1750 |
strong |
|
C-O |
stretch |
1000-1300 |
two bands or more |
|
Ketone |
|||
|
acyclic |
stretch |
1705-1725 |
strong |
|
cyclic |
stretch |
3-membered - 1850 |
strong |
|
a,b-unsaturated |
stretch |
1665-1685 |
strong |
|
aryl ketone |
stretch |
1680-1700 |
strong |
Hope this helped you!
Thank You So Much! Please Rate this answer as you wish.("Thumbs Up")
Add Answer to:

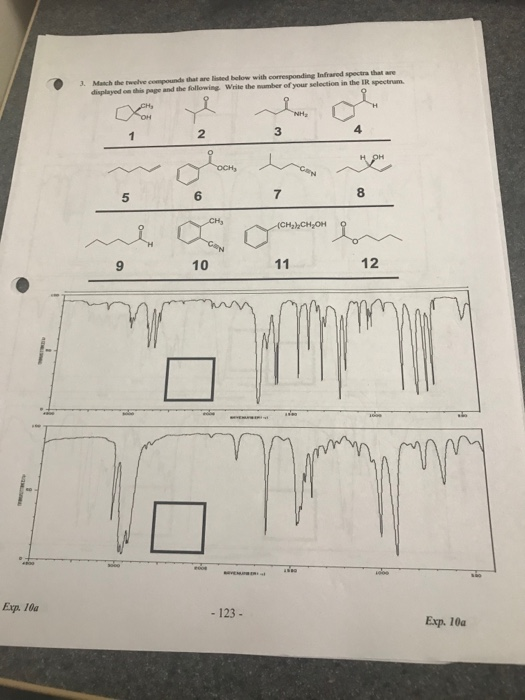

3. Match the t he compounds that are listed below with corresponding Infrared spectra that are...
use structures to fill in blanks in IR spectra Match the twelve compounds that are listed...
use structures to fill in blanks in IR spectra

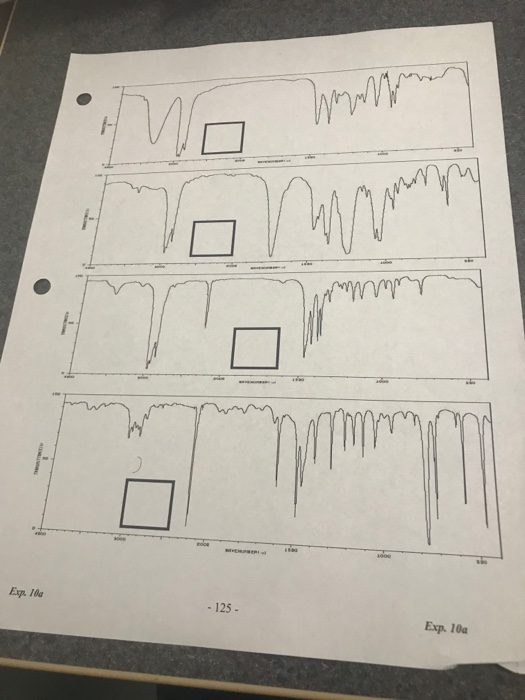

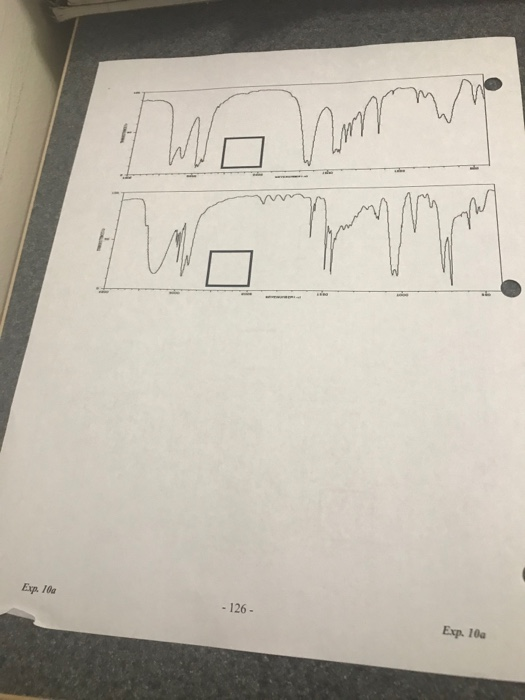

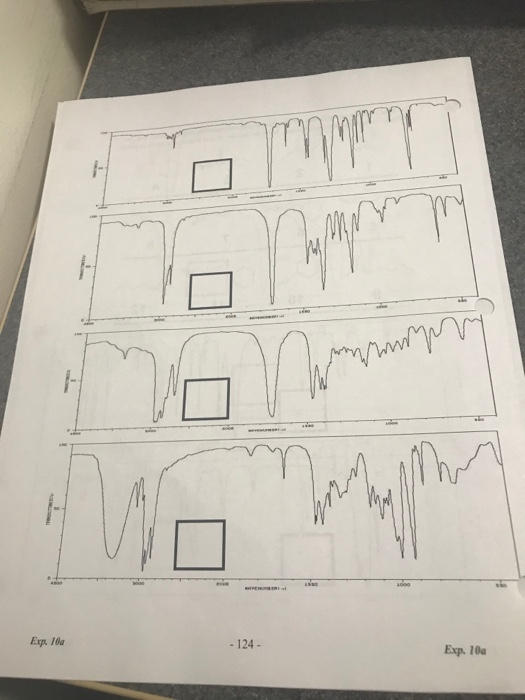

Match the twelve compounds that are listed below with corresponding Infrared spectra that are displayed on this page and the following. Write the number of your selection in the IR spectrum. сна OH NH2 2 son ОН OCH3 -C=N 7 8 CH3 -(CH2)2CH2OH -CEN 9 10 11 12 mmmm Exp. 10а - 125 - Exp. 10а We were unable to transcribe this image
