Question
Please show all work. For this question. Also I would like to know if this is considered an easy problem.

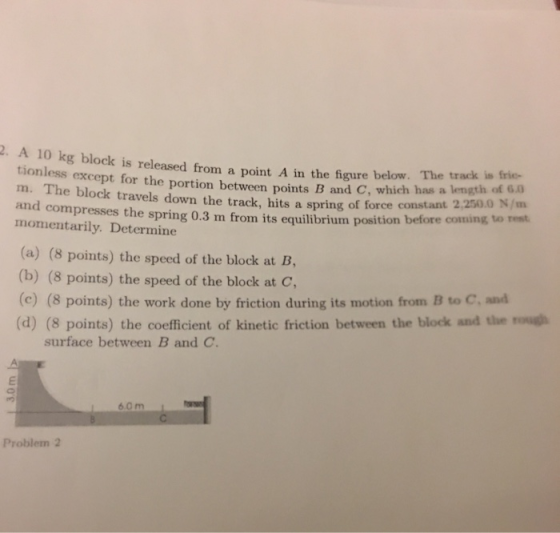

2. A 10 kg block is released from a point A in the figure below. The track is frie- tionless except for the portion between points B and C, which has a length of d m. The block travels down the track, hits a spring of force constant 2250 and compresses the spring 0.3 m from its equilibrium position before momentarily. Determine .0 N/m coming to rest (a) (8 points) the speed of the block at B (b) (8 points) the speed of the block at C (c) (8 points) the work done by friction during its motion from B to C, and (d) (8 points) the coefficient of kinetic friction between the block and the rou surface between B and C 6.0m Problem 2
0 0
Add a comment Improve this question Transcribed image text
Answer #1

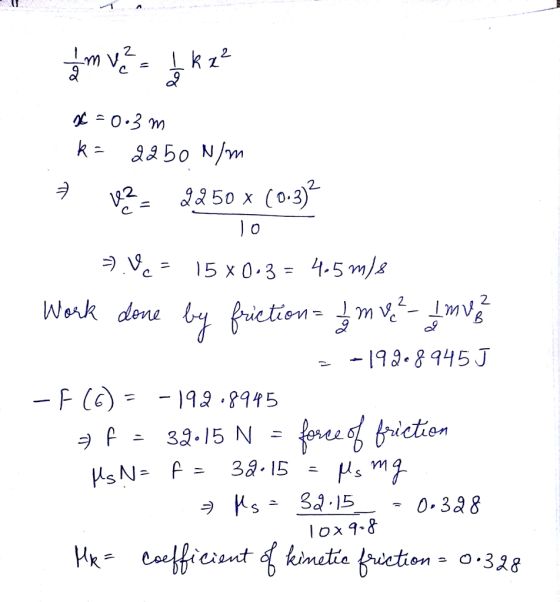

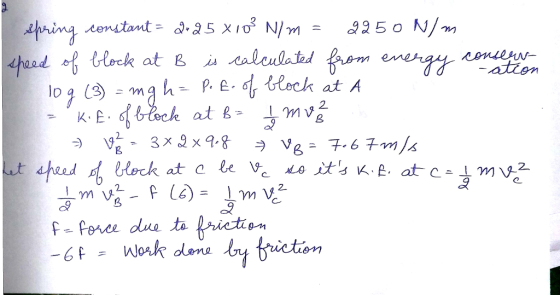

leck at B i calculatedWerk dene --19 9·8945J ヲ ニ32-15 Nニ 34.15 lox 9.8 en 0.328yes this problem is easy but conceptually nice

Please rate it up thanks :)

Add a comment
