Four point charges are situated at the corners of a rectangle. Q1 (bottom left corner): 2.00...

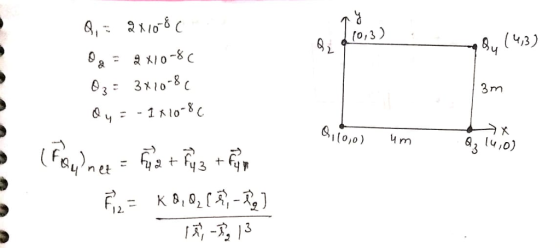

Four point charges are situated at the corners of a rectangle.
Q1 (bottom left corner): 2.00 x 10-8 C
Q2 (upper left corner): 2.00 x 10-8 C
Q3 (lower right corner): 3.00 x 10-8 C
Q4 (upper right corner): -1.00 x 10-8 C
the length is 4.00 m and the height is 3.00 m

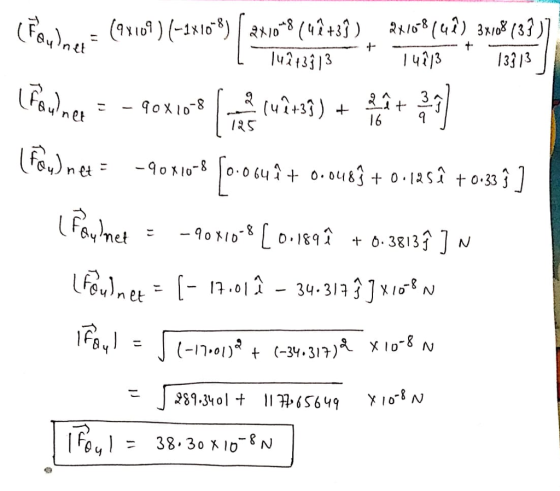

Find the net force on Q4!
(our class is algebra based)
Homework Answers
Add Answer to:
Four point charges are situated at the corners of a rectangle. Q1 (bottom left corner): 2.00...
Charges q1, q2, and q3 sit on the corners of a rectangle with sides of 3.00...
Charges q1, q2, and q3 sit on the corners of a rectangle with sides of 3.00 m and 4.00 m, as shown in the figure below. Charge q4 is placed at the center of the rectangle, at the point (x -2.00 m, y-1.50 m) What is the magnitude and direction (relative to the +x axis) of the net electric field at point P due to the four charges? +y 41 Q2-+2.00 nC 93 = +3.00 nC q -0.500 nC 94...
There are 4 charges at the corners of a square. q1 (top left corner)= q. q2...
There are 4 charges at the corners of a square. q1 (top left corner)= q. q2 (top right corner)= Q. q3 (bottom left corner) = -q. q4= -Q. Take q = 1.02 µC and Q = 2.23 µC.) The side length of the square is 10 cm. a) what are the magnitude and direction of the resultant force on q1? (Take q1 as the origin of the coordinate system and measure the angle counterclockwise from the positive x-axis, which is...
a) The figure shows three charges q1, q2, and q3, situated at corners of a rectangle...
a) The figure shows three charges q1, q2, and q3, situated at corners of a rectangle of sides a = 15.0 cm and b = 7.0 cm. For q1 = 5.60 ?C, q2 = -5.60 ?C,and q3 = 1.60 ?C, find the electric potential at the center of the rectangle. 1.74
The figure shows three charges q1, q2, and q3, situated at corners of a rectangle of...
The figure shows three charges q1, q2, and q3, situated at
corners of a rectangle of sides a = 14.0 cm and b = 8.0 cm. For q1
= 5.70 μC, q2 = -5.70 μC,and q3 = 1.60 μC, find the electric
potential at the center of the rectangle. b) Continuing with the
figure above, how much work is required in moving q3 to infinity
while q1 and q2 remain in their positions?
Problem 1 2 a) The figure shows...
At three corners of a rectangle (length 14.8 cm, height 7.4 cm), the following charges are...
At three corners of a rectangle (length 14.8 cm, height 7.4 cm), the following charges are located: q1 (upper left corner), q2 (lower right corner), and q (lower left corner). The net electric field at the (empty) upper right corner is zero. Find the magnitudes of (a) q1 and (b) q2 if q = 8.5 C.
At three corners of a rectangle (length 9.2 cm, height 4.6 cm), the following charges are...
At three corners of a rectangle (length 9.2 cm, height 4.6 cm), the following charges are located: q1 (upper left corner), q2 (lower right corner), and q (lower left corner). The net electric field at the (empty) upper right corner is zero. Find the magnitudes of (a) q1 and (b) q2 if q = 5.1 C.
A charge of +3 micro-coulombs is placed at the bottom left corner of a rectangle, a...
A charge of +3 micro-coulombs is placed at the bottom left corner of a rectangle, a charge of -3 micro-coulombs is placed at the top left corner of a rectangle, a charge of +10 micro-coulombs is placed at the bottom right corner of a rectangle, and a charge of +10 micro-coulombs is placed at the top right corner of a rectangle. The rectangle has a height of 8.1 cm and a width of 24.6 cm. (See sketch). What is the...
A charge of +5 micro-coulombs is placed at the bottom left corner of a rectangle, a...
A charge of +5 micro-coulombs is placed at the bottom left
corner of a rectangle, a charge of -5 micro-coulombs is placed at
the top left corner of a rectangle, a charge of +9 micro-coulombs
is placed at the bottom right corner of a rectangle, and a charge
of +9 micro-coulombs is placed at the top right corner of a
rectangle. The rectangle has a height of 8 cm and a width of 23.7
cm. (See sketch). What is the...
A charge of +8 micro-coulombs is placed at the bottom left corner of a rectangle, a...
A charge of +8 micro-coulombs is placed at the bottom left corner of a rectangle, a charge of -8 micro-coulombs is placed at the top left corner of a rectangle, a charge of +8 micro-coulombs is placed at the bottom right corner of a rectangle, and a charge of +8 micro-coulombs is placed at the top right corner of a rectangle. The rectangle has a height of 20.6 cm and a width of 12.6 cm. (See sketch). What is the...
Two point charges are located at the top left and bottom right corners of a rectangle....
Two point charges are located at the top left and bottom right corners of a rectangle. The rectangle is 0.05 m tall and 0.15 long such that the longer length of the rectangle lies along the x-axis. Assume that the electric potential is defined to be zero at infinity. Determine the electric potential at a point A located at the top right corner of the rectangle.
Charges q1, q2, and q3 sit on the corners of a rectangle with sides of 3.00 m and 4.00 m, as shown in the figure below. Charge q4 is placed at the center of the rectangle, at the point (x -2.00 m, y-1.50 m) What is the magnitude and direction (relative to the +x axis) of the net electric field at point P due to the four charges? +y 41 Q2-+2.00 nC 93 = +3.00 nC q -0.500 nC 94...
The figure shows three charges q1, q2, and q3, situated at
corners of a rectangle of sides a = 14.0 cm and b = 8.0 cm. For q1
= 5.70 μC, q2 = -5.70 μC,and q3 = 1.60 μC, find the electric
potential at the center of the rectangle. b) Continuing with the
figure above, how much work is required in moving q3 to infinity
while q1 and q2 remain in their positions?
Problem 1 2 a) The figure shows...
A charge of +5 micro-coulombs is placed at the bottom left
corner of a rectangle, a charge of -5 micro-coulombs is placed at
the top left corner of a rectangle, a charge of +9 micro-coulombs
is placed at the bottom right corner of a rectangle, and a charge
of +9 micro-coulombs is placed at the top right corner of a
rectangle. The rectangle has a height of 8 cm and a width of 23.7
cm. (See sketch). What is the...
