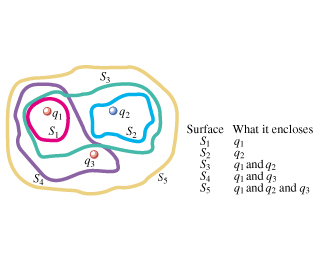

The three small spheres shown in the figure (Figure 1)carry charges q1 = 3.90 nC ,...
The three small spheres shown in the figure (Figure 1)carry charges q1 = 3.90 nC , q2 = -7.80 nC , and q3 = 2.30 nC .

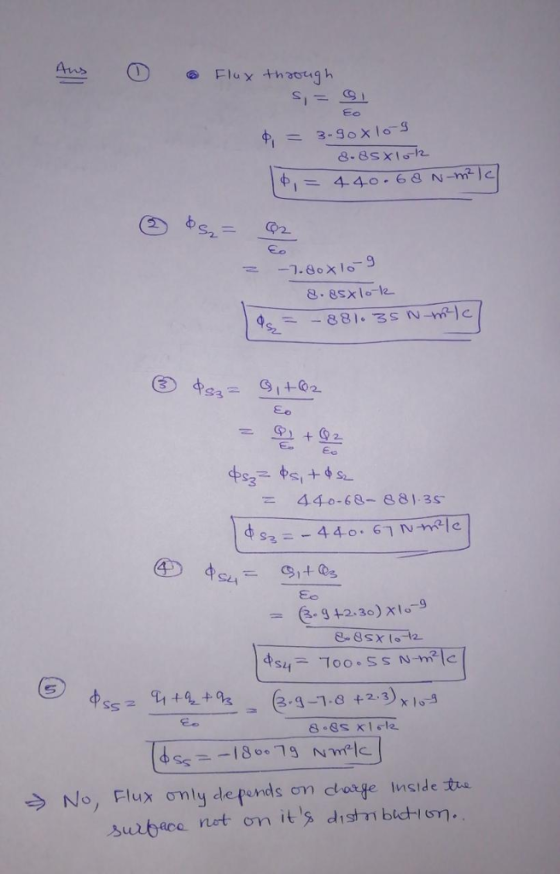

Find the net electric flux through the closed surface S1,2.3.4 & 5 shown in cross section in the figure.
Do your answers to parts A through E depend on how the charge is distributed over each small sphere? why or why not?
Homework Answers
Add Answer to:
The three small spheres shown in the figure (Figure 1)carry charges q1 = 3.90 nC ,...
The three small spheres shown in the figure (Figure 1) carry charges q1 = 3.75 nC...
The three small spheres shown in the figure (Figure 1) carry charges q1 = 3.75 nC , q2 = -7.95 nC , and q3 = 2.55 nC . Part A Find the net electric flux through the closed surface S1 shown in cross section in the figure. N⋅m^2/C Part B Find the net electric flux through the closed surface S2 shown in cross section in the figure. N⋅m^2/C Part C Find the net electric flux through the closed surface S3...
The three small spheres shown in the figure below carry charges q1 = 4.50 nC, q2...
The three small spheres shown in the figure below carry charges q1 = 4.50 nC, q2 = -7.90 nC, and q3 = 3.10 nC. Find the net electric flux through each of the following closed surfaces shown in cross section in the figure. (a) S1 N
Constants The three small spheres shown in the figure (Figure 1) charges q1 4.40 nC,92 --7.60...
Constants The three small spheres shown in the figure (Figure 1) charges q1 4.40 nC,92 --7.60 nC, and q3 2.25 n Figure 1 of 1 S3 042 Surface What it encloses S, S2 42 S, $ i and Part A Find the net electric flux through the closed surface S1 shown in cross section in the figure. N m2/C Submit Request Answer Part B Find the net electric flux through the closed surface shown in cross section in the figu...
The three small spheres shown in the figure below carry charges q1 3.45 nC, q2 -8.30...
The three small spheres shown in the figure below carry charges q1 3.45 nC, q2 -8.30 nC, and q 2.25 nC 042 Surface What it encloses giandga 1 and gs S andq and g3 Find the net electric flux through each of the following closed surfaces shown in cross section in the figure (a) S (b) S (c) S, (c) S (e) S 脱.957216-2,01 (7e version":0) N mIC RM957216-2-1! ("p version" N . m./C RN 957216 22s version N m/C...
Constants The three small spheres shown in the figure (Figure 1)ca charges q1 = 4.40 nC...
Constants The three small spheres shown in the figure (Figure 1)ca charges q1 = 4.40 nC , q2 =-7.60 nC , and q3 = 2.25 nC . < 1of1 Figure 042 Surface What it encloses S2 42 Ss qi and qz Ss and qz and q ▼ Part E Find the net electric flux through the closed surface S5 shown in cross section in the figure. al m2 /C Submit Previous Answers Request Answer
The three small spheres shown in the figure below carry charges q1 = 3.05 nC, q2...
The three small spheres shown in the figure below carry charges
q1 = 3.05 nC, q2 = -8.20
nC, and q3 = 2.90 nC.
Three identical metallic conducting spheres carry the following charges: q1 = +7.8 μC, q2 = −1.4...
Three identical metallic conducting spheres carry the following charges: q1 = +7.8 μC, q2 = −1.4 μC, and q3 = −4.0 μC. The spheres that carry the charges q1 and q2 are brought into contact. Then they are separated. After that, one of those two spheres is brought into contact with the third sphere that carries the charge q3. What is the final charge on the third sphere?
Three identical metallic conducting spheres carry the following charges: q1 = +1.00 μC, q2 = +2.60...
Three identical metallic conducting spheres carry the following charges: q1 = +1.00 μC, q2 = +2.60 μC, and q3 = −3.20 μC. The spheres that carry the charges q1 and q2 are brought into contact. Then they are separated. After that, one of those two spheres is brought into contact with the third sphere that carries the charge q3; those two are then separated as well. a) What is the final charge on the third sphere? 2. b) How many...
1. Three identical metallic conducting spheres carry the following charges: q1 = +4 20 μο q2...
1. Three identical metallic conducting spheres carry the following charges: q1 = +4 20 μο q2 +740 μο and q3 -600 μ . The spheres that carry the charges qi and q2 are brought into contact. Then they are separated. After that, one of those two spheres is brought into contact with the third sphere that carries the charge q3; those two are then separated as well a) What is the final charge on the third sphere? x(4.66e-17) C 2....
3) Three point charges are arranged as shown in the figure, q1 =2 nC, q2...
3) Three point charges are arranged as shown in the figure, q1 =
2 nC, q2 = - 6.5 nC and q3 = 4 nC. Find (a) the magnitude and (b)
the direction of the electric force on the particle at the
origin.
Constants The three small spheres shown in the figure (Figure 1) charges q1 4.40 nC,92 --7.60 nC, and q3 2.25 n Figure 1 of 1 S3 042 Surface What it encloses S, S2 42 S, $ i and Part A Find the net electric flux through the closed surface S1 shown in cross section in the figure. N m2/C Submit Request Answer Part B Find the net electric flux through the closed surface shown in cross section in the figu...
The three small spheres shown in the figure below carry charges q1 3.45 nC, q2 -8.30 nC, and q 2.25 nC 042 Surface What it encloses giandga 1 and gs S andq and g3 Find the net electric flux through each of the following closed surfaces shown in cross section in the figure (a) S (b) S (c) S, (c) S (e) S 脱.957216-2,01 (7e version":0) N mIC RM957216-2-1! ("p version" N . m./C RN 957216 22s version N m/C...
Constants The three small spheres shown in the figure (Figure 1)ca charges q1 = 4.40 nC , q2 =-7.60 nC , and q3 = 2.25 nC . < 1of1 Figure 042 Surface What it encloses S2 42 Ss qi and qz Ss and qz and q ▼ Part E Find the net electric flux through the closed surface S5 shown in cross section in the figure. al m2 /C Submit Previous Answers Request Answer
The three small spheres shown in the figure below carry charges
q1 = 3.05 nC, q2 = -8.20
nC, and q3 = 2.90 nC.
1. Three identical metallic conducting spheres carry the following charges: q1 = +4 20 μο q2 +740 μο and q3 -600 μ . The spheres that carry the charges qi and q2 are brought into contact. Then they are separated. After that, one of those two spheres is brought into contact with the third sphere that carries the charge q3; those two are then separated as well a) What is the final charge on the third sphere? x(4.66e-17) C 2....
3) Three point charges are arranged as shown in the figure, q1 =
2 nC, q2 = - 6.5 nC and q3 = 4 nC. Find (a) the magnitude and (b)
the direction of the electric force on the particle at the
origin.
