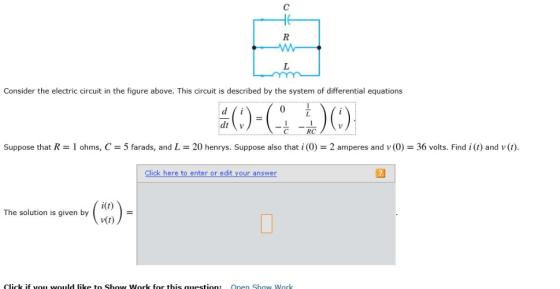

R wW L Consider the electric circuit in the figure above. This circuit is described by...
I JUST want I(t), not the entire written form of the IVP с HE R L...
I JUST want I(t), not the entire written form of the IVP
с HE R L Consider the electric circuit in the figure. This circuit is described by the system of differential equations 1 46-62 RC O. Suppose that R= 2 ohm, C = 3 farad, and L = 48 henrys. Suppose also that f(0) = 3 ampere and V(0) = 228 volts. Find '(t) and V(t). VOPISI (0)sin log, +- OLY I(t) =
It shows that the electric circuit shown in the figure is described by the system of differential equations. Where x1 is...
It shows that the electric circuit shown in the figure
is described by the system of differential equations. Where x1 is
the current that will pass through the coil, x2 is the voltage drop
in the capacitor, and I (t) is the current produced by the external
source
Explain your procedure

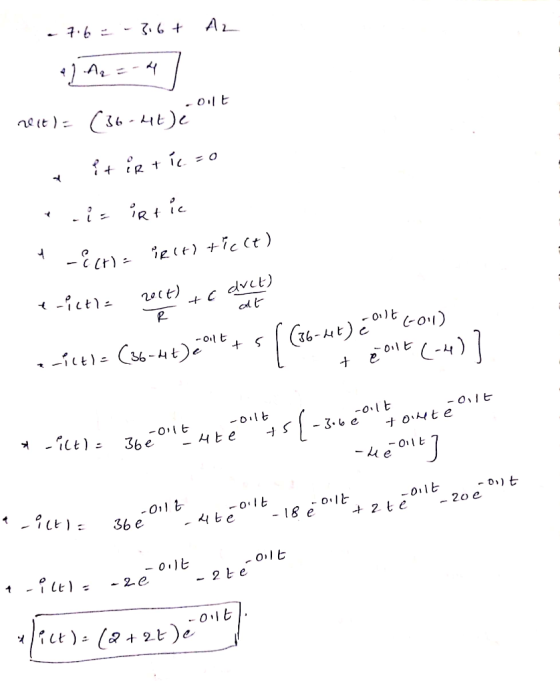

L 8 henrys I(t) Cfarad R= 4 ohms 7-4 ohms 18 12 5
L 8 henrys I(t) Cfarad R= 4 ohms 7-4 ohms
18 12 5
9. (12) Given the LRC circuit with L henries, R-10 ohms, C- farads and E(t) =...
9. (12) Given the LRC circuit with L henries, R-10 ohms, C- farads and E(t) = 50 cos t 30 volts, the charge q(t) satisfies the linear second order ordinary differential equation 2 dq1 dt2 (a) Find the charge q(t) if q(0) 100 coulombs and '(0)0 amperes. (b) Identify in q(t) the transient terms and, respectively, the steady state terms. Is the circuit overdamped, underdamped, or critically damped? E(t) Figure 1: Problem9.
Answer: Please help! Electrical series circuits never make sence to me. I included the answer so that you can check your work. Hope that helps. 19. An electrical series circuit contains a resi...
Answer:
Please help! Electrical series circuits never make
sence to me. I included the answer so that you can check your
work.
Hope that helps.
19. An electrical series circuit contains a resistor with a resistance of R- 20 ohms, a capacitor with a capacitance of C 0.01 farads, and an inductor with an inductance of L 1 henry. The initial current in the circuit is 0 amperes. A variable voltage of E(t) 120 sin volts of is applied to...
Can you solve this with Matlab Question2 The resonant frequency f (inHz) for a circuit is given by Calculate the resonant frequency when L = 0 2 henrys, R-1500, R2 = 1800 ohms, C-2x106 farads...
Can you solve this with Matlab
Question2 The resonant frequency f (inHz) for a circuit is given by Calculate the resonant frequency when L = 0 2 henrys, R-1500, R2 = 1800 ohms, C-2x106 farads
Question2 The resonant frequency f (inHz) for a circuit is given by Calculate the resonant frequency when L = 0 2 henrys, R-1500, R2 = 1800 ohms, C-2x106 farads
2. This problem is about an RLC circuit, which involves a resistor (of resistance R ohms),...
2. This problem is about an RLC circuit, which involves a resistor (of resistance R ohms), an inductor (of L henries), and a capacitor (of C farads). There is also a voltage source (such as a battery) providing E(t) volts at time t. 0 Switch When the switch is closed there is a current of I(t) amperes. With the help of Kirchhoff's laws one can derive an ODE for I = I(t): LI" + RI' + + I = E'(t)...
1. Use Laplace Transforms to determine the function modeling the current in an RLC circuit with L 10 Henries, R 20 ohms...
1. Use Laplace Transforms to determine the function modeling the current in an RLC circuit with L 10 Henries, R 20 ohms, C = 0.02 Farads, the initial charge is Q(0) = 0, the initial current is I(0) = 0, there is an electromotive force forcing the RLC circuit via the voltage function E(t) letting the current alternate naturally through the circuit. Use the fact the differential 10 sin (t), nd then, at t = 2T seconds, the battery is...
The circuit in the figure to the right is represented by the equation below, where I...
The circuit in the figure to the right is represented by the equation below, where I is the current through the inductor Land Ve is the voltage drop across the capacitor C. Find formulas for I, and Vc when R=0.5 ohms, C = 12.5 farads, L= 2.5 henry, the initial current is o amperes, and the initial voltage is 12 volts. R Het с 1 RC Vc 000 L Choose the correct answer below. 4.(t) Vc(t) 0.100 OA 30 sin(-0.08t)...
In a series resistance-capacitance DC circuit, the instantaneous charge Q on the capacitor as a... In...
In a series resistance-capacitance DC circuit, the instantaneous charge Q on the capacitor as a... In a series resistance-capacitance DC circuit, the instantaneous charge Q on the capacitor as a function of time (where t=0 is the moment the circuit is energized by closing a switch) is given by the equation Q(t)=CV(1-e-t/(RC), where C, V, and R are constants. Further, the instantaneous charging current Ic is the rate of change of charge on the capacitor, or Ic=dQ/dt a. Find the...
Exercise 3 An RLC circuit is made of a resistor, an inductor and a capacitor connected...
Exercise 3 An RLC circuit is made of a resistor, an inductor and a capacitor connected in series to a battery. The current I(t) in such a circuit satisfies the ODE LI"(t) + RI (1) + (t) = G(t) where L is the inductance (unit: henrys (H)), R is the resistance (unit: ohms (N2), C is the capacitance (unit: farads (F)), and G is the forcing term generated by an AC power (G is actually the derivative with respect to...
I JUST want I(t), not the entire written form of the IVP
с HE R L Consider the electric circuit in the figure. This circuit is described by the system of differential equations 1 46-62 RC O. Suppose that R= 2 ohm, C = 3 farad, and L = 48 henrys. Suppose also that f(0) = 3 ampere and V(0) = 228 volts. Find '(t) and V(t). VOPISI (0)sin log, +- OLY I(t) =
It shows that the electric circuit shown in the figure
is described by the system of differential equations. Where x1 is
the current that will pass through the coil, x2 is the voltage drop
in the capacitor, and I (t) is the current produced by the external
source
Explain your procedure
L 8 henrys I(t) Cfarad R= 4 ohms 7-4 ohms 18 12 5
L 8 henrys I(t) Cfarad R= 4 ohms 7-4 ohms
18 12 5
9. (12) Given the LRC circuit with L henries, R-10 ohms, C- farads and E(t) = 50 cos t 30 volts, the charge q(t) satisfies the linear second order ordinary differential equation 2 dq1 dt2 (a) Find the charge q(t) if q(0) 100 coulombs and '(0)0 amperes. (b) Identify in q(t) the transient terms and, respectively, the steady state terms. Is the circuit overdamped, underdamped, or critically damped? E(t) Figure 1: Problem9.
Answer:
Please help! Electrical series circuits never make
sence to me. I included the answer so that you can check your
work.
Hope that helps.
19. An electrical series circuit contains a resistor with a resistance of R- 20 ohms, a capacitor with a capacitance of C 0.01 farads, and an inductor with an inductance of L 1 henry. The initial current in the circuit is 0 amperes. A variable voltage of E(t) 120 sin volts of is applied to...
Can you solve this with Matlab
Question2 The resonant frequency f (inHz) for a circuit is given by Calculate the resonant frequency when L = 0 2 henrys, R-1500, R2 = 1800 ohms, C-2x106 farads
Question2 The resonant frequency f (inHz) for a circuit is given by Calculate the resonant frequency when L = 0 2 henrys, R-1500, R2 = 1800 ohms, C-2x106 farads
2. This problem is about an RLC circuit, which involves a resistor (of resistance R ohms), an inductor (of L henries), and a capacitor (of C farads). There is also a voltage source (such as a battery) providing E(t) volts at time t. 0 Switch When the switch is closed there is a current of I(t) amperes. With the help of Kirchhoff's laws one can derive an ODE for I = I(t): LI" + RI' + + I = E'(t)...
1. Use Laplace Transforms to determine the function modeling the current in an RLC circuit with L 10 Henries, R 20 ohms, C = 0.02 Farads, the initial charge is Q(0) = 0, the initial current is I(0) = 0, there is an electromotive force forcing the RLC circuit via the voltage function E(t) letting the current alternate naturally through the circuit. Use the fact the differential 10 sin (t), nd then, at t = 2T seconds, the battery is...
The circuit in the figure to the right is represented by the equation below, where I is the current through the inductor Land Ve is the voltage drop across the capacitor C. Find formulas for I, and Vc when R=0.5 ohms, C = 12.5 farads, L= 2.5 henry, the initial current is o amperes, and the initial voltage is 12 volts. R Het с 1 RC Vc 000 L Choose the correct answer below. 4.(t) Vc(t) 0.100 OA 30 sin(-0.08t)...
Exercise 3 An RLC circuit is made of a resistor, an inductor and a capacitor connected in series to a battery. The current I(t) in such a circuit satisfies the ODE LI"(t) + RI (1) + (t) = G(t) where L is the inductance (unit: henrys (H)), R is the resistance (unit: ohms (N2), C is the capacitance (unit: farads (F)), and G is the forcing term generated by an AC power (G is actually the derivative with respect to...
