8. Which circuit diagrammed below (A, B, C, or Dis equivalent to the circuit shown here,...

Question

Question

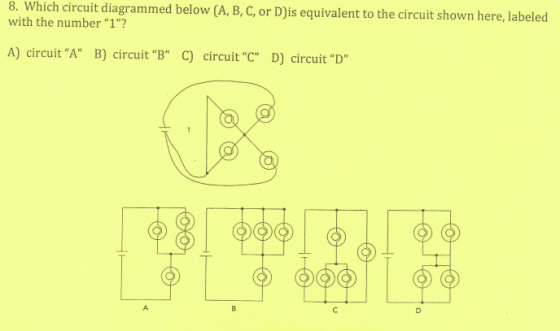

8. Which circuit diagrammed below (A, B, C, or Dis equivalent to the circuit shown here, labeled with the number 1? A) circ

science physics

Answer 1

Answer #1

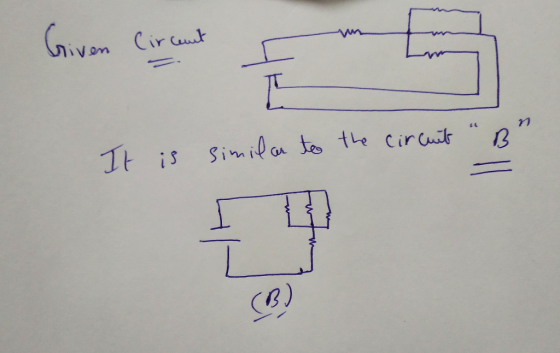

Circut is Similaa t the cir n C

Answer 2

Similar Homework Help Questions

8. Which circuit diagrammed below (A, B, C, or D)is equivalent to the circuit shown here,...

8. Which circuit diagrammed below (A, B, C, or D)is equivalent to the circuit shown here, labeled with the number "1"? A) circuit "A" B) circuit "B" C) circuit "C" D) circuit "D"
Problem #2: In the circuit shown below use Thevenin's equivalent circuit method to determine: a) The...

Problem #2: In the circuit shown below use Thevenin's equivalent circuit method to determine: a) The output current lo b) How is the maximum power delivered to the load? © 24V
Problem (6) For the circuit diagrammed below, please (a) replace the 3.00 2,5.00 , 2.00 12,...

Problem (6) For the circuit diagrammed below, please (a) replace the 3.00 2,5.00 , 2.00 12, 6.00 resistors with a single equivalent resistor, and state the value of the equivalent resistance. 20.00 2.0 a w 120.0 V 3.00 6.00 Please find 60.0 V w 5.00 (b) the power supplied by the ideal 120.0 V source, w 7009 (c) and the power dissipated by the 5.000 resistor.

Problem #2: In the circuit shown below use Thevenin's equivalent circuit method to determine: a) The...

Problem #2: In the circuit shown below use Thevenin's equivalent circuit method to determine: a) The output current lo. b) How is the maximum power delivered to the load? 12K M - 12v 0 Gama 6 24V
What is the equivalent capacitance of the circuit shown below if C = 75 µF? 18)...

What is the equivalent capacitance of the circuit shown below if C = 75 µF? 18) What is the equivalent capacitance of the circuit shown below if C 75 uF? 2C 2C
Problem (6) For the circuit diagrammed below, please (a) replace the 3.00 12,5.00 12, 2.00 12,...

Problem (6) For the circuit diagrammed below, please (a) replace the 3.00 12,5.00 12, 2.00 12, 6.00 resistors with a single equivalent resistor, and state the value of the equivalent resistance. 20.0.2 2.002 120.0 V Please find 3.002 6.00 $2 60.0 V (b) the power supplied by the ideal 120.0 V source, 5.00 12 7.00 S2 (c) and the power dissipated by the 5.00 S2 resistor.

Problem (6) For the circuit diagrammed below, please (a) replace the 3.00 12,5.00 12, 2.00 12,...

Problem (6) For the circuit diagrammed below, please (a) replace the 3.00 12,5.00 12, 2.00 12, 6.00 resistors with a single equivalent resistor, and state the value of the equivalent resistance. 20.0.2 2.002 120.0 V Please find 3.002 6.00 $2 60.0 V (b) the power supplied by the ideal 120.0 V source, 5.00 12 7.00 S2 (c) and the power dissipated by the 5.00 S2 resistor.
Problem (6) For the circuit diagrammed below, please (a) replace the 3.00 0,5.00 , 2.00 0,6.00...

Problem (6) For the circuit diagrammed below, please (a) replace the 3.00 0,5.00 , 2.00 0,6.00 Q resistors with a single equivalent resistor, and state the value of the equivalent resistance. 20.00 ww 2.00 1200V Please find 3.00 6.00 60.0 V 5.00 (b) the power supplied by the ideal 120.0 V source, 7.00 and the power dissipated by the 5.00 resistor.
Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where...

Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where R = 12 Ω. Please report your answer so the magnitude is positive and all angles are in the range of negative 180 degrees to positive 180 degrees. Find the Thevenin and Norton equivalent circuit at terminals a-b for the circuit shown below, where R = 12 n. Please report your answer so the magnitude is positive and all angles are in the range...

3. Find the Norton's equivalent circuit at terminals a and b for the circuit shown below....

3. Find the Norton's equivalent circuit at terminals a and b for the circuit shown below. 822 3 42 2A +) 12 V
