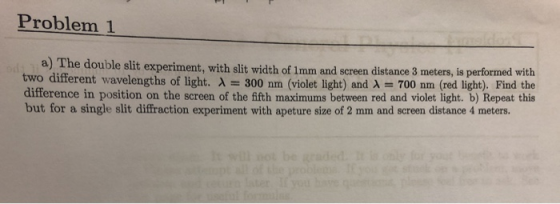

Problem 1 ads a) The double slit experiment, with slit width of 1mm and screen distance...
a) The double slit experiment, with slit width of 1mm and screen distance 3 meters, is performed with two different wave...

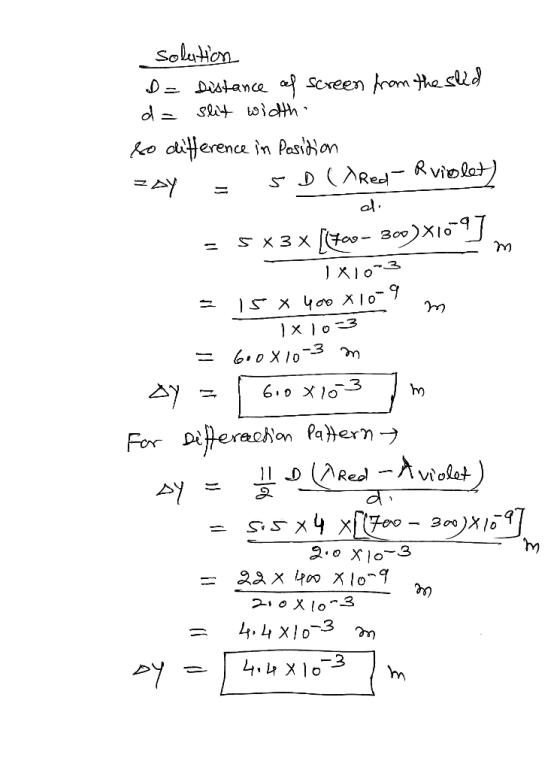

a) The double slit experiment, with slit width of 1mm and screen distance 3 meters, is performed with two different wavelengths of light. wavelength= 300 nm (violet light) and wavelength= 700 nm (red light). Find the difference in position on the screen of the fifth maximums between red and violet light. b) Repeat this but for the single slit diffraction experiment with apeture size of 2 mm and screen distance 4 meters.
4. (10 pts) A double slit interference experiment uses red light (red = 650 nm). has...
4. (10 pts) A double slit interference experiment uses red light (red = 650 nm). has a screen distance of L=1.0 m, and a slit distance of d=1mm. Which of the following would cause the fringe spacing to increase? You may choose more than one. A. Use blue-green light (Ang = 520 nm) B. Use L=1.5 m C. Use a slit size of d=0.5 mm D. Switch to a diffraction grating
A) Young's double-slit experiment is performed with 595-nm light and a distance of 2.00 m between...
a) Young's double-slit experiment is performed with 595-nm light and a distance of 2.00 m between the slits and the screen. The tenth interference minimum is observed 7.40 mm from the central maximum. Determine the spacing of the slits (in mm). Answer: 1.5277 mm (b) What If? What are the smallest and largest wavelengths of visible light that will also produce interference minima at this location? (Give your answers, in nm, to at least three significant figures. Assume the visible...
Question 7 A double slit experiment is performed with a screen set up a distance 1.33...
Question 7 A double slit experiment is performed with a screen set up a distance 1.33 m from a set of double slits with a separation of 0.208 mm. What wavelength of light will form a 3 order maximum at a distance of 9.92 mm from the middle of the central maxium? Give your answer in nm to three significant digits. Enter your units as nm.
a) A beam of monochromatic light is incident on a single slit of width 0.600 mm....
a) A beam of monochromatic light is incident on a single slit of width 0.600 mm. A diffraction pattern forms on a wall 1.40 m beyond the slit. The distance between the positions of zero intensity on both sides of the central maximum is 1.90 mm. Calculate the wavelength (in nm) of the light. Round your answer to the nearest nm. b) The hydrogen spectrum includes a red line at 656 nm and a blue-violet line at 434 nm. If...
In a double-slit interference experiment the slit separation is 8.40 x 10-6 m and the slits...
In a double-slit interference experiment the slit separation is 8.40 x 10-6 m and the slits are 2.80 m from the screen. Each slit has a width of 1.20 x 10-6 m. a) An interference pattern is formed when light with a wavelength of 450 nm is shined on the slits. How far (in meters) from the center of the interference pattern on the screen do the third order (m = 3) bright fringes occur? (1.5 pts) b) If a...
Please use pdf scanner for answer. Please Be neat and clear. Only answer if sure of answer. Thanks! (: Violet light (wavelength 380 nm) falls on a narrow slit that produces a diffraction pattern o...
Please use pdf scanner for answer. Please Be neat and clear.
Only answer if sure of answer. Thanks! (:
Violet light (wavelength 380 nm) falls on a narrow slit that produces a diffraction pattern on a screen 5.0 m away. The width of the central maximum is 3.7 mm. a.) How does this width change if the violet light is replaced with a red light (wavelength 690 nm)? b.) What is the width of the slit? c.) What is the...
A double-slit interference experiment is performed with two very narrow slits separated by 0.19 mm. The...
A double-slit interference experiment is performed with two very narrow slits separated by 0.19 mm. The experiment uses red light with a wavelength of 700 nm and projects the interference pattern onto a screen 5.0 m away from the slits. (a) What is the distance between two nearby bright fringes on the screen? (b) What is the distance between two nearby dark fringes on the screen? Assume these fringes are all near θ = 0. A Young's double-slit interference experiment...
Young's double - slit experiment is performed with 623 - nm light and a distance of...
Young's double - slit experiment is performed with 623 - nm light and a distance of 4.00 m between the slits and the screen. The tenth interference minimum is observed 10 mm from the central maximum. Determine the spacing of the slits.
In a double-slit experiment, a viewing screen is located 2.30m from the slits and the distance...
In a double-slit experiment, a viewing screen is located 2.30m from the slits and the distance between the slits is 0.28mm. A monochromatic light with a wavelength of 4.80 ✕ 102 nm is directed toward the double slit and forms an interference pattern on the screen. Find the distance (Delta y in mm) between the first and second bright fringes of the interference pattern. a. None of the given answers b. 3.94 c. 7.89 d. 11.8 e. 0.25 f. 1.97
4. (10 pts) A double slit interference experiment uses red light (red = 650 nm). has a screen distance of L=1.0 m, and a slit distance of d=1mm. Which of the following would cause the fringe spacing to increase? You may choose more than one. A. Use blue-green light (Ang = 520 nm) B. Use L=1.5 m C. Use a slit size of d=0.5 mm D. Switch to a diffraction grating
Question 7 A double slit experiment is performed with a screen set up a distance 1.33 m from a set of double slits with a separation of 0.208 mm. What wavelength of light will form a 3 order maximum at a distance of 9.92 mm from the middle of the central maxium? Give your answer in nm to three significant digits. Enter your units as nm.
Please use pdf scanner for answer. Please Be neat and clear.
Only answer if sure of answer. Thanks! (:
Violet light (wavelength 380 nm) falls on a narrow slit that produces a diffraction pattern on a screen 5.0 m away. The width of the central maximum is 3.7 mm. a.) How does this width change if the violet light is replaced with a red light (wavelength 690 nm)? b.) What is the width of the slit? c.) What is the...
Young's double - slit experiment is performed with 623 - nm light and a distance of 4.00 m between the slits and the screen. The tenth interference minimum is observed 10 mm from the central maximum. Determine the spacing of the slits.
