Consider a very long aluminum fin (k = 237W/m-K) fin

Consider a very long aluminum fin (k = 237W/m-K) fin, with the temperature at the end of the fin essentially that of the surrounding air. This fin has a diameter of lcm, and is attached to a surface at 80°C. The surface is exposed to ambient air at 22°C with a heat transfer coefficient of 15W/m2-K. Estimate:


a) The fin temperature at a distance of 5cm from the base;

b) The rate of heat loss from the entire fin;

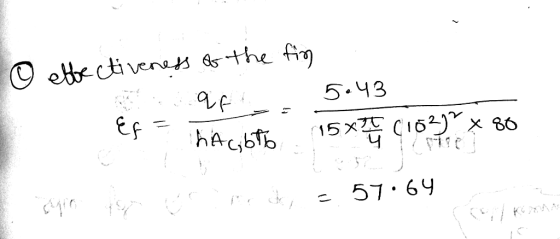

c) The effectiveness of the fin

engineering   Mechanical-Engineering
2 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

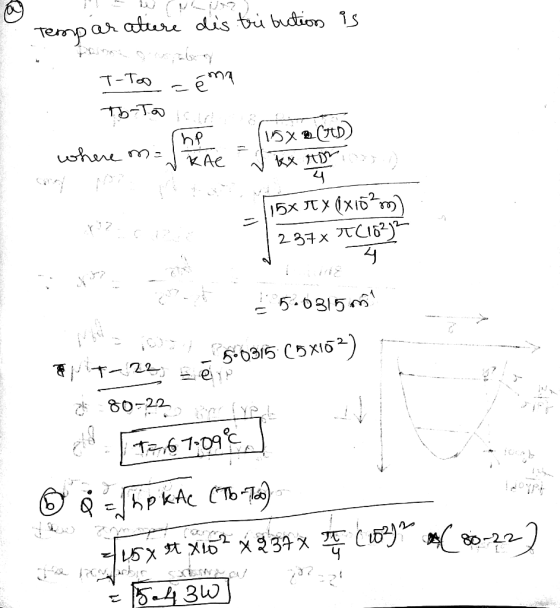

Answer #1

0 0
Add a comment
Answer #2

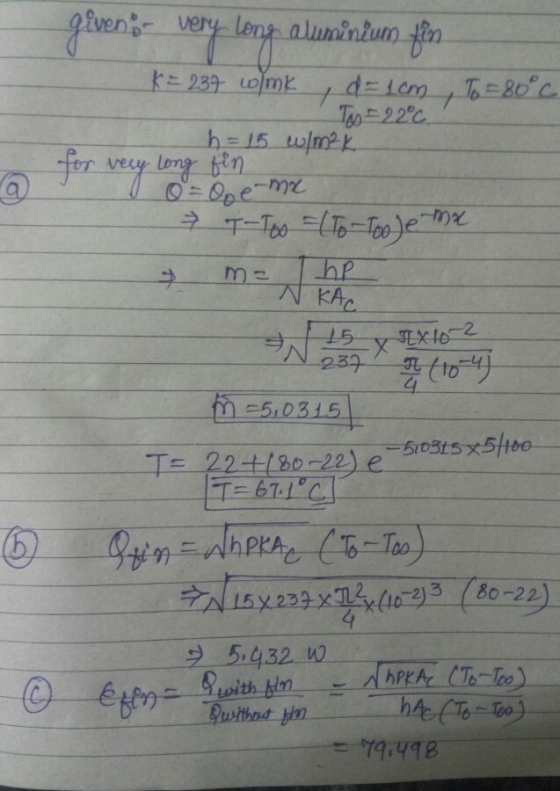

givens very lent alumintun fn k239 omk d=iem , To-80 c THo 22°C h=15 wlm2k Leng ten T-Too Teoe KAC 15 TEXIO 2 232 m5,0315 -B

0 0
Add a comment
