Question

Please help with isometric drawing if familiar with AutoCAD. Thanks. (NOTE: Please ignore the part name, part number and material as I will indicate them within my title block)

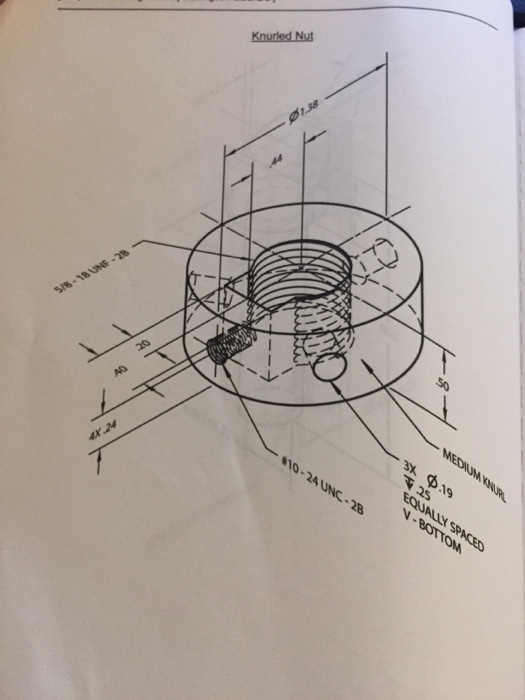

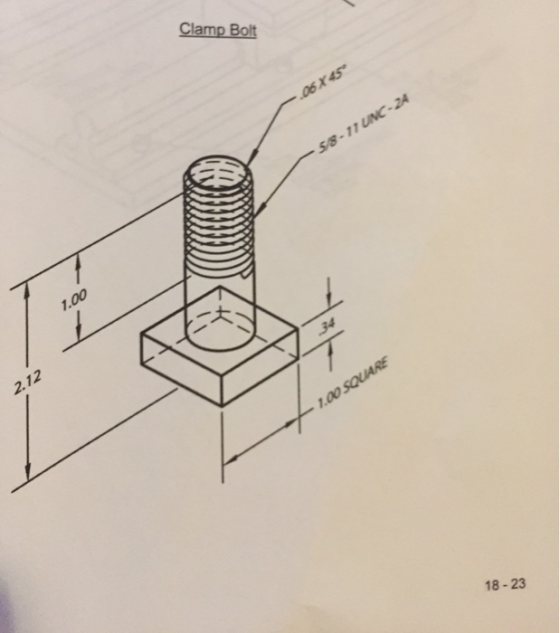

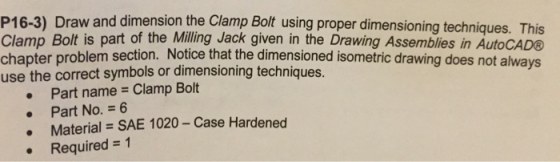

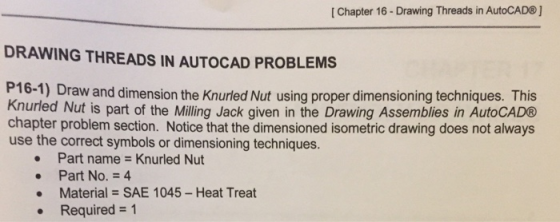

Knurled Nut 38 S/8-18 UNF-28 20 MEDIUM KUR 3X B19 25 10-24 UNC-28 AX 24 EQUALLY SPACED V-BOTTOM Clamp Bolt .06x 45 5/8-11 UNC-2ZA 1.00 2.12 34 7.00 SQUARE 18-23 Chapter 16- Drawing Threads in AutoCAD® DRAWING THREADS IN AUTOCAD PROBLEMS P16-1) Draw and dimension the Knurled Nut using proper dimensioning techniques. This Knurled Nut is part of the Milling Jack given in the Drawing Assemblies in AutoCAD® chapter problem section. Notice that the dimensioned isometric drawing does not always use the correct symbols or dimensioning techniques. Part name Knurled Nut Part No. 4 Material =SAE 1045- Heat Treat Required = 1 P16-3) Draw and dimension the Clamp Bolt using proper dimensioning techniques. This Clamp Bolt is part of the Milling Jack given in the Drawing Assemblies in AutoCAD chapter problem section. Notice that the dimensioned isometric drawing does not always use the correct symbols or dimensioning techniques. Part name = Clamp Bolt Part No. = 6 Material = SAE 1020- Case Hardened Required=1

Answer 1

Please rate the answer. Thank you.

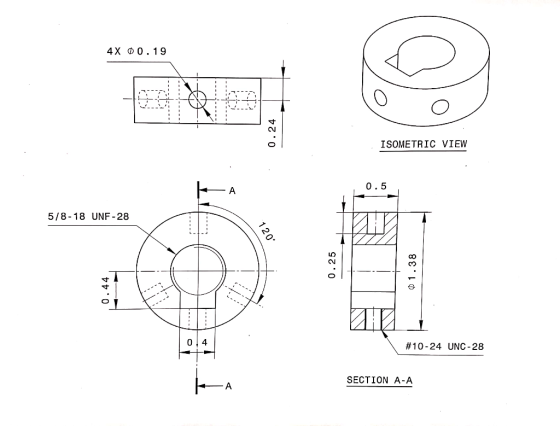

4X D 0.19 st ISOMETRIC VIEW 0.5 A 120 5/8-18 UNF-28 #10-24 UNC-28 04 SECTION A-A A 0.44 0.24 0.25 ¢1.38

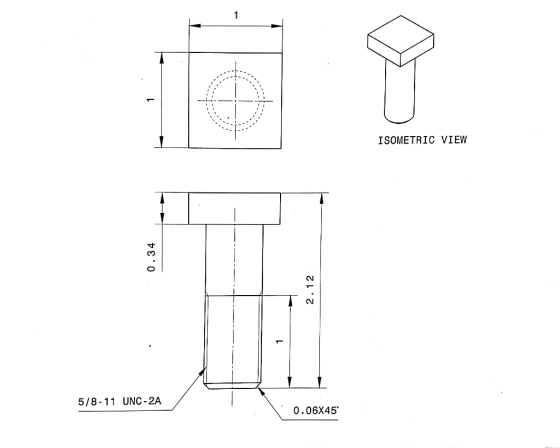

1 ISOMETRIC VIEW 5/8-11 UNC -2A 0.06X45 0.34 2.12
