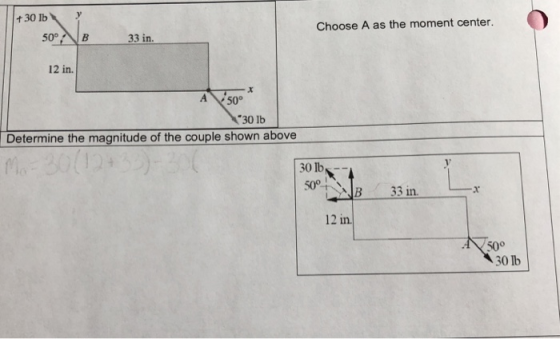

30 lby Choose A as the moment center. 33 in 12 in. A50° 30 lb Determine...

Question

Question

science physics

Answer 1

Answer #1

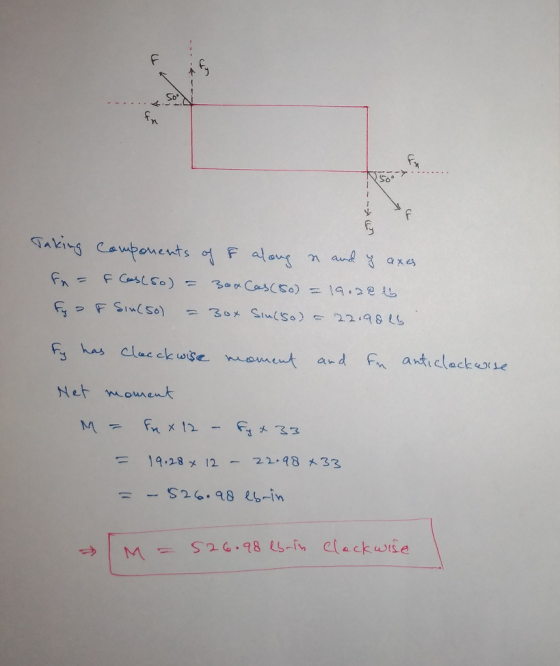

So* So F has Clueckwise Net rromenk = 19,28 x 12-22.18 33

Answer 2

Similar Homework Help Questions

The two forces of magnitude F 30 kN form a couple. Choose B as the moment...

The two forces of magnitude F 30 kN form a couple. Choose B as the moment center. The moment of a couple is the same -F 1.2 m about any point. Determine the corresponding couple-vector.
Determine the moment of the couple for the system shown below. The forces shown lie in...

Determine the moment of the couple for the system shown below. The forces shown lie in the x-y plane. d. None of the above a. -2400k^ ft-lb c. 2400k^ ft-lb b. -4800k^ ft-lb
30 lb For the picture shown: a) Determine the x and y components of each of...

30 lb For the picture shown: a) Determine the x and y components of each of the forces shown. Find the resultant force. 270 b) what is the magnitude and direction of the force at the connection point? 60° 45 35 lb 50 lb

Replace the force system acting on the post by a resultant force and couple moment at point O. Take F1= 350 lb and F2 = 230 lb . (Figure 1)

Replace the force system acting on the post by a resultant force and couple moment at point O. Take F1= 350 lb and F2 = 230 lb . (Figure 1) Part A Determine the magnitude of the resultant force. Part B Determine the angle between the resultant force and the a axis. Part C Determine the equivalent resultant couple moment about the point O.
Determine the resultant couple moment acting on the pipe assembly. Assume (Mc)1= 520 lb⋅ft , (Mc)2= 300 lb⋅ft and (Mc)3=...

Determine the resultant couple moment acting on the pipe assembly. Assume (Mc)1= 520 lb⋅ft , (Mc)2= 300 lb⋅ft and (Mc)3= 320 lb⋅ft (Figure 1)Enter the x, y and z components of the resultant couple moment separated by commas.(MC)R = lb⋅ft
Two couples act on the cantilevered beam as shown. Find the magnitude of F so that the resultant couple moment is 500 lb-ft.

Two couples act on the cantilevered beam as shown. Find the magnitude of F so that the resultant couple moment is 500 lb-ft.

A 20 ft.lb torque (moment) is applied to a 10 lb drum, which is rotating about...

A 20 ft.lb torque (moment) is applied to a 10 lb drum, which is rotating about its center. The drum has a radius of gyration of 1.5 ft. Determine the magnitude of its angular acceleration.
The 40kg uniform slender rod AB rests in the position shown when the constant couple moment of M ...

The 40kg uniform slender rod AB rests in the position shown when the constant couple moment of M is applied. Determine the magnitude of the moment M, so that 2 seconds after the start of the motion, the velocity of the center, G, will be 4 m/s. Neglect the mass of the rollers. The bar moves in the horizontal plane. Problem 6 (25 pts) The 40-kg uniform slender rod AB rests in the position shown when the constant couple moment...
850 lb 1000 lb 2. (50 points) Internal Forces: Shear and Moment Equations - Determine functions...

850 lb 1000 lb 2. (50 points) Internal Forces: Shear and Moment Equations - Determine functions for the shear V(x) and bending moment M(x) in the region 0 m <x<3 m and in the region 3 m <x< 4 m and in the region 4 m <x< 6 m where the x coordinate is measured starting from the left end of the beam at pin A. You'll need to first solve for the support reaction forces. Make sure to draw...

Question 6 10 pts Determine the reaction force (in lbs) and moment in lb-in) at the...

Question 6 10 pts Determine the reaction force (in lbs) and moment in lb-in) at the beam support B for the given loading when MB = 102 lb/in. 40 lb/in. A in. - - 6 in. Submit No new data to save. Last checked at 12:37pm
