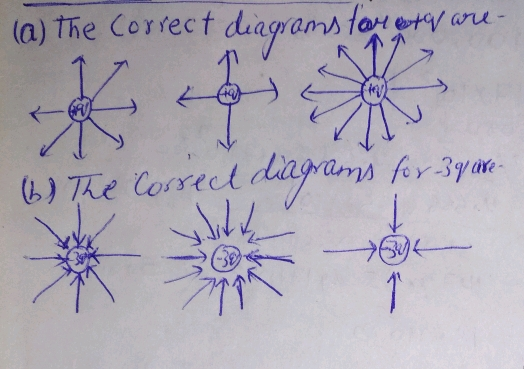

The top figure shows the electric field lines from a charge -q. a.)For the second group...
Homework Answers
Add Answer to:
The top figure shows the electric field lines from a charge -q. a.)For the second group...

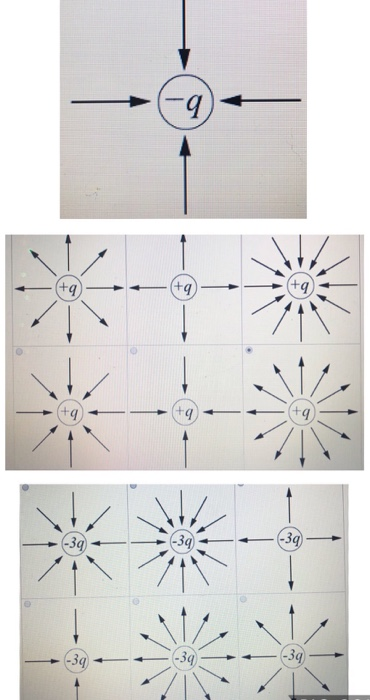

The figure below shows the electric field lines from a charge -q. Select the correct diagram...
The
figure below shows the electric field lines from a charge -q.
Select the correct diagram which represents the electric field
lines near a point charge +q.
9 9
the figure shows electric field lines near two electric point charges. if Q1=-3 nC, what is...
the figure shows electric field lines near two electric point
charges. if Q1=-3 nC, what is the value of Q2?
1. The figure shows electric field lines near two electric point charges. If oi 3 nC, what is the valu of Q? a, -6 nC c, 13 nC
how is the drawing suppose to be like? 3. (4 points) The diagram below shows the equipotential lines around a cluster of positive charge, Q. Draw electric field lines to show the force that a posi...
how is the drawing suppose to be like?
3. (4 points) The diagram below shows the equipotential lines around a cluster of positive charge, Q. Draw electric field lines to show the force that a positivetest charge will experience if placed at points A and S B. Assume that point B is 3x farther from the charge than point A. 98 lenger than at B
3. (4 points) The diagram below shows the equipotential lines around a cluster of positive...
The figure shows the electric field lines near two charges qi (red) and (1096) Problem 8:...
The figure shows the electric field lines near two charges qi (red) and (1096) Problem 8: 92 (blue) Otheexpe 50% Part (a) What is the ratio of their charges? Grade Sur Deductions Potential 91/q2 = cotan sinacos0 atan acotan0sinh coshO tanh0cotanh0 Submissic Attempts s (4% per a detailed、 e Degrees Radians 1giveup!」 Submit Hint Hints: 0% deduction per hint. Hints remaining:- Feedback: 0% deduction per feedback. ム50% Part (b) Select the diagram which represents the electric field lines a long...
15. A point charge Q is located a short distance from a point charge 3Q, and...
15. A point charge Q is located a short distance from a point charge 3Q, and no other charges or electric fields are present. If the magnitude of the electric force on Q is F, what is the electric force on 3Q? 16) the figure below shows two unequal point charges, q and Q, of opposite sign. Charge Q has greater magnitude than charge q. In which of the regions X, Y, Z will there be a point at which...
Electric Field Lines and Potential The figure shows the E-field in the plane of two point...
Electric Field Lines and Potential The figure shows the E-field in the plane of two point charges. Determine for each of the following statements whether it is correct or incorrect. 2 <a The E-field at 'a' points directly toward Q2. rect The net charge Q1+Q2 is negative The E-field at 'd' points south. The electric potential (volts) is larger at 'e' than 'd'. The E-field at 'c is zero. The magnitude of the E-field at 'e' is larger than at...
Electric Field Lines and Potential The figure shows the E-field in the plane of two point...
Electric Field Lines and Potential The figure shows the E-field in the plane of two point charges. Determine for each of the following statements whether it is correct or incorrect. 2 Incorrect The electric potential (volts) is larger at 'c' than 'e'. Incorrect The net charge Q1+Q2 is negative. Correct The E-field at 'b' points north. Incorrect The E-field at 'c is zero. Correct The E-field at 'b' points directly toward Q2. Incorrect The magnitude of the E-field at 'a'...
Problem 30 only Figure P15.30 shows the electric field lines for two point charges separated by...
Problem 30 only
Figure P15.30 shows the electric field lines for two point charges separated by a small distance. Determine the ratio q_1/q_2. What are the signs of q_1 and q_2? Sketch the electric field lines around an isolated point charge q > 0. Sketch the electric field pattern around an isolated
Electric Field Lines and Potential The figure shows the E-field in the plane of two point...
Electric Field Lines and Potential The figure shows the E-field in the plane of two point charges. Determine for each of the following statements whether it is correct or incorrect. 2 The E-field at 'c' is zero. The net charge Q1+Q2 is positive. The E-field at 'a' points directly toward Q1. The E-field at 'b' points north. The magnitude of the E-field at 'a' is larger than at 'd'. The electric potential (volts) is larger at 'e' than 'd' Submit...
The top left diagram below shows a 1-C positive charge placed in a uniform external electric field. The electric field...
The top left diagram below shows a 1-C positive charge placed in
a uniform external electric field. The electric field in which the
charge is placed is represented by field lines (drawn in red), and
the resulting electric force on the charge is represented by the
blue vector. Suppose the 1-C charge is removed, and is replaced, in
turn, by each of the charges shown in the other three diagrams
below. Assuming that the external electric field remains the same,...
The
figure below shows the electric field lines from a charge -q.
Select the correct diagram which represents the electric field
lines near a point charge +q.
9 9
the figure shows electric field lines near two electric point
charges. if Q1=-3 nC, what is the value of Q2?
1. The figure shows electric field lines near two electric point charges. If oi 3 nC, what is the valu of Q? a, -6 nC c, 13 nC
how is the drawing suppose to be like?
3. (4 points) The diagram below shows the equipotential lines around a cluster of positive charge, Q. Draw electric field lines to show the force that a positivetest charge will experience if placed at points A and S B. Assume that point B is 3x farther from the charge than point A. 98 lenger than at B
3. (4 points) The diagram below shows the equipotential lines around a cluster of positive...
The figure shows the electric field lines near two charges qi (red) and (1096) Problem 8: 92 (blue) Otheexpe 50% Part (a) What is the ratio of their charges? Grade Sur Deductions Potential 91/q2 = cotan sinacos0 atan acotan0sinh coshO tanh0cotanh0 Submissic Attempts s (4% per a detailed、 e Degrees Radians 1giveup!」 Submit Hint Hints: 0% deduction per hint. Hints remaining:- Feedback: 0% deduction per feedback. ム50% Part (b) Select the diagram which represents the electric field lines a long...
Electric Field Lines and Potential The figure shows the E-field in the plane of two point charges. Determine for each of the following statements whether it is correct or incorrect. 2 <a The E-field at 'a' points directly toward Q2. rect The net charge Q1+Q2 is negative The E-field at 'd' points south. The electric potential (volts) is larger at 'e' than 'd'. The E-field at 'c is zero. The magnitude of the E-field at 'e' is larger than at...
Electric Field Lines and Potential The figure shows the E-field in the plane of two point charges. Determine for each of the following statements whether it is correct or incorrect. 2 Incorrect The electric potential (volts) is larger at 'c' than 'e'. Incorrect The net charge Q1+Q2 is negative. Correct The E-field at 'b' points north. Incorrect The E-field at 'c is zero. Correct The E-field at 'b' points directly toward Q2. Incorrect The magnitude of the E-field at 'a'...
Problem 30 only
Figure P15.30 shows the electric field lines for two point charges separated by a small distance. Determine the ratio q_1/q_2. What are the signs of q_1 and q_2? Sketch the electric field lines around an isolated point charge q > 0. Sketch the electric field pattern around an isolated
Electric Field Lines and Potential The figure shows the E-field in the plane of two point charges. Determine for each of the following statements whether it is correct or incorrect. 2 The E-field at 'c' is zero. The net charge Q1+Q2 is positive. The E-field at 'a' points directly toward Q1. The E-field at 'b' points north. The magnitude of the E-field at 'a' is larger than at 'd'. The electric potential (volts) is larger at 'e' than 'd' Submit...
The top left diagram below shows a 1-C positive charge placed in
a uniform external electric field. The electric field in which the
charge is placed is represented by field lines (drawn in red), and
the resulting electric force on the charge is represented by the
blue vector. Suppose the 1-C charge is removed, and is replaced, in
turn, by each of the charges shown in the other three diagrams
below. Assuming that the external electric field remains the same,...
