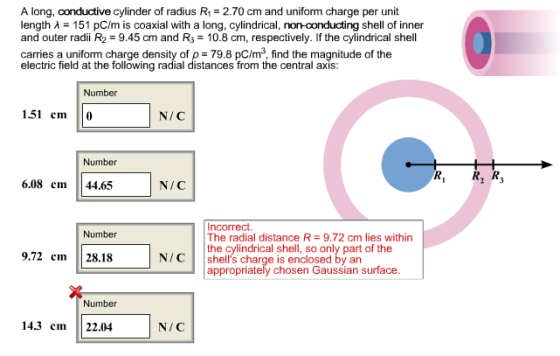

A long, conductive cylinder of radius R 2.70 cm and uniform charge per unit length 151...
A long, conductive cylinder of radius ?1=3.10 cm and uniform charge per unit length ?=453 pC/m...
A long, conductive cylinder of radius ?1=3.10 cm and uniform charge per unit length ?=453 pC/m is coaxial with a long, cylindrical, nonconducting shell of inner and outer radii ?2=10.9 cm and ?3=12.4 cm, respectively. If the cylindrical shell carries a uniform charge density of ?=53.6 pC/m3, find the magnitude of the electric field at each radial distance indicated. a. 1.27cm b. 8.68 cm c. 11.2 cm
A long, conductive cylinder of radius R1 = 3.00 cm and uniform charge per unit length λ = 604 pC/m is coaxial with a long, cylindrical, non-conducting shell of inner and outer radii R2 = 10.5 cm and R3 = 12.0 cm, respectively
A long, conductive cylinder of radius R1 = 3.00 cm and uniform charge per unit length λ = 604 pC/m is coaxial with a long, cylindrical, non-conducting shell of inner and outer radii R2 = 10.5 cm and R3 = 12.0 cm, respectively. If the cylindrical shell carries a uniform charge density of p = 79.8 pC/m, find the magnitude of the electric field at the following radial distances from the central axis:
A charge of uniform linear density 3.00 nC/m is distributed along a long, thin, nonconducting rod. The rod is coaxial with a long conducting cylindrical shell (inner radius = 6.00 cm, outer radius = 10.8 cm)
Chapter 23, Problem 028 GO A charge of uniform linear density 3.00
nC/m is distributed along a long, thin, nonconducting rod. The rod
is coaxial with a long conducting cylindrical shell (inner radius =
6.00 cm, outer radius = 10.8 cm). The net charge on the shell is
zero. (a) What is the magnitude of the electric field at distance r
= 16.8 cm from the axis of the shell? What is the surface charge
density on the (b) inner and...
A charge of uniform linear density 2.40 nC/m is distributed along a long, thin, nonconducting rod....
A charge of uniform linear density 2.40 nC/m is distributed along a long, thin, nonconducting rod. The rod is coaxial with a long conducting cylindrical shell (inner radius 5.80 cm, outer radius = 9.20 cm), The net charge on the shell is zero. (a) What is the magnitude of the electric field at distance r = 15.0 cm from the axis of the shell? What is the surface charge density on the (b) inner and (c) outer surface of the...
A charge of uniform linear density 3.00 nC/m is distributed along a long, thin, nonconducting rod....
A charge of uniform linear density 3.00 nC/m is distributed
along a long, thin, nonconducting rod. The rod is coaxial with a
long conducting cylindrical shell (inner radius = 4.40 cm, outer
radius = 10.6 cm). The net charge on the shell is zero. (a) What is
the magnitude (in N/C) of the electric field at distance r = 15.0
cm from the axis of the shell? What is the surface charge density
on the (b) inner and (c) outer...
A cylindrical shell of length 160 m and radius 8 cm carries a uniform surface charge...
A cylindrical shell of length 160 m and radius 8 cm carries a uniform surface charge density of σ = 11 nC/m2. (a) What is the total charge on the shell? nC Find the electric field at the ends of the following radial distances from the long axis of the cylinder. (b) r = 4 cm N/C (c) r = 7.9 cm N/C (d) r = 8.1 cm N/C (e) r = 12 cm N/C
A charge of uniform linear density 2.00 nC/m is distributed along a long, thin, nonconducting rod.
A charge of uniform linear density 2.00 nC/m is distributed along a long, thin, nonconducting rod. The rod is coaxial with a long conducting cylindrical shell (inner radius = 4.40 cm, outer radius = 10.2 cm). The net charge on the shell is zero. (a) What is the magnitude of the electric field at distance r = 14.6 cm from the axis of the shell? What is the surface charge density on the (b) inner and (c) outer surface of...
A charge of uniform linear density 2.0 nC/m is distributed along a long, thin, nonconducting rod.
A charge of uniform linear density 2.0 nC/m is distributed along a long, thin, nonconducting rod. The rod is coaxial with a long conducting cylindrical shell (inner radius = 5.0 cm, outer radius 10 cm). The net charge on the shell is zero. (a) What is the magni- tude of the electric field 15 cm from the axis of the shell? What is the surface charge density on the (b) inner and (c) outer surface of the shell?
Figure (a) shows a narrow charged solid cylinder that is coaxial with a larger charged cylindrical...
Figure (a) shows a narrow charged solid cylinder that
is coaxial with a larger charged cylindrical shell. Both are
nonconducting and thin and have uniform surface charge densities on
their outer surfaces. Figure (b) gives the radial
component E of the electric field versus radial distance
r from the common axis. The vertical axis scale is set by
Es = 3.6 × 103 N/C. What is the
linear charge density of the shell?
E 0 14.4 -ES r(cm)
A thin nonconducting spherical shell of radius 6 cm carries a uniform surface charge density σ = 9 nC/m2.
A thin nonconducting spherical shell of radius 6 cm carries a uniform surface charge density σ = 9 nC/m2. (a) What is the total charge on the shell? Find the electric field at the following radii (b) r = 2.1 cm N/C (c) r = 5.9 cm N/C (d) r = 6.1 cm N/C (e) r = 18 cm N/C
A charge of uniform linear density 2.40 nC/m is distributed along a long, thin, nonconducting rod. The rod is coaxial with a long conducting cylindrical shell (inner radius 5.80 cm, outer radius = 9.20 cm), The net charge on the shell is zero. (a) What is the magnitude of the electric field at distance r = 15.0 cm from the axis of the shell? What is the surface charge density on the (b) inner and (c) outer surface of the...
A charge of uniform linear density 3.00 nC/m is distributed
along a long, thin, nonconducting rod. The rod is coaxial with a
long conducting cylindrical shell (inner radius = 4.40 cm, outer
radius = 10.6 cm). The net charge on the shell is zero. (a) What is
the magnitude (in N/C) of the electric field at distance r = 15.0
cm from the axis of the shell? What is the surface charge density
on the (b) inner and (c) outer...
Figure (a) shows a narrow charged solid cylinder that
is coaxial with a larger charged cylindrical shell. Both are
nonconducting and thin and have uniform surface charge densities on
their outer surfaces. Figure (b) gives the radial
component E of the electric field versus radial distance
r from the common axis. The vertical axis scale is set by
Es = 3.6 × 103 N/C. What is the
linear charge density of the shell?
E 0 14.4 -ES r(cm)
