Question

can you make this on solid works and provide the link so that im able to open it on solid works

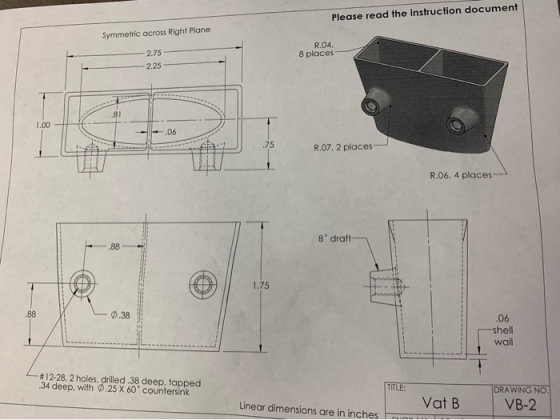

Please read the instruction document Symmetric across Right Plane R.04 8 places 2.75 2.25 81 1,00 .06 75 R.07, 2 places R.06, 4 places 8 draft 88 1.75 88 0.38 .06 shell wall # 12-28, 2 holes, drilled .38 deep, tapped 34 deep, with 0.25 X 60 countersink TITLE DRAWING NO. Vat B VB-2 Linear dimensions are in inches

Answer 1

Link to download the part

https://drive.google.com/file/d/13cpm8sDeonL4Oxy2YKNQzgnClsxpxDvQ/view?usp=sharing

Could n't create the tapped hole due to software issue, but u can follow below instruction

go to -Advanced hole wizard -create 0.25x60 dia ,0.38 deep counter sunk hole and to that profile u can apply tapping by selecting suitable options
