Homework Answers
Add Answer to:

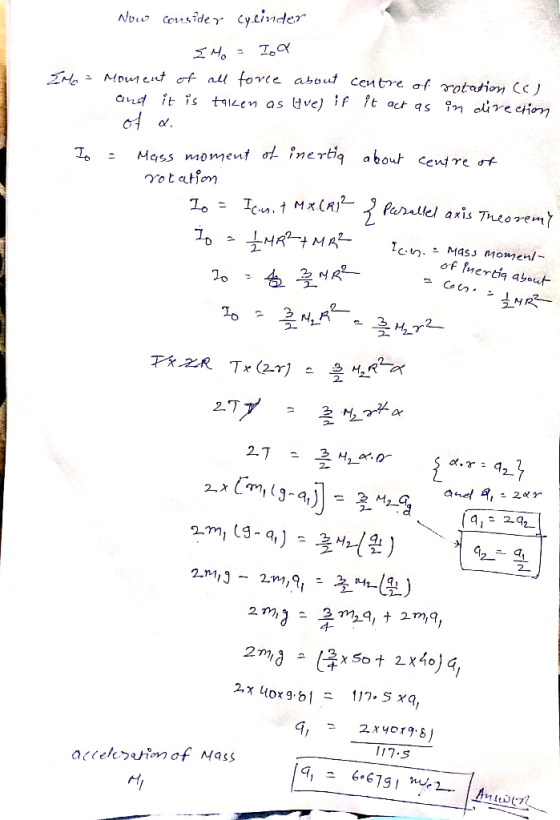

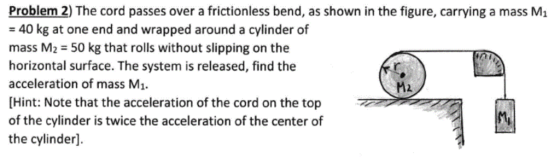

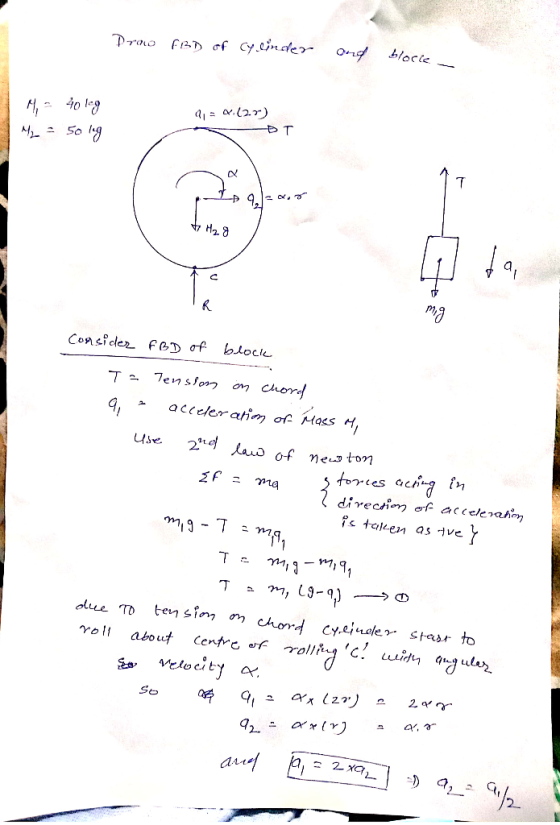

Problem 2) The cord passes over a frictionless bend, as shown in the figure, carrying =...
Two masses are connected by a cord that passes over a pulley as shown in the...
Two masses are connected by a cord that passes over a pulley
as shown in the figure. The pulley and cord have negligible mass
and m1 (2.0 kg) moves on a horizontal surface without friction, m2
(2.0 kg) is suspended vertically. What is the ACCELERATION of
m1?
Question4 2/2 pts Two masses are connected by a cord that passes over a pulley as shown in the figure. The pulley and cord have negligible mass and mı (2.0 kg) moves on...
QUESTION 18 Two masses are suspended by cord that passes over a frictionless pulley with negligible...
QUESTION 18 Two masses are suspended by cord that passes over a frictionless pulley with negligible mass. The cord also has negligible mass. One of the masses, m1, has a mass of 6.00 kg and the other mass, m2, has a mass of 3.71 kg. What is the magnitude of the acceleration of mass m2, in units of m/s2?
The figure shows a container of mass m2 = 2.6 kg connected to a block of mass m2 by a cord looped around a frictionless pulley
The figure shows a container of mass m2 = 2.6 kg connected to a block of mass m2 by a cord looped around a frictionless pulley. The cord and pulley have negligible mass. When the container is released from rest, it accelerates at 0.88 m/s2 across the horizontal frictionless surface. What are (a) the tension in the cord and (b) mass m2?
One end of a cord is attached to and wrapped around a solid, frictionless cylinder of...
One end of a cord is attached to and wrapped around a solid, frictionless cylinder of mass M=4.1 kg. The other end of the cord is attached to a bucket of mass 1.1 kg. A brake applied to the cylinder is released, allowing the bucket to fall downward. Find the acceleration of the bucket in m/s2.
A mass m1 is connected by a light string that passes over a pulley of mass...
A mass m1 is connected by a light string that passes over a pulley of mass M to a mass m2 sliding on a frictionless horizontal surface as shown in the figure. There is no slippage between the string and the pulley. The pulley has a radius of 25.0 cm and a moment of inertia of ½ MR2. If m1 is 1.00 kg, m2 is 2.00 kg, and M is 4.00 kg, then what is the acceleration of m1?
Two blocks of masses m1 and m2 are connected by a light cord that passes over...
Two blocks of masses m1 and m2 are connected by a light cord that passes over a pulley of mass M, as shown. Block m2 slides on a frictionless horizontal surface. The blocks and pulley are initially at rest. When m1 is released, the blocks accelerate and the pulley rotates. The total angular momentum of the system of the two blocks and the pulley relative to the axis of rotation of the pulley isthe same at all times.proportional to I1,...
In the figure, two blocks, of mass m1 = 308 g and m2 = 378 g,...
In the figure, two blocks, of mass m1 = 308 g and m2 = 378 g, are connected by a massless cord that is wrapped around a uniform disk of mass M = 513 g and radius R = 11.1 cm. The disk can rotate without friction about a fixed horizontal axis through its center; the cord cannot slip on the disk. The system is released from rest. Find (a) the magnitude of the acceleration of the blocks, (b) the...
In the figure, two blocks, of mass m1 = 376 g and m2 = 639 g,...
In the figure, two blocks, of mass m1 = 376
g and m2 = 639 g, are connected by a massless
cord that is wrapped around a uniform disk of mass M = 534
g and radius R = 11.9 cm. The disk can rotate without
friction about a fixed horizontal axis through its center; the cord
cannot slip on the disk. The system is released from rest. Find
(a) the magnitude of the acceleration of the
blocks, (b) the...
A 12.0-kg box resting on a horizontal, frictionless surface is attached to a 5.00-kg weight by a thin, light wire that passes without slippage over a frictionless pulley (the figure (Figure 1) )
A 12.0-kg box resting on a horizontal, frictionless surface is
attached to a 5.00-kg weight by a thin, light wire that passes
without slippage over a frictionless pulley (the figure (Figure 1)
). The pulley has the shape of a uniform solid disk of mass
2.10kg and diameter 0.440m .After the system is released, find the horizontal tension in the
wire.After the system is released, find the vertical tension in the
wire.After the system is released, find the acceleration of...
The figure shows two blocks connected by a cord (of negligible mass) that passes over a...
The figure shows two blocks connected by a cord (of negligible mass) that passes over a frictionless pulley (also of negligible mass). The arrangement is known as Atwood's machine. Block 1 has mass m2 = 1.00 kg; block 2 has mass m2 = 3.30 kg. What are (a) the magnitude of the blocks' acceleration and (b) the tension in the cord? IN (a) Number Units m/s2 (b) Number Units N
Two masses are connected by a cord that passes over a pulley
as shown in the figure. The pulley and cord have negligible mass
and m1 (2.0 kg) moves on a horizontal surface without friction, m2
(2.0 kg) is suspended vertically. What is the ACCELERATION of
m1?
Question4 2/2 pts Two masses are connected by a cord that passes over a pulley as shown in the figure. The pulley and cord have negligible mass and mı (2.0 kg) moves on...
In the figure, two blocks, of mass m1 = 376
g and m2 = 639 g, are connected by a massless
cord that is wrapped around a uniform disk of mass M = 534
g and radius R = 11.9 cm. The disk can rotate without
friction about a fixed horizontal axis through its center; the cord
cannot slip on the disk. The system is released from rest. Find
(a) the magnitude of the acceleration of the
blocks, (b) the...
The figure shows two blocks connected by a cord (of negligible mass) that passes over a frictionless pulley (also of negligible mass). The arrangement is known as Atwood's machine. Block 1 has mass m2 = 1.00 kg; block 2 has mass m2 = 3.30 kg. What are (a) the magnitude of the blocks' acceleration and (b) the tension in the cord? IN (a) Number Units m/s2 (b) Number Units N
