Homework Answers
Add Answer to:

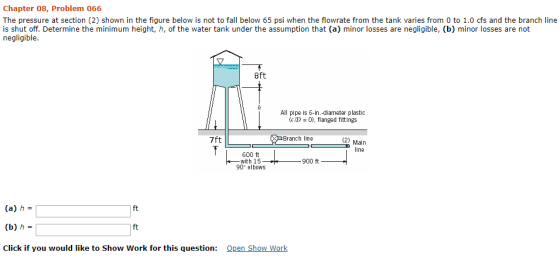

Chapter 08, Problem 066 The pressure at section (2) shown in the fiqure below is not...
The pressure at section (2) shown in the figure below is not to fall below 65...

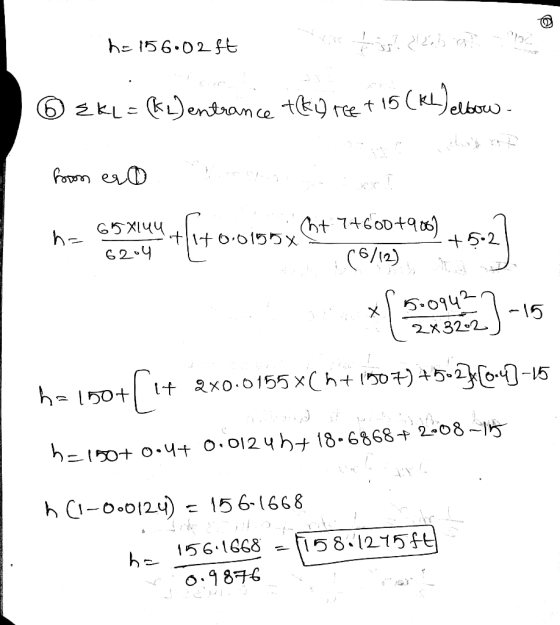

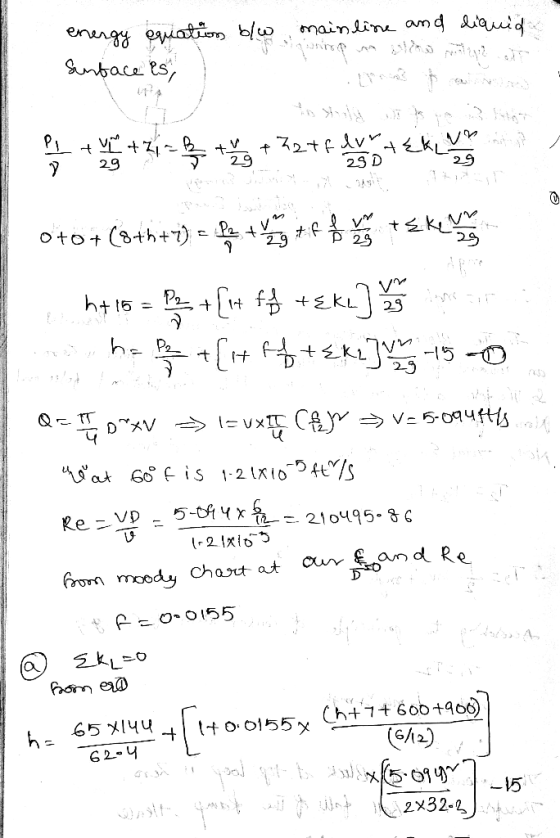

The pressure at section (2) shown in the figure below is not to fall below 65 psi when the flowrate from the tank varies from 0 to 1.0 cfs and the branch line is shut off. Determine the minimum height, h, of the water tank under the assumption that (a) minor losses are negligible, (b) minor losses are not negligible. 10ft All pipe is 6-n.-diameter plastic ElD, flanged fittings 4ft Branch lin (21 Main line 600 ft with 15 90...
The pressure at section (2) shown in the figure is not to fall below 50 psi...
The pressure at section (2) shown in the figure is not to fall below 50 psi when the flowrate from the tank varies from 0 to 1.0 cfs and the branch line is shut off. Determine the minimum height h of the water tank (note: minor losses need to be considered). 10 ft h All pipe is 6-in.-diameter plastic (€/D = 0), flanged fittings 6 ft Branch line (2) Main 1 line 2000 ft 1000 ft with 10 90-degree elbows...
7. A 2 inch diameter hose shown in the figure below can withstand a maximum pressure...
7. A 2 inch diameter hose shown in the figure below can withstand a maximum pressure of 200 psi gage before it ruptures. Determine the maximum length of the hose, I, if the friction factor is 0.022 and the flowrate is 0.020 ft'/s. Neglect only the minor losses. Nozzle tip diameter 0.30 in. 0.010 cfs D-0.50 in 10 ft s ft Pump
A pump transports water from Tank 1 to Tank 2 through a constant-diameter piping system as...
A pump transports water from Tank 1 to Tank 2 through a constant-diameter piping system as shown below (not to scale). The flow rate is controlled by two gate valves, the gate valve I controls the main pipeline, while the gate valve II controls the loop line from T-joint A to T-joint B. All pipes are galvanized steel pipe of diameter D = 4 in. It has a total length of Li2= 620 ft from tank 1 to tank 2....
A turbo pump transfers water from tank 1 to tank to tank 2 as shown in...
A turbo pump transfers water from tank 1 to tank to tank 2 as
shown in the picture below. The diameter of the piping system is D=
4in and the total length of pipes is L=620 ft. the elevation
difference is Z1-Z2= 30ft. Use the chart for KL values.
a) determine the flow rate (Q)
b) power of the pump in HP
Note that you can write out both mass balance equation and energy equation of the head form for...
A turbo pump transfers water from tank 1 to tank to tank 2 as shown in...
A turbo pump transfers water from tank 1 to tank to tank 2 as
shown in the picture below. The diameter of the piping system is D=
4in and the total length of pipes is L=620 ft. the elevation
difference is Z1-Z2= 30ft. Use the chart for KL values.
a) determine the flow rate (Q)
b) power of the pump in HP
Note that you can write out both mass balance equation and energy equation of the head form for...
The pressure at section (2) shown in the figure below is not to fall below 65 psi when the flowrate from the tank varies from 0 to 1.0 cfs and the branch line is shut off. Determine the minimum height, h, of the water tank under the assumption that (a) minor losses are negligible, (b) minor losses are not negligible. 10ft All pipe is 6-n.-diameter plastic ElD, flanged fittings 4ft Branch lin (21 Main line 600 ft with 15 90...
The pressure at section (2) shown in the figure is not to fall below 50 psi when the flowrate from the tank varies from 0 to 1.0 cfs and the branch line is shut off. Determine the minimum height h of the water tank (note: minor losses need to be considered). 10 ft h All pipe is 6-in.-diameter plastic (€/D = 0), flanged fittings 6 ft Branch line (2) Main 1 line 2000 ft 1000 ft with 10 90-degree elbows...
7. A 2 inch diameter hose shown in the figure below can withstand a maximum pressure of 200 psi gage before it ruptures. Determine the maximum length of the hose, I, if the friction factor is 0.022 and the flowrate is 0.020 ft'/s. Neglect only the minor losses. Nozzle tip diameter 0.30 in. 0.010 cfs D-0.50 in 10 ft s ft Pump
A pump transports water from Tank 1 to Tank 2 through a constant-diameter piping system as shown below (not to scale). The flow rate is controlled by two gate valves, the gate valve I controls the main pipeline, while the gate valve II controls the loop line from T-joint A to T-joint B. All pipes are galvanized steel pipe of diameter D = 4 in. It has a total length of Li2= 620 ft from tank 1 to tank 2....
A turbo pump transfers water from tank 1 to tank to tank 2 as
shown in the picture below. The diameter of the piping system is D=
4in and the total length of pipes is L=620 ft. the elevation
difference is Z1-Z2= 30ft. Use the chart for KL values.
a) determine the flow rate (Q)
b) power of the pump in HP
Note that you can write out both mass balance equation and energy equation of the head form for...
A turbo pump transfers water from tank 1 to tank to tank 2 as
shown in the picture below. The diameter of the piping system is D=
4in and the total length of pipes is L=620 ft. the elevation
difference is Z1-Z2= 30ft. Use the chart for KL values.
a) determine the flow rate (Q)
b) power of the pump in HP
Note that you can write out both mass balance equation and energy equation of the head form for...
