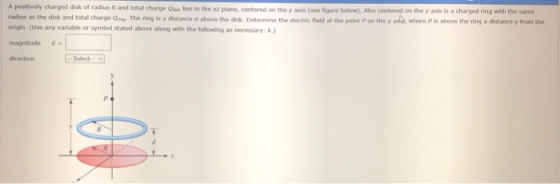

A positively charged disk of radius R and total charge Qsi lies in the xz plane,...

Question

Question

science physics

Answer 1

Answer #1

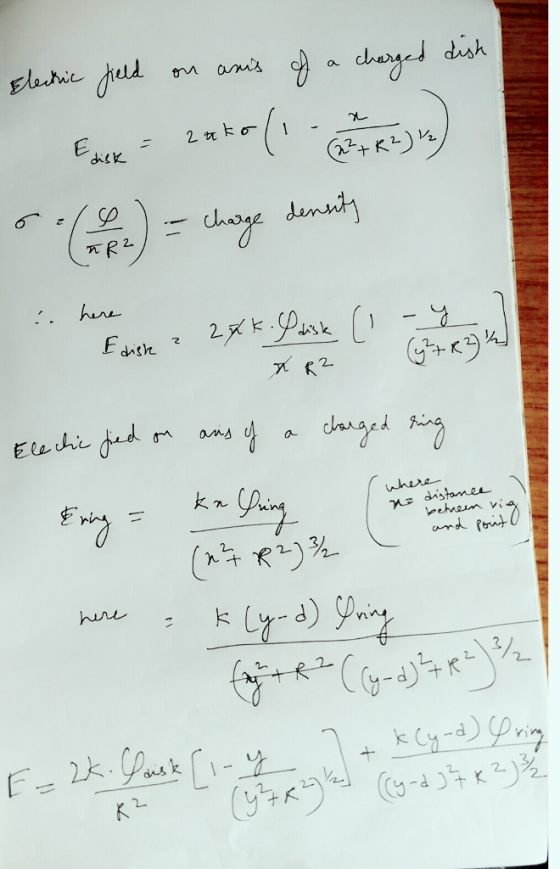

Electric field on the axis of the ring = kxQ_r/ (y² + r²)^3/2

where y is distance from the center of the ring , r is the radius of the ring.

ん , dish

Answer 2
