Homework Answers
Add Answer to:

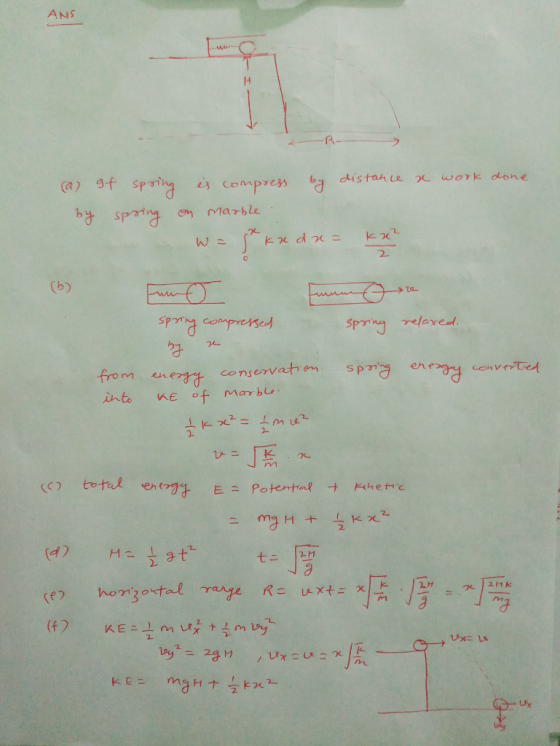

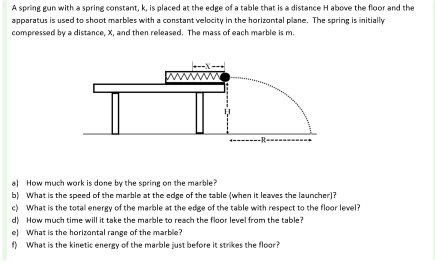

A spring un with a spring constant, k, is placed at the edge of a table...
A 0.458-kg box is placed in contact with a spring of stiffness 4.657×102 N/m. The spring...
A 0.458-kg box is placed in contact with a spring of stiffness 4.657×102 N/m. The spring is compressed 1.06×10-1 m from its unstrained length. The spring is then released, the block slides across a frictionless tabletop, and it flies through the air. The tabletop is a height of 1.400 m above the floor. What is the potential energy stored in the spring when it is compressed? What is the kinetic energy of the block just before it leaves the table...
help 2. Mass mi 10.0 kg is initially held against the spring of spring constant k...
help
2. Mass mi 10.0 kg is initially held against the spring of spring constant k 100 N/m. The spring is compressed a distance x 0.45 m. When released, m, is fired towards a block of mass m 4.4 kg initially at rest at the edge of a horizontal, frictionless table of height h- 0.75 m. A ramp is placed at the end of the table. The ramp has a coefficient of kinetic friction μ-0.25 and is a distance d...
2. Mass mi -10.0 kg is initially held against the spring of spring constant k-100 N/m....
2. Mass mi -10.0 kg is initially held against the spring of spring constant k-100 N/m. The spring is compressed a distance x 0.45 m. When released, m is fired towards a block of mass m2-4.4 kg initially at rest at the edge of a horizontal, frictionless table of height h-0.75 m. A ramp is placed at the end of the table. The ramp has a coefficient of kinetic friction μ.-0.25 and is a distance d-1.06 m long. The blocks...
A 20.0-g object is placed against the free end of a spring (with spring constant k...
A 20.0-g object is placed against the free end of a spring (with spring constant k equal to 25.0 N/m) that is compressed 10.0 cm. Once released, the object slides 1.25 m across the tabletop and eventually lands 0.61 m from the edge of the table on the floor, as shown in the figure. Calculate the coefficient of friction between the table and the object. The sliding distance includes the compression of the spring and the tabletop is 1.00 m...
A child's toy consists of a block that attaches to a table with a suction cup,...
A child's toy consists of a block that attaches to a table with
a suction cup, a spring connected to that block, a ball, and a
launching ramp. (Figure 1)The spring has a spring constant k, the
ball has a mass m, and the ramp rises a height y above the table,
the surface of which is a height H above the floor. Initially, the
spring rests at its equilibrium length. The spring then is
compressed a distance s, where...
Problem 5 A spring with a spring constant k=200 N/m is used as a launcher for...
Problem 5 A spring with a spring constant k=200 N/m is used as a launcher for a small block whose mass is 10 g. The block is placed against the compressed spring in a horizontal arrangement on a smooth horizontal surface. The spring, with the block, is compressed 5 cm and then released. a) Find the speed of the block just as it leaves the spring b) The block encounters a rough surface as it leaves the spring. How much...
A 0.200 kg block of ice is placed against a horizontal, compressed spring mounted on a...
A 0.200 kg block of ice is placed against a horizontal, compressed spring mounted on a horizontal tabletop that is 1.10 m above the floor. The spring has force constant 1950 N/m and is initially compressed 0.045 m. The mass of the spring is negligible. The spring is released, and the block slides along the table, goes off the edge, and travels to the floor. If there is negligible friction between the block of ice and the tabletop, what is...
A spring is used to fire a 100-g block horizontally. The spring has a spring constant...
A spring is used to fire a 100-g block horizontally. The spring has a spring constant of 20 N/m and is initially compressed by 5.0 cm. The block is initially at rest. a) What is the initial elastic potential energy? b) The spring is released. The block leaves the spring when the spring is at its relaxed state. What is the kinetic energy of the block as it leaves the spring? c) After the block leaves the spring, it enter...
Springing Off the Table Due this Friday, Nov 13 at 11:59 pm (EST) A 0.272-kg box...
Springing Off the Table
Due this Friday, Nov 13 at 11:59 pm (EST)
A 0.272-kg box is placed in contact with a spring of stiffness
4.352×102 N/m. The spring is compressed 1.08×10-1 m from its
unstrained length. The spring is then released, the block slides
across a frictionless tabletop, and it flies through the air. The
tabletop is a height of 1.060 m above the floor.
[mass_spring_table]
(the drawing is not to scale) What is the potential energy stored
in...
In the figure, a 2.6 kg block is accelerated from rest by a compressed spring of...
In the figure, a 2.6 kg block is accelerated from rest by a
compressed spring of spring constant 660 N/m. The block leaves the
spring at the spring's relaxed length and then travels over a
horizontal floor with a coefficient of kinetic friction
?k = 0.272. The frictional force stops the
block in distance D = 7.9 m. What are (a)
the increase in the thermal energy of the block
In the figure, a 2.6 kg block is accelerated from...
help
2. Mass mi 10.0 kg is initially held against the spring of spring constant k 100 N/m. The spring is compressed a distance x 0.45 m. When released, m, is fired towards a block of mass m 4.4 kg initially at rest at the edge of a horizontal, frictionless table of height h- 0.75 m. A ramp is placed at the end of the table. The ramp has a coefficient of kinetic friction μ-0.25 and is a distance d...
2. Mass mi -10.0 kg is initially held against the spring of spring constant k-100 N/m. The spring is compressed a distance x 0.45 m. When released, m is fired towards a block of mass m2-4.4 kg initially at rest at the edge of a horizontal, frictionless table of height h-0.75 m. A ramp is placed at the end of the table. The ramp has a coefficient of kinetic friction μ.-0.25 and is a distance d-1.06 m long. The blocks...
A child's toy consists of a block that attaches to a table with
a suction cup, a spring connected to that block, a ball, and a
launching ramp. (Figure 1)The spring has a spring constant k, the
ball has a mass m, and the ramp rises a height y above the table,
the surface of which is a height H above the floor. Initially, the
spring rests at its equilibrium length. The spring then is
compressed a distance s, where...
Problem 5 A spring with a spring constant k=200 N/m is used as a launcher for a small block whose mass is 10 g. The block is placed against the compressed spring in a horizontal arrangement on a smooth horizontal surface. The spring, with the block, is compressed 5 cm and then released. a) Find the speed of the block just as it leaves the spring b) The block encounters a rough surface as it leaves the spring. How much...
Springing Off the Table
Due this Friday, Nov 13 at 11:59 pm (EST)
A 0.272-kg box is placed in contact with a spring of stiffness
4.352×102 N/m. The spring is compressed 1.08×10-1 m from its
unstrained length. The spring is then released, the block slides
across a frictionless tabletop, and it flies through the air. The
tabletop is a height of 1.060 m above the floor.
[mass_spring_table]
(the drawing is not to scale) What is the potential energy stored
in...
In the figure, a 2.6 kg block is accelerated from rest by a
compressed spring of spring constant 660 N/m. The block leaves the
spring at the spring's relaxed length and then travels over a
horizontal floor with a coefficient of kinetic friction
?k = 0.272. The frictional force stops the
block in distance D = 7.9 m. What are (a)
the increase in the thermal energy of the block
In the figure, a 2.6 kg block is accelerated from...
