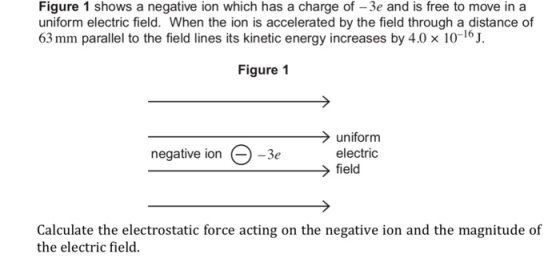

Figure 1 shows a negative ion which has a charge of -3e and is free to...
• The figure shows the essentials of a mass spectrometer, which can be used to measure...
• The figure shows the essentials of a mass spectrometer, which can be used to measure the mass of an ion; an ion of mass m (to be measured) and charge q is produced in source S. The initially stationary ion is accelerated by the electric field due to a potential difference V. The ion leaves S and enters a separator chamber in which a uniform magnetic field is perpendicular to the path of the ion. A wide detector lines...
+A A d Gambarajah 3/Figure 3 Question 3 Two very long wires, carrying free charge, of...
+A A d Gambarajah 3/Figure 3 Question 3 Two very long wires, carrying free charge, of equal but opposite charge densities, 2. of +0.4 nC/m, are placed parallel to each other (Figure 3). Each wire has a diameter of 2 mm and they are separated by a distance d, of 1.0 cm. The distance d is measured from the centre point of each wire. You may assume the charge distributions on the wires are the same as if they were...
P7. Suppose a negative charge of magnitude q is placed on the y axis at position...
P7. Suppose a negative charge of magnitude q is placed on the y axis at position +a and a positive charge of magnitude q is placed on the y axis at position -a (a) Determine the electric field at a point on the x axis -9 E-2 +4 (b) Simplify your expression for the case x >> 2a
1 The figure above shows a very large nonconducting plate that has a uniform surface charge...
1 The figure above shows a very large nonconducting plate that has a uniform surface charge density σ·-1 μC/m2, it also shows a point charge We choose the origin of an x-axis at Q. At what positive coordinate on the x-axis (other than infinity) is the net electric field Ener=0? -1 pC at distance d-0.4 m from the plate. Both are fixed in place. Submt Answer Tries 0/2 Is it possible to have a net electric field Enct at a...
What is the smallest unit of charge that has been observed experimentally? A) plusminus 1/3e B)...
What is the smallest unit of charge that has been observed experimentally? A) plusminus 1/3e B) plusminus2/3 e C) plusminus 1.602 times 10^-19 D) plusminus 1.000 C E) plusminus 5.0 times 10^-27 C What is true concerning the charge in the diagram to the right according to the electric field lines shown? A) The charge must be negative. B) The charge must be positive. C) Nothing can be determined about the charge from the field lines. A rubber rod is...
10. 2 points SerCP11 15.5.P.034 The figure below shows the electric field lines for two point...
10. 2 points SerCP11 15.5.P.034 The figure below shows the electric field lines for two point charges separated by a small distance. 12 91 (a) Determine the ratio q1/q2 (b) What are the signs of q1 and q2? q1 is positive. 1 is negative. 42 is positive. q2 is negative. 11. -12 points SerCP11 15.5.P.035. (a) Sketch the electric field lines around an isolated point charge q>0. (Submit a file with a maximum size of 1 MB.) Choose File No...
Part (a) of the figure shows two charged particles fixed in place on an x axis...
Part (a) of the figure shows two charged particles fixed in place on an x axis with separation L. The ratio 41/q2 of their charge magnitudes is 4.00. Part (b) of the figure shows the x component Enetxof their net electric field along the x axis just to the right of particle 2. The x axis scale is set byxs-30.6 cm. (a) At what value of x > 0 is Enetx maximum? (b) If particle 2 has charge-3e, what is...
The figure at the bottom of the page shows a plot of a potential map made by a student, but the distance scale is unknown. Lines are drawn at 1 volt intervals.
The figure at the bottom of the page shows a plot of a potential map made by a student, but the distance scale is unknown. Lines are drawn at 1 volt intervals.(A) The student determined that the electric field at point x has a magnitude of 100 N/C. How far apart are the adjacent equipotentials? (B) If an electron was placed at point x, how large a force would it experience? (C) In part B, which way would the electron move and...
Problem 4 (25 points) The figure below shows a mass spectrometer, a device used to measure...
Problem 4 (25 points) The figure below shows a mass spectrometer, a device used to measure the masses of ions. Consider a positive ion of unknown mass m and charge q = 3.2 x 10-19 C. The ion is first accelerated from rest through a potential difference of magnitude 1v1 = 750 V inside a source. After leaving the source, it travels upward at constant speed and enters a region of uniform magnetic field B = 2.5 T directed out...
4. I In 1 second, a battery charger moves 0.60 C of charge from the negative...
4. I In 1 second, a battery charger moves 0.60 C of charge from the negative terminal to the positive terminal of a 1.5 V AA battery. a. How much work does the charger do? b. What is the power output of the charger in watts? ir Figure L k 33. 1 A parallel-plate capacitor is formedG from two 4.0 cm× 4.0 cm electrodes FIGURE P20 spaced 2.0 mm apart. The electric field strength inside capacitor is 1.0 x106 N/C....
• The figure shows the essentials of a mass spectrometer, which can be used to measure the mass of an ion; an ion of mass m (to be measured) and charge q is produced in source S. The initially stationary ion is accelerated by the electric field due to a potential difference V. The ion leaves S and enters a separator chamber in which a uniform magnetic field is perpendicular to the path of the ion. A wide detector lines...
+A A d Gambarajah 3/Figure 3 Question 3 Two very long wires, carrying free charge, of equal but opposite charge densities, 2. of +0.4 nC/m, are placed parallel to each other (Figure 3). Each wire has a diameter of 2 mm and they are separated by a distance d, of 1.0 cm. The distance d is measured from the centre point of each wire. You may assume the charge distributions on the wires are the same as if they were...
P7. Suppose a negative charge of magnitude q is placed on the y axis at position +a and a positive charge of magnitude q is placed on the y axis at position -a (a) Determine the electric field at a point on the x axis -9 E-2 +4 (b) Simplify your expression for the case x >> 2a
1 The figure above shows a very large nonconducting plate that has a uniform surface charge density σ·-1 μC/m2, it also shows a point charge We choose the origin of an x-axis at Q. At what positive coordinate on the x-axis (other than infinity) is the net electric field Ener=0? -1 pC at distance d-0.4 m from the plate. Both are fixed in place. Submt Answer Tries 0/2 Is it possible to have a net electric field Enct at a...
What is the smallest unit of charge that has been observed experimentally? A) plusminus 1/3e B) plusminus2/3 e C) plusminus 1.602 times 10^-19 D) plusminus 1.000 C E) plusminus 5.0 times 10^-27 C What is true concerning the charge in the diagram to the right according to the electric field lines shown? A) The charge must be negative. B) The charge must be positive. C) Nothing can be determined about the charge from the field lines. A rubber rod is...
10. 2 points SerCP11 15.5.P.034 The figure below shows the electric field lines for two point charges separated by a small distance. 12 91 (a) Determine the ratio q1/q2 (b) What are the signs of q1 and q2? q1 is positive. 1 is negative. 42 is positive. q2 is negative. 11. -12 points SerCP11 15.5.P.035. (a) Sketch the electric field lines around an isolated point charge q>0. (Submit a file with a maximum size of 1 MB.) Choose File No...
Part (a) of the figure shows two charged particles fixed in place on an x axis with separation L. The ratio 41/q2 of their charge magnitudes is 4.00. Part (b) of the figure shows the x component Enetxof their net electric field along the x axis just to the right of particle 2. The x axis scale is set byxs-30.6 cm. (a) At what value of x > 0 is Enetx maximum? (b) If particle 2 has charge-3e, what is...
Problem 4 (25 points) The figure below shows a mass spectrometer, a device used to measure the masses of ions. Consider a positive ion of unknown mass m and charge q = 3.2 x 10-19 C. The ion is first accelerated from rest through a potential difference of magnitude 1v1 = 750 V inside a source. After leaving the source, it travels upward at constant speed and enters a region of uniform magnetic field B = 2.5 T directed out...
4. I In 1 second, a battery charger moves 0.60 C of charge from the negative terminal to the positive terminal of a 1.5 V AA battery. a. How much work does the charger do? b. What is the power output of the charger in watts? ir Figure L k 33. 1 A parallel-plate capacitor is formedG from two 4.0 cm× 4.0 cm electrodes FIGURE P20 spaced 2.0 mm apart. The electric field strength inside capacitor is 1.0 x106 N/C....
