Homework Answers
Add Answer to:
please go into depth to better understand solution Construct shear and moment diagrams using the equilib-...
please go into detail on equations and solutions to better understand problem Construct shear and moment...
please go into detail on equations and solutions to better
understand problem

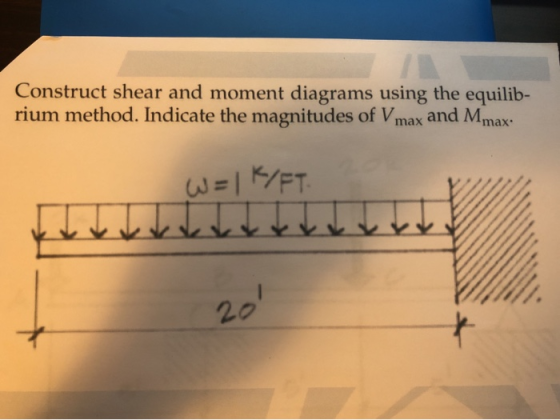

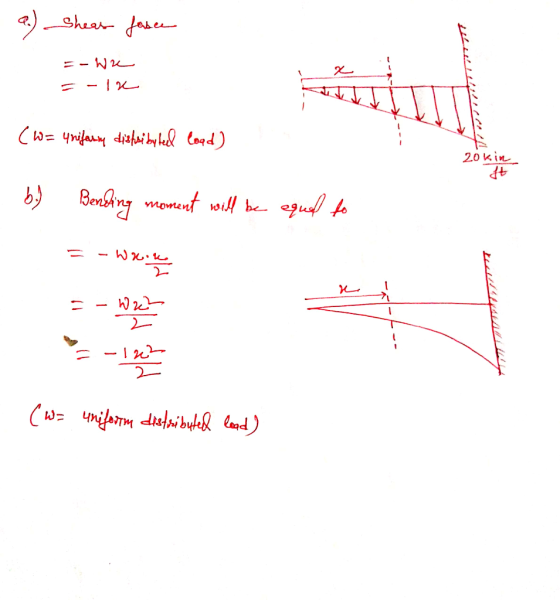

Construct shear and moment diagrams using the equilib- rium method. Indicate the magnitudes of Vmax and Mmax 204
Bending and Shear in Simple Beams Problems Construct shear and moment diagrams using the equilib- rium...
Bending and Shear in Simple Beams Problems Construct shear and moment diagrams using the equilib- rium method. Indicate the magnitudes of Vmax and Mmax 7.1 s1 ? 7.2 20 7.3 10? 7.4
Please perform your solution using analytical method. Please perform your solution using analytical method. Draw the...
Please perform your solution using analytical
method.
Please perform your solution using analytical
method.
Draw the shear force and bending moment diagrams for the beams shown below. Identify the maximum shear force and bending moment and where they are located along the beam. (a) 1kN/m А. B 3m 2m 1m 6m (Vmax = - kN at 5 < x < 6, Mmax = 2.22kNm at x = 4 m from A) (b) P1 P1 B А a b L (Vmax...
Please help? Construct the shear force and bending moment diagrams for the beam shown by the...
Please help?
Construct the shear force and bending moment diagrams for the
beam shown by the area method.
Neglect the weight of the beam.
200 lb/ft Hinge 2 ft FIG. P4.41
* Question 8 Construct the shear and moment diagrams for the beam subjected to the concentrated f...
* Question 8 Construct the shear and moment diagrams for the beam subjected to the concentrated force and couple and the triangular load. After you have the diagrams, answer the questions as a check on your work. 270 lbfft 1540 lb-ft 2" 1070 lb Questions: when x = 0.7 ft, V = when x = 12.2 ft, V When x = 20.0 ft, V = when x = 25.5 ft, V- 2 lb-ft lb-ft 6 Ib-ft 8 lb-ft The maximum...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Let...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Let a=4.0 ft, b=5.0 ft, c=5.0 ft, d=3.0 ft, w = 11.5 kips/ft and P = 63 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. W X B D E a b d For this loading, calculate the reaction forces Ay and Ey acting on the beam. Positive...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Let...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Let a=4.0 ft, b=9.0 ft, c=5.0 ft, d=4.0 ft, w = 8 kips/ft and P = 75 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. W X A B C D E a b с For this loading, calculate the reaction forces Ay and Ey acting on the...
Construct the shear and moment diagrams for the beam subjected to the concentrated force and coup...
Construct the shear and moment diagrams for the beam subjected to the concentrated force and couple and the triangular load. After you have the diagrams, answer the questions as a check on your work 270 lb/ft 1580 lb-ft 2" 3 1220 lb when x 1.2 ft, V = When x4.7 ft, V- when x = 13.8 ft, V = when x = 18.2 ft, V = 2 lb-ft 4 lb-ft 6 lb-ft lb-ft The maximum (absolute value) shear force in...
Construct the shear and moment diagrams for the beam subjected to the concentrated force and coup...
Construct the shear and moment diagrams for the beam subjected to the concentrated force and couple and the triangular load. After you have the diagrams, answer the questions as a check on your work. 320 Ib/ft 1420 lb-ft 20' 6' 1250 lb Questions: When x 2.1 ft, When x 16.9 ft, V when x 25.8 ft, V- When x31.5 ft, V- 1-1 1 2 lb-ft *4 Ib-ft a lb-ft The maximum (absolute value) shear force in the beam is: ib...
5.1-2) Moment-Distribution Beams. Determine the reactions using moment distribution and construct the shear and moment...
5.1-2) Moment-Distribution Beams. Determine the reactions using moment distribution and construct the shear and moment diagrams for the beam. Given: E1 = constant. 35 kips 1 kip/ft 2 kip/ft 10,-
please go into detail on equations and solutions to better
understand problem
Construct shear and moment diagrams using the equilib- rium method. Indicate the magnitudes of Vmax and Mmax 204
Bending and Shear in Simple Beams Problems Construct shear and moment diagrams using the equilib- rium method. Indicate the magnitudes of Vmax and Mmax 7.1 s1 ? 7.2 20 7.3 10? 7.4
Please perform your solution using analytical
method.
Please perform your solution using analytical
method.
Draw the shear force and bending moment diagrams for the beams shown below. Identify the maximum shear force and bending moment and where they are located along the beam. (a) 1kN/m А. B 3m 2m 1m 6m (Vmax = - kN at 5 < x < 6, Mmax = 2.22kNm at x = 4 m from A) (b) P1 P1 B А a b L (Vmax...
Please help?
Construct the shear force and bending moment diagrams for the
beam shown by the area method.
Neglect the weight of the beam.
200 lb/ft Hinge 2 ft FIG. P4.41
* Question 8 Construct the shear and moment diagrams for the beam subjected to the concentrated force and couple and the triangular load. After you have the diagrams, answer the questions as a check on your work. 270 lbfft 1540 lb-ft 2" 1070 lb Questions: when x = 0.7 ft, V = when x = 12.2 ft, V When x = 20.0 ft, V = when x = 25.5 ft, V- 2 lb-ft lb-ft 6 Ib-ft 8 lb-ft The maximum...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Let a=4.0 ft, b=5.0 ft, c=5.0 ft, d=3.0 ft, w = 11.5 kips/ft and P = 63 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. W X B D E a b d For this loading, calculate the reaction forces Ay and Ey acting on the beam. Positive...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Let a=4.0 ft, b=9.0 ft, c=5.0 ft, d=4.0 ft, w = 8 kips/ft and P = 75 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. W X A B C D E a b с For this loading, calculate the reaction forces Ay and Ey acting on the...
Construct the shear and moment diagrams for the beam subjected to the concentrated force and couple and the triangular load. After you have the diagrams, answer the questions as a check on your work 270 lb/ft 1580 lb-ft 2" 3 1220 lb when x 1.2 ft, V = When x4.7 ft, V- when x = 13.8 ft, V = when x = 18.2 ft, V = 2 lb-ft 4 lb-ft 6 lb-ft lb-ft The maximum (absolute value) shear force in...
Construct the shear and moment diagrams for the beam subjected to the concentrated force and couple and the triangular load. After you have the diagrams, answer the questions as a check on your work. 320 Ib/ft 1420 lb-ft 20' 6' 1250 lb Questions: When x 2.1 ft, When x 16.9 ft, V when x 25.8 ft, V- When x31.5 ft, V- 1-1 1 2 lb-ft *4 Ib-ft a lb-ft The maximum (absolute value) shear force in the beam is: ib...
5.1-2) Moment-Distribution Beams. Determine the reactions using moment distribution and construct the shear and moment diagrams for the beam. Given: E1 = constant. 35 kips 1 kip/ft 2 kip/ft 10,-
