Homework Answers
Add Answer to:

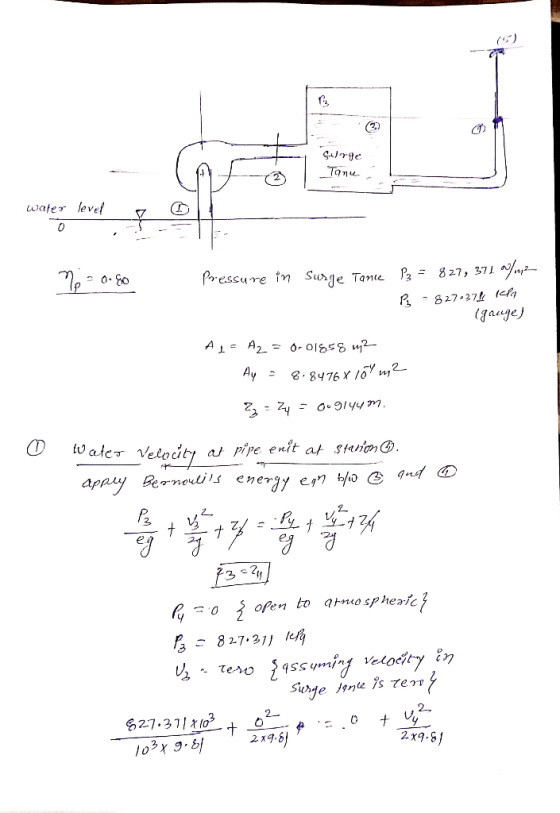

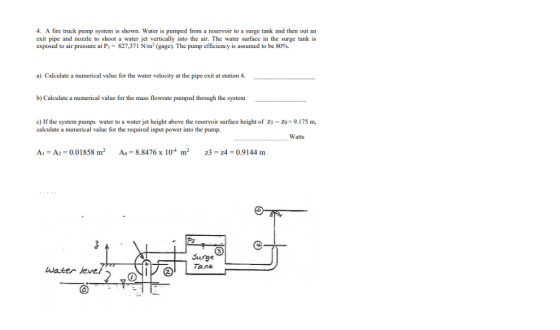

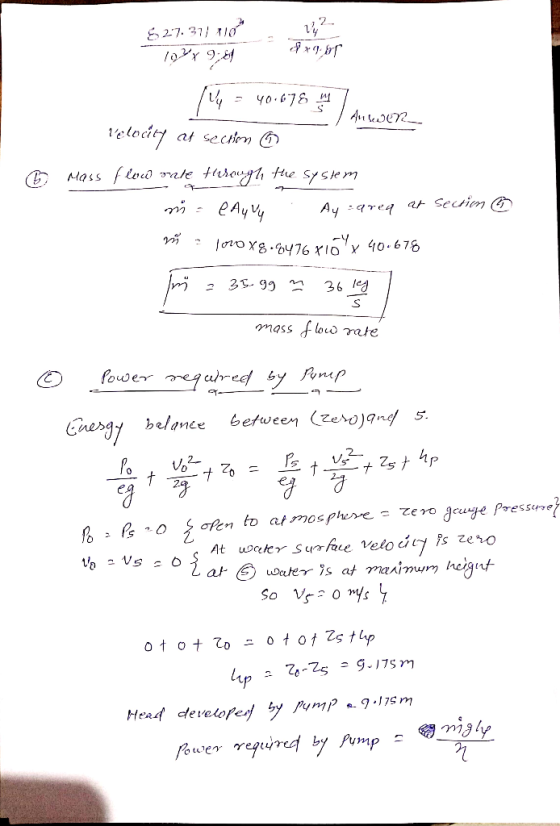

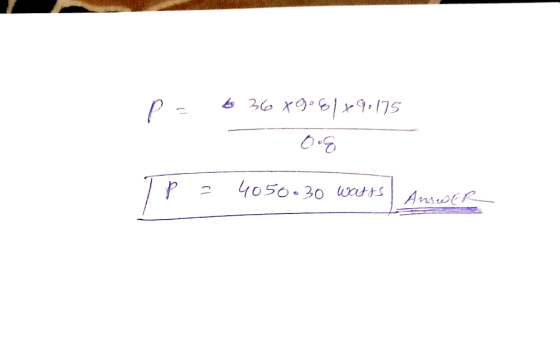

4. A fire truck pump system is shown. Water is pumped from a reservoir to a...
water is pumped from a reservoir to a fish tank. the free surface surface of the...
water is pumped from a reservoir to a fish tank. the free
surface surface of the fish tank
2. Water is pumped from a reservoir to a fish tank. The free surface surface of the fish tank is 2 m higher than that of the reservoir. The flow rate of water is 0.001 m'/s. The electric power input to the pump is 25W. Determine the electric power that is converted to the thermal energy due to frictional effects. Water density...
Q3 (40 pts): Water is pumped through a 60-m-long, 0.3-m-diameter pipe from a lower reservoir to...
Q3 (40 pts): Water is pumped through a 60-m-long, 0.3-m-diameter pipe from a lower reservoir to a higher reservoir, which has a water surface 10 m above the lower one. When the pump adds 40 kW to the water the flowrate is 0.20 m/s. Assume the following coefficients of minor losses: • Entrance: Kentrance = 0.5 Exit: Kexit = 1 Each elbow: Kelbow = 1.5 • Valve: K= 6 Part A (20 pts) Determine the pipe roughness ε. Part B...
Water is being pumped from a lower reservoir to an elevated tank as shown below. The...
Water is being pumped from a lower reservoir to an elevated tank as shown below. The pump is 80% efficient and rated at 200 kW. Determine the flow rate if the total head loss from point 1 to point 2 is 15 m. elev. 100 m 150-mm diameter pipe pump 180-mm diameter pipe elev. 50 m water
Water is pumped from a lower reservoir to a higher reservoir by a pump that provides...
Water is pumped from a lower reservoir to a higher reservoir by a pump that provides 20 kW of shaft power. The free surface of the upper reservoir is 46 m higher than that of the lower reservoir. If the flow rate of water is measured to be0.03 m /s, determine mechanical power that is converted to thermal energy during this process due to frictional effects. 46 m 20 kW Pump 1kW
A pump is used to pump water at 60oF from a reservoir whose surface is 4.0...
A pump is used to pump water at 60oF from a reservoir whose surface is 4.0 ft above the centerline of the pump inlet. The piping system from the reservoir to the pump consists of 10.5 ft of cast iron pipe with a diameter of 4.0 in and an average roughness (ε) of 0.02 inches. There are several minor losses: a sharp edged inlet (K – 0.5), three flanged smooth 90o regular elbows (K – 0.3 each), and a fully open flanged globe...
4.) A pumping system is designed to pump from a storage reservoir located at an elevation of 2030 feet. The pump elevati...
4.) A pumping system is designed to pump from a storage reservoir located at an elevation of 2030 feet. The pump elevation is 2015 feet. The pump discharge flowrate is 4200 gpm and the water temperature is 80˚ F. Between the storage tank and the pump is 25 feet of 12-inch DIP pipe (f = 0.014) with one (1) rounded entrance (Kent = 0.25) and two (2) 45-degree bends (Kbend = 0.20). What is the NSPHA for this system?
A centrifugal pump is used to pump water at 77ºF from a reservoir whose surface is 20 ft above th...
A centrifugal pump is used to pump water at 77ºF from a reservoir whose surface is 20 ft above the centerline of the pump inlet. The Pipe System consists of 67.5 ft of PVC pipe with a 1.2 in ID and negligible average internal roughness height. The length of the pipe from the bottom of the lower tank to the pump inlet is 12 ft. There are several minor losses in the pipe: an acute edge entry (KL = 0.5),...
1 A pump delivers water from the lower reservoir to the upper reservoir at a rate of 60 L/s. Both...
1 A pump delivers water from the lower reservoir to the upper reservoir at a rate of 60 L/s. Both the suction and discharge pipes are DN 150 schedule 40steel pipe. The length of the suction pipe leading to the pump is 3.5 m, and 7 m of discharge pipe extend from the pump outlet to the upper tank. There are three standard 900 elbows and a fully open gate valve. The depth of the fluid level inside the lower...
Please help asap with this one In the system below, water is being pumped from the...
Please help asap with this one
In the system below, water is being pumped from the lower reservoir to the upper reservoir. The pipe diameter, pipe length, flowrate and total system head losses are shown on the sketch. Determine the head added by the pump. Assume the losses are uniform along the length of the pipe. Sketch the approx energy grade line. Elev. 132.0 ft Frictional head losses in the pipe are 27.36 ft. Water -Elev. 97.5 Ft Water Q...
Water is pumped from a lower reservoir to a higher reservoir by a pump that provides...
Water is pumped from a lower reservoir to a higher reservoir by a pump that provides 20 kW of shaft power. The free surface of the upper reservoir is 45 m higher than that of the lower reservoir. If the flow rate of water is measured to be 0.03 m3/s, determine (a) mechanical power that is converted to thermal energy (in kW) during this process due to frictional effects and (b) the pump efficiency (%). Take the density of water...
water is pumped from a reservoir to a fish tank. the free
surface surface of the fish tank
2. Water is pumped from a reservoir to a fish tank. The free surface surface of the fish tank is 2 m higher than that of the reservoir. The flow rate of water is 0.001 m'/s. The electric power input to the pump is 25W. Determine the electric power that is converted to the thermal energy due to frictional effects. Water density...
Q3 (40 pts): Water is pumped through a 60-m-long, 0.3-m-diameter pipe from a lower reservoir to a higher reservoir, which has a water surface 10 m above the lower one. When the pump adds 40 kW to the water the flowrate is 0.20 m/s. Assume the following coefficients of minor losses: • Entrance: Kentrance = 0.5 Exit: Kexit = 1 Each elbow: Kelbow = 1.5 • Valve: K= 6 Part A (20 pts) Determine the pipe roughness ε. Part B...
Water is being pumped from a lower reservoir to an elevated tank as shown below. The pump is 80% efficient and rated at 200 kW. Determine the flow rate if the total head loss from point 1 to point 2 is 15 m. elev. 100 m 150-mm diameter pipe pump 180-mm diameter pipe elev. 50 m water
Water is pumped from a lower reservoir to a higher reservoir by a pump that provides 20 kW of shaft power. The free surface of the upper reservoir is 46 m higher than that of the lower reservoir. If the flow rate of water is measured to be0.03 m /s, determine mechanical power that is converted to thermal energy during this process due to frictional effects. 46 m 20 kW Pump 1kW
1 A pump delivers water from the lower reservoir to the upper reservoir at a rate of 60 L/s. Both the suction and discharge pipes are DN 150 schedule 40steel pipe. The length of the suction pipe leading to the pump is 3.5 m, and 7 m of discharge pipe extend from the pump outlet to the upper tank. There are three standard 900 elbows and a fully open gate valve. The depth of the fluid level inside the lower...
Please help asap with this one
In the system below, water is being pumped from the lower reservoir to the upper reservoir. The pipe diameter, pipe length, flowrate and total system head losses are shown on the sketch. Determine the head added by the pump. Assume the losses are uniform along the length of the pipe. Sketch the approx energy grade line. Elev. 132.0 ft Frictional head losses in the pipe are 27.36 ft. Water -Elev. 97.5 Ft Water Q...
Water is pumped from a lower reservoir to a higher reservoir by a pump that provides 20 kW of shaft power. The free surface of the upper reservoir is 45 m higher than that of the lower reservoir. If the flow rate of water is measured to be 0.03 m3/s, determine (a) mechanical power that is converted to thermal energy (in kW) during this process due to frictional effects and (b) the pump efficiency (%). Take the density of water...
