Question

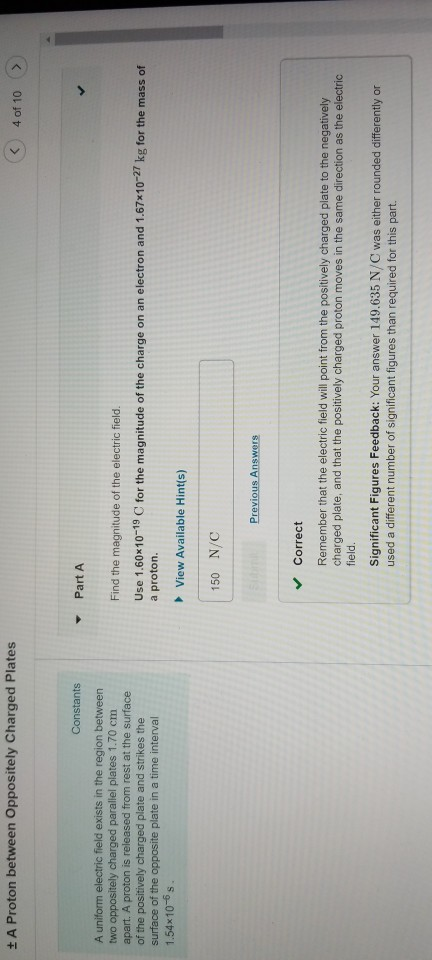

t A Proton between Oppositely Charged Plates 4 of 10 > Constants Part A A uniform electric field exists in the region between two oppositely charged parallel plates 1.70 cm apart. A proton is released from rest at the surface of the positively charged plate and strikes the surface of the opposite plate in a time interval 1.54x10-6 s Find the magnitude of the electric field Use 1.60x10-19 C for the magnitude of the charge on an electron and 1.67x10-27 kg for the mass of a proton View Available Hint(s) 150 N/C Correct Remember that the electric field will point from the positively charged plate to the negatively charged plate, and that the positively charged proton moves in the same direction as the electric field. Significant Figures Feedback: Your answer 149.635 N/C was either rounded differently or used a different number of significant figures than required for this part.

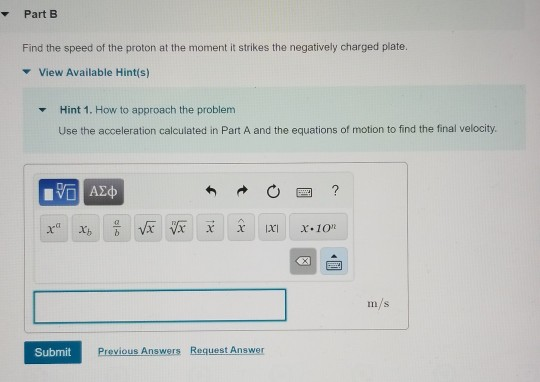

▼ Part B Find the speed of the proton at the moment it strikes the negatively charged plate. ▼ View Available Hint(s) Hint 1, How to approach the problem Use the acceleration calculated in Part A and the equations of motion to find the final velocity. ▼ m/s Submit Previous Answers Request Answer

What is the answer to part B, and what formula should be used?

0 0
Add a comment Improve this question Transcribed image text
Answer #1

Dear student,

Find this solution.if any issue with that don't forget to write in comment section.I will rectify them as soon as possible.

If you find the solution helpful and kindly RATE THE ANSWER it would be appreciated.

Your rating is important to me.

Thanks for asking..acceleraten (a): LE チ nal っ

Add a comment
