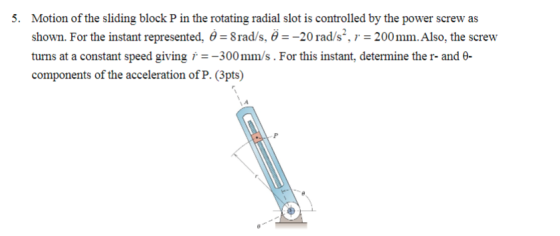

Motion of the sliding block P in the rotating radial slot is controlled by the power...
dynamic A particle is sliding in a slot on an arm that is rotating about a...
dynamic
A particle is sliding in a slot on an arm that is rotating about a fixed point. The by r() (3+ cos 2t) inches where t is in seconds. The arm is rotating about the fixed point at a constant rate of 0.3 rad/sec counterclockwise starting at 0 from the horizontal position. (a) Use radial and transverse coordinates to express the velocity and acceleration of the particle when 030 (b) Express the velocity and acceleration of the particle in...
The particle has a known mass m and is confined to move along the smooth horizontal slot
Given: The particle has a known mass m and is confined to move along the smooth horizontal slot due to the rotation of the rod OA. Also, the rod is rotating with a known constant angular velocity of θ. Assuming the particle contacts only one side of the slot at any instant, Find: a) The radial (vr) and transverse components (vθ) of the particle's velocity at the given instant. b) The radial (ar) and transverse components (aθ) of the particle's acceleration at the given...
Pin P is attached to the wheel shown and slides in a slot cut in bar...
Pin P is attached to the wheel shown and slides in a slot cut in bar BD. The wheel rolls to the right without slipping with a constant angular velocity of 22 rad/s 0 140 min 200 mm Problem 15.154.a- Plane motion, velocity of a particle with respect to a rotating reference frame Knowing that x= 480 mm at θ = o", determine the angular velocity of the bar and the relative velocity of pin P with respect to the...
2/110 Rotation of bar OA is controlled by the lead screw which imparts a horizontal velocity...
2/110 Rotation of bar OA is controlled by the lead screw which imparts a horizontal velocity v to collar C and causes pin P to travel along the smooth slot. Determine the values of r and 6, where r = OP, if h = 160 mm, x = 120 mm, and v = 25 mm/s at the instant represented. %3D %3D 2/116 A helicopter starts from rest at point A and travels along the straight-line path with a constant acceleration...
Please answer my questions in the picture. expecting a detailed explanation, Thankyou. why it is ...
please answer my questions in the picture.
expecting a detailed explanation, Thankyou.
why it is not vt=vocos
why we dont use an at
2 In the timing mechanism shown in Figure 1, the motion of the pin A in the fixed circular slot is controlled by the guide B, which is elevated by its lead screw with a constant upward velocity t 2 ms. The radius r of the slot is 230 mm. For pin A and for the instant...
QUESTION 2 At the time instant shown in Figure 2, A is moving with constant speed v 1.2 m/s and link OC is rota...
QUESTION 2 At the time instant shown in Figure 2, A is moving with constant speed v 1.2 m/s and link OC is rotating clockwise with constant angular velocity-2 rad/s. Determine the angular velocity and angular acceleration of link BC at this instance. 400 mm 500 mm 300 mm U) Figre 2: A mechanism with motion controlled by controlling the motion of A and rotation of OC
QUESTION 2 At the time instant shown in Figure 2, A is moving...
There is a typing mistake take AB = 300 mm 1. Block B of the mechanism...
There is a typing mistake take AB = 300 mm
1. Block B of the mechanism is pin connected to the link BC while free to move within the slot of member AD. If link BC is rotating at a constant rate of Wac = 4 rad/s, determine the angular velocity and the Coriolis acceleration of member AD at the instant shown. BC= 200 mm, and AB = 300 m. (30 point) -60
Block B of the mechanism is pin connected to the link BC while free to move...
Block B of the mechanism is pin connected to the link BC while free to move within the slot of member AD. If link BC is rotating at a constant rate of WBC = 4 rad/s, determine the angular velocity and the Coriolis acceleration of member AD at the instant shown. BC= 200 mm, and AB = 300 m. (30 point) D с ---600--0A
The 0.2-kg pin P is constrained to move in the smooth curved slot, which is defined...
The 0.2-kg pin P is constrained to move in the smooth curved slot, which is defined by the lemniscate r = (0.6 cos2θ) m. Its motion is controlled by the rotation of the slotted arm OA. which has a constant clockwise angular velocity of theta = -3 rad/s. (Figure 1)
Determine the force arm OA exerts on the pin P when θ = 0°. Motion is in the vertical plane. Express your answer to three significant figures and include...
etisalat I 11:48 65% Mahra کل الوسائط u 11:42 2019/6/19 7. Block B of the mechanism...
etisalat I 11:48 65% Mahra کل الوسائط u 11:42 2019/6/19 7. Block B of the mechanism is confined to move within the slot member CD. If AB is rotating at a constant rate of 3 rad/s, determine the angular velocity of member CL at the instant shown in Fig. Q7. (20 Marks) D 100 mm B OA 0B 3rad/s cD acD 200 mm 30% Fig. Q7
etisalat I 11:48 65% Mahra کل الوسائط u 11:42 2019/6/19 7. Block B of...
dynamic
A particle is sliding in a slot on an arm that is rotating about a fixed point. The by r() (3+ cos 2t) inches where t is in seconds. The arm is rotating about the fixed point at a constant rate of 0.3 rad/sec counterclockwise starting at 0 from the horizontal position. (a) Use radial and transverse coordinates to express the velocity and acceleration of the particle when 030 (b) Express the velocity and acceleration of the particle in...
Pin P is attached to the wheel shown and slides in a slot cut in bar BD. The wheel rolls to the right without slipping with a constant angular velocity of 22 rad/s 0 140 min 200 mm Problem 15.154.a- Plane motion, velocity of a particle with respect to a rotating reference frame Knowing that x= 480 mm at θ = o", determine the angular velocity of the bar and the relative velocity of pin P with respect to the...
2/110 Rotation of bar OA is controlled by the lead screw which imparts a horizontal velocity v to collar C and causes pin P to travel along the smooth slot. Determine the values of r and 6, where r = OP, if h = 160 mm, x = 120 mm, and v = 25 mm/s at the instant represented. %3D %3D 2/116 A helicopter starts from rest at point A and travels along the straight-line path with a constant acceleration...
please answer my questions in the picture.
expecting a detailed explanation, Thankyou.
why it is not vt=vocos
why we dont use an at
2 In the timing mechanism shown in Figure 1, the motion of the pin A in the fixed circular slot is controlled by the guide B, which is elevated by its lead screw with a constant upward velocity t 2 ms. The radius r of the slot is 230 mm. For pin A and for the instant...
QUESTION 2 At the time instant shown in Figure 2, A is moving with constant speed v 1.2 m/s and link OC is rotating clockwise with constant angular velocity-2 rad/s. Determine the angular velocity and angular acceleration of link BC at this instance. 400 mm 500 mm 300 mm U) Figre 2: A mechanism with motion controlled by controlling the motion of A and rotation of OC
QUESTION 2 At the time instant shown in Figure 2, A is moving...
There is a typing mistake take AB = 300 mm
1. Block B of the mechanism is pin connected to the link BC while free to move within the slot of member AD. If link BC is rotating at a constant rate of Wac = 4 rad/s, determine the angular velocity and the Coriolis acceleration of member AD at the instant shown. BC= 200 mm, and AB = 300 m. (30 point) -60
Block B of the mechanism is pin connected to the link BC while free to move within the slot of member AD. If link BC is rotating at a constant rate of WBC = 4 rad/s, determine the angular velocity and the Coriolis acceleration of member AD at the instant shown. BC= 200 mm, and AB = 300 m. (30 point) D с ---600--0A
The 0.2-kg pin P is constrained to move in the smooth curved slot, which is defined by the lemniscate r = (0.6 cos2θ) m. Its motion is controlled by the rotation of the slotted arm OA. which has a constant clockwise angular velocity of theta = -3 rad/s. (Figure 1)
Determine the force arm OA exerts on the pin P when θ = 0°. Motion is in the vertical plane. Express your answer to three significant figures and include...
etisalat I 11:48 65% Mahra کل الوسائط u 11:42 2019/6/19 7. Block B of the mechanism is confined to move within the slot member CD. If AB is rotating at a constant rate of 3 rad/s, determine the angular velocity of member CL at the instant shown in Fig. Q7. (20 Marks) D 100 mm B OA 0B 3rad/s cD acD 200 mm 30% Fig. Q7
etisalat I 11:48 65% Mahra کل الوسائط u 11:42 2019/6/19 7. Block B of...
