Question

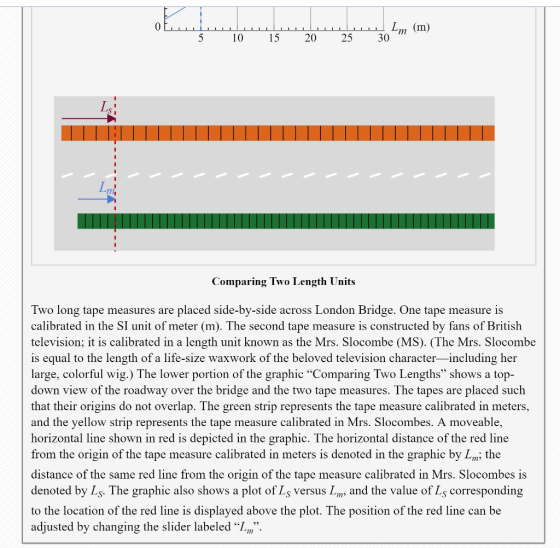

Lm (m) 5.000 Ls- 4.49 MS Ls (MS) 20 15 10 0 10 15 20 25 30 Ls

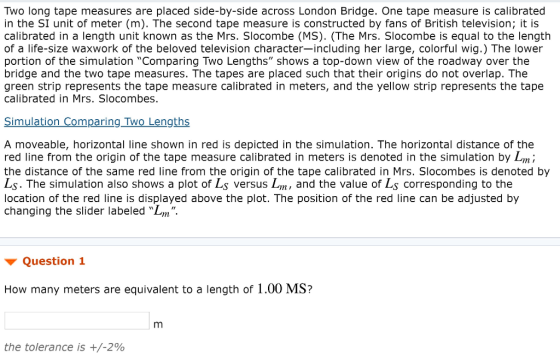

Hello, I need help with this physics question.

Answer 1

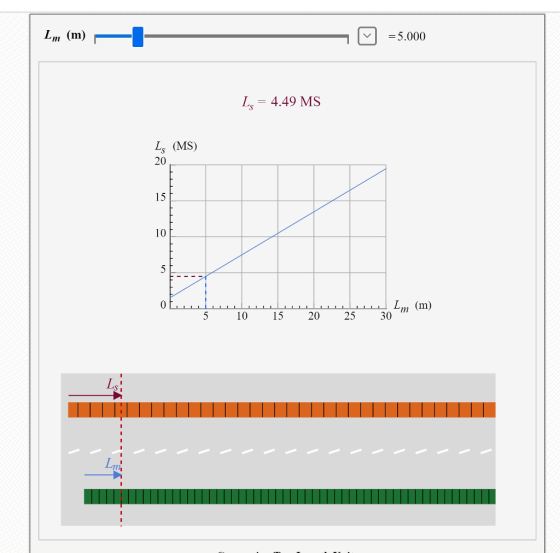

In the given L_S Vs L_m plot, one point is clear i.e. (5,4.49). For the second point, we can take measurement. I am taking the last point on the given line i.e. (30,19.49). (Note: the last point is an approx value)

Now, we can take the difference between two point, and can write

                                            $(19.49-4.49) \,\, MS \equiv (30-5)\,\, m$

                                    or,    $15 \,\, MS = 25\,\, m$

                                    or,    $1 \,\, MS = 1.67 \,\, m$

For any doubt please comment.
