A prism whose cross section is shaped like an isosceles right triangle is made from a...

Question

Question

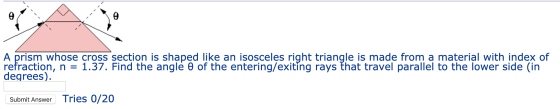

$A prism whose cross section is shaped like an isosceles right triangle is made from a material with index of refraction, n =$

science physics

Answer 1

Answer #1

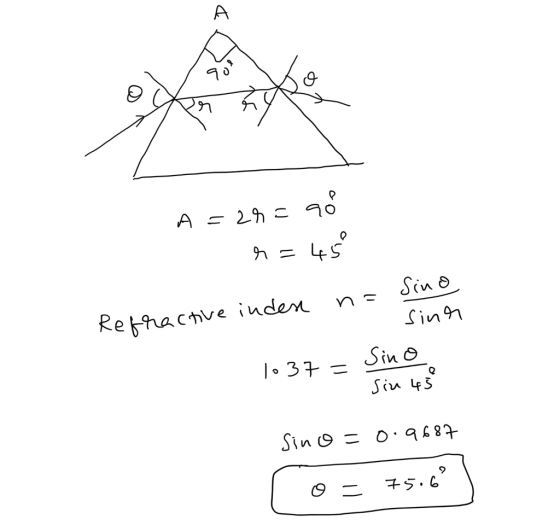

A = 2h 2 q0 4 Sino Rehacnve inden Sinn Sin 37 = Sin O 968

Answer 2

Similar Homework Help Questions

A prism whose cross section is shaped like an isosceles right triangle is made from a...

A prism whose cross section is shaped like an isosceles right triangle is made from a material with index of refraction, n = 1.31. Find the angle θ of the entering/exiting rays that travel parallel to the lower side (in degrees).
Refractive Prism Refractive Prism Points:1 A prism whose cross section is shaped like an isosceles right...

Refractive Prism Refractive Prism Points:1 A prism whose cross section is shaped like an isosceles right triangle is made from a material with index of refraction, n = 1.35. Find the angle o of the entering/exiting rays that travel parallel to the lower side (in degrees). Submit Answer Tries 0/12
A glass prism has a cross section of an isosceles triangle with a = 55.2º. A...

A glass prism has a cross section of an isosceles triangle with a = 55.2º. A light beam is incident at an angle of 0 = 53.2° and passes through the prism parallel to the base of the triangle as shown in the figure. What is the index of refraction of the glass? (Recall that the sum of all the internal angles of a triangle is 180°.).

A glass prism has a cross section of an isosceles triangle with α = 58.1°. A...

A glass prism has a cross section of an isosceles triangle with α = 58.1°. A light beam is incident at an angle of θ = 49.5° and passes through the prism parallel to the base of the triangle as shown in the figure. What is the index of refraction of the glass? (Recall that the sum of all the internal angles of a triangle is 180°.)
A glass prism has a cross section of an isosceles triangle with a = 57.8° Timer...

A glass prism has a cross section of an isosceles triangle with a = 57.8° Timer Feedback Prin A light beam is incident at an angle of - 51.7º and passes through the prism parallel to the base of the triangle as shown in the figure. What is the index of refraction of the glass? (Recall that the sum of all the internal angles of a triangle is 180°) Thes/12
0) An isosceles prism with apex angle 24 degrees is made of glass with an index...

0) An isosceles prism with apex angle 24 degrees is made of glass with an index of refraction Light strikes the prism parallel to the base, as shown. Determine the speed of light in the prism. b) Determine the angle relative to horizontal that the light comes out of the other side of the prism. 240 Light

Light is incident on the left face of an isosceles prism; with an apex angle of...

Light is incident on the left face of an isosceles prism; with an apex angle of 49o, such that the light exiting the right face is parallel to its surface. What is the index of refraction of the prism, if the angle of incidence on the left face side is 28o to the normal of the face? Light is incident towards the apex.
DELL 10) An isosceles prism with apex angle 24 degrees is made of Bu Light strikes...

DELL 10) An isosceles prism with apex angle 24 degrees is made of Bu Light strikes the prism parallel to the base, as shown. degrees is made of glass with an index of refraction 1.51. a) Determine the speed of light in the prism. b) Determine the angle relative to horizontal that the light comes out of the other side of the prism. 240 Light
An isosceles prism with index of refraction 1.5 is oriented with its smallest angle, 14.3 degrees...

Please explain why the answer is 7.74. Thanks. An isosceles prism with index of refraction 1.5 is oriented with its smallest angle, 14.3 degrees, at the top. A laser shines light of wavelength 471.3 nm horizontally parallel to the surface that the prism is resting on. At what angle relative to the initial angle does the laser light leave the prism? Answer: 7.24 The correct answer is: 7.74 Try another question like this one An isosceles prism with index of...

Problem 9 145 What is the angle of refraction in the prism in degrees? Given a...

Problem 9 145 What is the angle of refraction in the prism in degrees? Given a prism shaped like an equilateral triangle as shown in Figure 1 below. Light is incident on Boundary 1 at incident angle 8. Inside the prism it travels parallel to the base of the prism. It then hits Boundary 2. The refractive index of air is na = 1.00, and that of the prism material is ng. Please answer the questions on the right. Remember...
