Homework Answers
please rate it up thanks
:)Add Answer to:

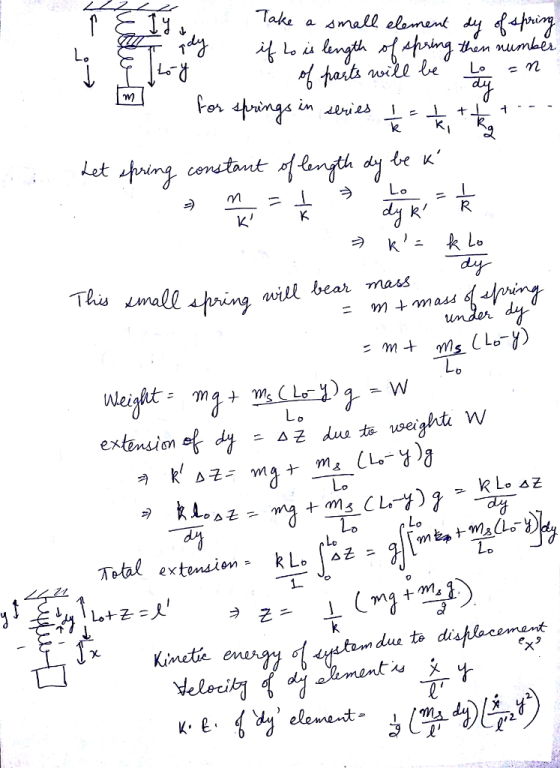

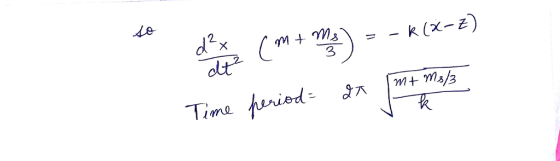

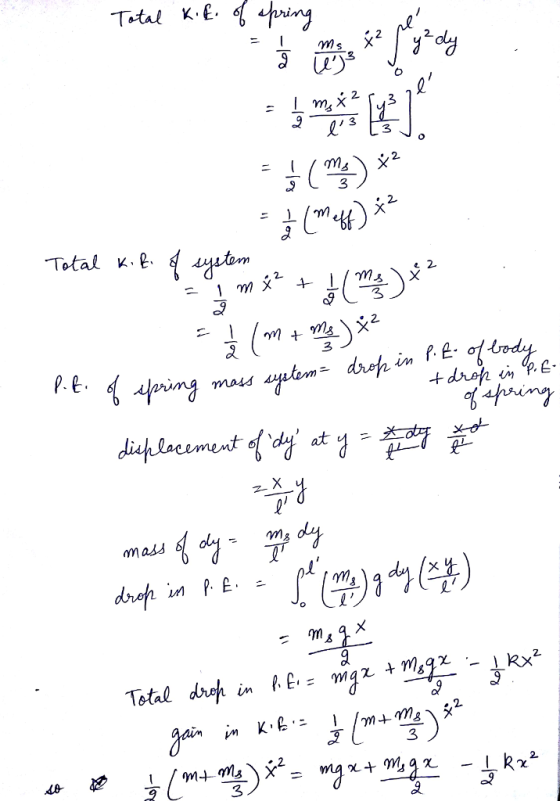

3.If the mass of the spring (m,) is not negligible and the elongation of the spring...
A spring, of negligible mass and which obeys Hooke's Law, supports a mass M on an...
A spring, of negligible mass and which obeys Hooke's Law,
supports a mass M on an incline which has negligible friction. The
figure below shows the system with mass M in its equilibrium
position. The spring is attached to a fixed support at P. The
spring in its relaxed state is also illustrated. Mass M has a value
of 255 g. Calculate k, the spring constant. The mass oscillates
when given a small displacement from its equilibrium position along
the...
An object of mass 0.1 kg is attached to a spring of negligible mass and is...
An object of mass 0.1 kg is attached to a spring of negligible
mass and is executing simple harmonic oscillation with an angular
frequency of 3 rad/s. If vx(0) = +0.5 m/s and x(0) = −0.1 m, what
is the phase φ? The general solution for such an oscillator is x(t)
= A cos(ω t + φ).
10.0 points mass 0.1 kg is attached to a mass and is executing sim- 003 An object of spring of negligible ple harmonic...
Mass on Incline Puntos:2 A spring, of negligible mass and which obeys Hooke's Law, supports a...
Mass on Incline Puntos:2 A spring, of negligible mass and which obeys Hooke's Law, supports a mass M on an incline which has negligible friction. The figure below shows the system with mass M in its equilibrium position. The spring is attached to a fixed support at P. The spring in its relaxed state is also illustrated 80 MAMUnstreched spring 60 5 50 E 40 30 20 10 θ 10 20 30 40 50 60 70 80 90 100110 x...
A mass m = 1.1 kg hangs at the end of a vertical spring whose top end is fixed to the ceiling. The spring has spring constant k = 75 N/m and negligible mass.
A mass m = 1.1 kg hangs at the end of a vertical spring whose top end is fixed to the ceiling. The spring has spring constant k = 75 N/m and negligible mass. At time t = 0 the mass is released from rest at a distance d = 0.35 m below its equilibrium height and undergoes simple harmonic motion with its position given as a function of time by y(t) = A cos(wt - φ). The positive y-axis...
A mass M is connected to a spring with spring constant k on either side, on...
A mass M is connected to a spring with spring constant k on either side, on a frictionless surface. The mass is initially held a distance X from equilibrium before it is released from rest and allowed to oscillate. If the maximum speed of the mass during oscillation is VmaxVmax=10.6msms, and the initial displacement X=3.7m, what is the period of oscillation? Answer in seconds.
A mass m = 3 kg is attached to a spring with spring constant k =...
A mass m = 3 kg is attached to a spring with spring constant k = 3 N/m and oscillates with simple harmonic motion along the x-axis with an amplitude A = 0.10 m. (a) What is the angular frequency of this oscillation? (b) What is the period T and the frequency f of the oscillation? (c) If the phase constant = 0, write down expressions for the displacement, velocity and acceleration of the mass as a function...
An object of mass m attached to a spring with constant k oscillates with amplitude A....
An object of mass m attached to a spring with constant k oscillates with amplitude A. Assuming air resistance and the mass of the spring to be negligible, which of the following changes alone would cause the period of this oscillation to increase? I. Increasing m II. Increasing A III. Using a spring with greater k (A) I only Submit B ) Il only © 1or u only Il or Ill only E ) I, II or III 1. Norm
Show that the natural period of vertical oscillation of a mass hung on a Hookean spring...
Show that the natural period of vertical oscillation of a mass hung on a Hookean spring is the same as the period of a simple pendulum whose length is equal to the elongation the mass causes when hung on the spring.
1. a For a spring with k = 20.0 N/m and hanging mass 100g, what is...
1. a For a spring with k = 20.0 N/m and hanging mass 100g, what is the angular frequency, w, of any simple harmonic oscillation process? b. For the spring system in question 1a, if you displace the hanging mass by 0.20 m and then allow the spring to oscillate, at what speed will the hanging mass pass the equilibrium position during each oscillation? You may assume that the spring is massless and is oscillating in a vacuum on the...
A block with mass m =6.2 kg is hung from a vertical spring. When the mass...
A block with mass m =6.2 kg is hung from a vertical spring. When
the mass hangs in equilibrium, the spring stretches x = 0.22 m.
While at this equilibrium position, the mass is then given an
initial push downward at v = 4.7 m/s. The block oscillates on the
spring without friction.
1) What is the spring constant of the spring?
2) What is the oscillation frequency?
3) After t = 0.33 s what is the speed of the...
A spring, of negligible mass and which obeys Hooke's Law,
supports a mass M on an incline which has negligible friction. The
figure below shows the system with mass M in its equilibrium
position. The spring is attached to a fixed support at P. The
spring in its relaxed state is also illustrated. Mass M has a value
of 255 g. Calculate k, the spring constant. The mass oscillates
when given a small displacement from its equilibrium position along
the...
An object of mass 0.1 kg is attached to a spring of negligible
mass and is executing simple harmonic oscillation with an angular
frequency of 3 rad/s. If vx(0) = +0.5 m/s and x(0) = −0.1 m, what
is the phase φ? The general solution for such an oscillator is x(t)
= A cos(ω t + φ).
10.0 points mass 0.1 kg is attached to a mass and is executing sim- 003 An object of spring of negligible ple harmonic...
Mass on Incline Puntos:2 A spring, of negligible mass and which obeys Hooke's Law, supports a mass M on an incline which has negligible friction. The figure below shows the system with mass M in its equilibrium position. The spring is attached to a fixed support at P. The spring in its relaxed state is also illustrated 80 MAMUnstreched spring 60 5 50 E 40 30 20 10 θ 10 20 30 40 50 60 70 80 90 100110 x...
An object of mass m attached to a spring with constant k oscillates with amplitude A. Assuming air resistance and the mass of the spring to be negligible, which of the following changes alone would cause the period of this oscillation to increase? I. Increasing m II. Increasing A III. Using a spring with greater k (A) I only Submit B ) Il only © 1or u only Il or Ill only E ) I, II or III 1. Norm
Show that the natural period of vertical oscillation of a mass hung on a Hookean spring is the same as the period of a simple pendulum whose length is equal to the elongation the mass causes when hung on the spring.
A block with mass m =6.2 kg is hung from a vertical spring. When
the mass hangs in equilibrium, the spring stretches x = 0.22 m.
While at this equilibrium position, the mass is then given an
initial push downward at v = 4.7 m/s. The block oscillates on the
spring without friction.
1) What is the spring constant of the spring?
2) What is the oscillation frequency?
3) After t = 0.33 s what is the speed of the...
