Consider five identical light bulbs connected to a battery as shown in each of the identical...

Question

Question

Consider five identical light bulbs connected to a

science physics

Answer 1

✔ Recommended Answer

Answer #1

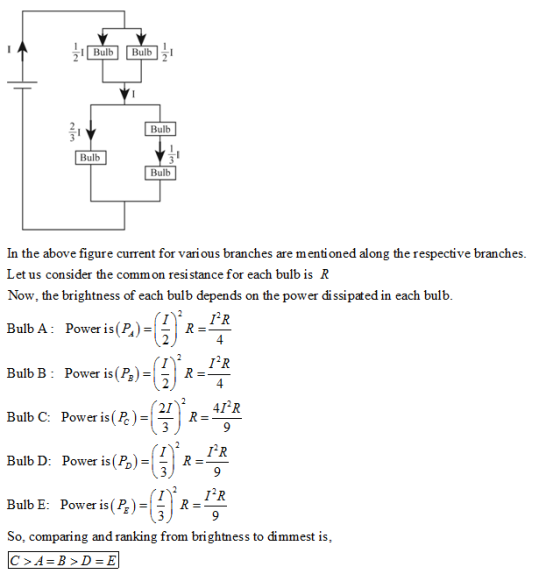

IBulbBulb Bulb Bulb In the above figure current for various branches are mentioned along the respective branches Let us consi

Answer 2
