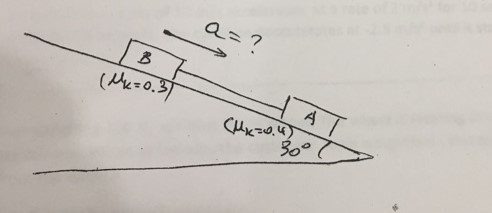

Two blocks of mass m_A = 10kg and m_B = 4kg are sliding down an incline plane of 30 degree angle with the horizontal. The blocks are connected with a string. The coefficients of kinetic friction between the and block m_A is 0.4 and between the plane and the block m_B is 0.3.
Question: What happens if the position of the blocks are reversed ?
Homework Answers
Add Answer to:
Two blocks of mass m_A = 10kg and m_B = 4kg are sliding down an incline...
Ex: Friction and inclined plane. A box of mass 10 kilograms is placed on an inclined...
Ex: Friction and inclined plane. A box of mass 10 kilograms is placed on an inclined plane so that it is at rest. The coefficients of static and kinetic friction between the surfaces of the plane and the box Are 0.4 and 0.3 respectively. a) For what value of the angle of inclination of the plane the box will start sliding down the plane ? b) Find out its acceleration as it slides down the plane. We were unable to...
Two blocks are connected over a pulley. Block A is on a 30 degree incline and...
Two blocks are connected over a pulley. Block A is on a 30 degree incline and block b is hanging in the air. Block A has a mass of 40.0 kg, a coefficient of kinetic friction of 0.300 and a coefficient of static friction or 0.400. Block B has a mass of 130.0 Kg Draw a freebody diagram What is the value of static friction? What is the value of kinetic friction? will the blocks move? If so, which way...
Two blocks slide down an incline angled at 30◦ above the horizontal, connected by a cable....
Two blocks slide down an incline angled at 30◦ above the horizontal, connected by a cable. The top block has a mass of m1 = 1 kg, and the bottom one has a mass of m2 = 2 kg. The coefficients of kinetic friction are µk1 = 0.2 (top block) and µk2 = 0.1 (bottom block). What is the tension in the cable that connects them? Please include force diagrams and components for forces where needed
Two blocks with masses ?1 and ?2 are connected by a massless string that passes over...
Two blocks with masses ?1 and ?2 are connected by a massless string that passes over a massless pulley as shown. ?1 has a mass of 2.25 kg and is on an incline of ?1=43.5∘ with coefficient of kinetic friction ?1=0.205 . ?2 has a mass of 6.75 kg and is on an incline of ?2=35.5∘ with coefficient of kinetic friction ?2=0.105 . The two‑block system is in motion with the block of mass ?2 sliding down the ramp. Find...
Two blocks with masses M1 and M2 are connected by a massless string that passes over...
Two blocks with masses M1 and M2 are connected by a massless string that passes over a massless pulley as shown. M1 has a mass of 2.25 kg and is on an incline of θ1=42.5 with coefficient of kinetic friction μ1=0.205. M2 has a mass of 7.25 kg and is on an incline of θ2=31.5 with coefficient of kinetic friction μ2=0.105. The two‑block system is in motion with the block of mass M2 sliding down the ramp. Find the magnitude...
Two blocks with masses M1 and M2 are connected by a massless string that passes over...
Two blocks with masses M1 and M2 are connected by a massless string that passes over a massless pulley as shown. M1 has a mass of 2.25 kg and is on an incline of θ1=46.5 with coefficient of kinetic friction μ1=0.205. M2 has a mass of 6.05 kg and is on an incline of θ2=33.5∘ with coefficient of kinetic friction μ2=0.105. The two‑block system is in motion with the block of mass M2 sliding down the ramp. Find the magnitude...
A block of mass m = 200 g is connected by a string of negligible mass...
A block of mass m = 200 g is connected by a string of negligible mass to a second block of mass ma 400 g. The blocks are at rest on a rough table with coefficients of kinetic friction of = 0.300, and 2. H20.200. A force of 2.50 N in the positive x-direction is applied to mass m. mi m2 Find (a). the acceleration of each block. [5 marks] (b). the tension in the connecting string. [5 marks) The...
Two blocks with masses M1 and M2 are connected by a massless string that passes over a massless pulley as shown
Two blocks with masses M1 and M2 are connected by a massless string that passes over a massless pulley as shown. M1 has a mass of 2.25 kg and is on an incline of θ1=43.5° with coefficient of kinetic friction μ1=0.205 . M2 has a mass of 6.15 kg and is on an incline of θ2=35.5° with coefficient of kinetic friction μ2=0.105. The two-block system is in motion with the block of mass M2 sliding down the ramp.Find the magnitude...
Two blocks, A and B (with mass 60 kg and 115 kg, respectively), are connected by...
Two blocks, A and B (with mass 60 kg and 115 kg, respectively), are connected by a string, as shown in the figure below. The pulley is frictionless and of negligible mass. The coefficient of kinetic friction between block A and the incline is ur = 0.27. Determine the change in the kinetic energy of block A as it moves from © to D, a distance of 24 m up the incline (and block B drops downward a distance of...
3. In the system below, blocks of masses m 10Kg and m2 = 30 Kg are...
3. In the system below, blocks of masses m 10Kg and m2 = 30 Kg are linked by a massless string through a massless and frictionless pulley The coefficient of mj m2 kinetic friction between the inclined plane and mt is 0.4. 28* a) Draw a free body diagram for each mass individually. Find the magnitude of the acceleration of the two masses. b) プm29-mi Find the tension in the string c) T*133 d) If the string is cut, find...
Ex: Friction and inclined plane. A box of mass 10 kilograms is placed on an inclined plane so that it is at rest. The coefficients of static and kinetic friction between the surfaces of the plane and the box Are 0.4 and 0.3 respectively. a) For what value of the angle of inclination of the plane the box will start sliding down the plane ? b) Find out its acceleration as it slides down the plane. We were unable to...
A block of mass m = 200 g is connected by a string of negligible mass to a second block of mass ma 400 g. The blocks are at rest on a rough table with coefficients of kinetic friction of = 0.300, and 2. H20.200. A force of 2.50 N in the positive x-direction is applied to mass m. mi m2 Find (a). the acceleration of each block. [5 marks] (b). the tension in the connecting string. [5 marks) The...
Two blocks, A and B (with mass 60 kg and 115 kg, respectively), are connected by a string, as shown in the figure below. The pulley is frictionless and of negligible mass. The coefficient of kinetic friction between block A and the incline is ur = 0.27. Determine the change in the kinetic energy of block A as it moves from © to D, a distance of 24 m up the incline (and block B drops downward a distance of...
3. In the system below, blocks of masses m 10Kg and m2 = 30 Kg are linked by a massless string through a massless and frictionless pulley The coefficient of mj m2 kinetic friction between the inclined plane and mt is 0.4. 28* a) Draw a free body diagram for each mass individually. Find the magnitude of the acceleration of the two masses. b) プm29-mi Find the tension in the string c) T*133 d) If the string is cut, find...
