Where do I even begin with this? 1. pero el reconocer sin[_(A+D)).. 10. Derive the index...

Question

Question

Where do I even begin with this?

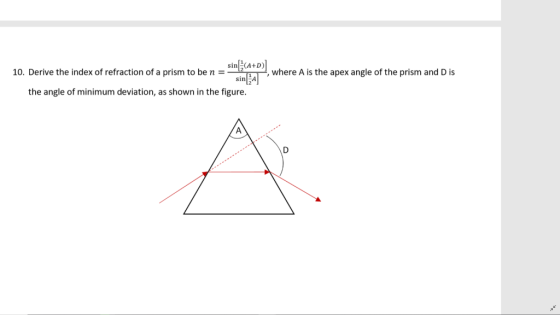

$1. pero el reconocer sin[_(A+D)).. 10. Derive the index of refraction of a prism to be n = %, where A is the apex angle of th$

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

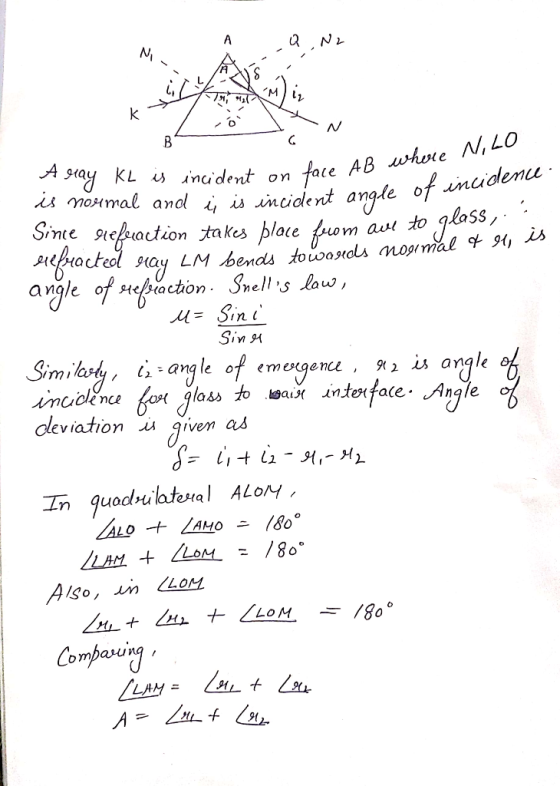

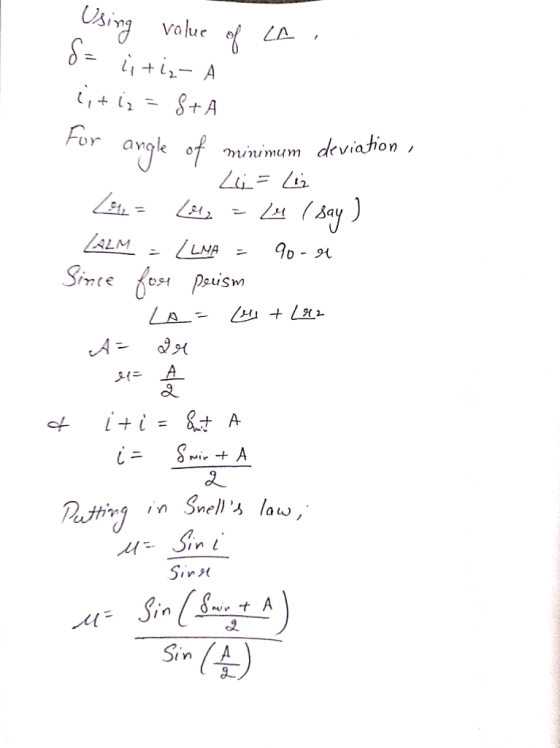

Answer N2 k N A stay KL is inadent on face AB whoie N,LO is moumal and ij is incident angle of incidene Sine sefaction takes ploce f Using Valuc LA For minimum deviation Lii= Li angle of LEtn LA (Say) LALM LLMA 90- Simte fost Peuism A in Snellslaw, Puting S

Add a comment

Answer 2

Similar Homework Help Questions

Microwave Optics Please help finding the index of refraction, Thank You! 616 51 41 SI Angle of Incidence / Angle of Reflection Receiver 1 4 Figure 3. The microwave goniometer arranged to measure...

Microwave Optics Please help finding the index of refraction, Thank You! 616 51 41 SI Angle of Incidence / Angle of Reflection Receiver 1 4 Figure 3. The microwave goniometer arranged to measure reflections from a metal sheet. The angles of measurement are defined in this drawing. 4. The pointer on the base of the rotating component holder shows an angle 90° larger than the direction normal to the plane of the metal reflector. Record this value and the angular...
This was the last part of my physics 204 class. We were not able to complete the lab because of t...

This was the last part of my physics 204 class. We were not able to complete the lab because of time constraints. Do you know how I would approach this/what the drawing would look like/how to approach the questions? Thank you! each caso. Number the beams and note that the prism inverts their order Part X: Deviation due to a Prism (H) Use the 60 angle as the angle of the prism. Trace the path of light through the prism...
1. A ray hits an object at 15° from the vertical. If the material has index...

1. A ray hits an object at 15° from the vertical. If the material has index of refraction 1.5, what is the refraction angle? 2. If a ray is incident on a block of material at 15° from the vertical, and is refracted to 8° from the vertical, what is the index of refraction? 3. A ray of light crosses from a flint glass slab at 20° from the normal into air. At what angle does it emerge? 4. A...

Rays from a point object are incident on a prism of index of refraction n (shown) at near normal incidence. Calculate the de- viation angle of the rays. (n-0.5) α (D) (A) (B) (C) α (n +0.5) α (E)...

Rays from a point object are incident on a prism of index of refraction n (shown) at near normal incidence. Calculate the de- viation angle of the rays. (n-0.5) α (D) (A) (B) (C) α (n +0.5) α (E) (n 1) a (n1) a Rays from a point object are incident on a prism of index of refraction n (shown) at near normal incidence. Calculate the de- viation angle of the rays. (n-0.5) α (D) (A) (B) (C) α (n...
6. Refraction (4 pts) Light is incident on a slab of transparent material at an angle...

6. Refraction (4 pts) Light is incident on a slab of transparent material at an angle , as shown in the diagram. The slab has a thickness tand index of refraction n. Show that n =- sin sin(tan-1 d/t) Where d is the distance shown in the figure.
Over the visible region, the refractive index of a glass is given by the formula n...

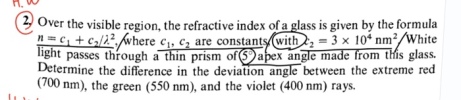

Over the visible region, the refractive index of a glass is given by the formula n = c_1 + c_2/lambda^2, where c_1, c_2 are constants, with c_2 = 3 times 10^4 nm^2. White light passes through a thin prism of 5 degree apex angle made from this glass. Determine the difference in the deviation angle between the extreme red (700 nm), the green (550 nm), and the violet (400 nm) rays.
