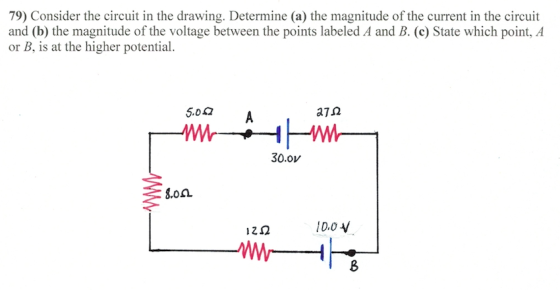

79) Consider the circuit in the drawing. Determine (a) the magnitude of the current in the...
Next > Question 4 Consider the circuit in the drawing Determine (a) the magnitude of the...
Next > Question 4 Consider the circuit in the drawing Determine (a) the magnitude of the current in the circuit and (b) the magnitude of the voltage between the points labeled A and B 5.00 A 27Ω 300 V 80 Ω 12Ω 10.0V (a) Number Units b) Number Units Attempts: O of 4 used Using multiple attempts will impact your score. 10% score re ^匍中イ 9:26 PM 1/30/20192
Consider the circuit in the drawing. (R1-2.01, R2-30 Ω, V1-27.0 VJ 8.02 10.0 V 12 Ω...

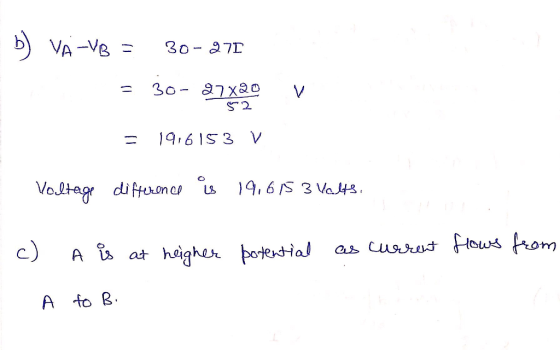

Consider the circuit in the drawing. (R1-2.01, R2-30 Ω, V1-27.0 VJ 8.02 10.0 V 12 Ω (a) Determine the magnitude of the current in the circuit. b) Determine the magnitude of the voltage between the points labeled A and B. (c) Select which point, A or B, is at the higher potential. point A point B
answer is .38 A 8) From the information given in the circuit below, (a) determine the...
answer is .38 A

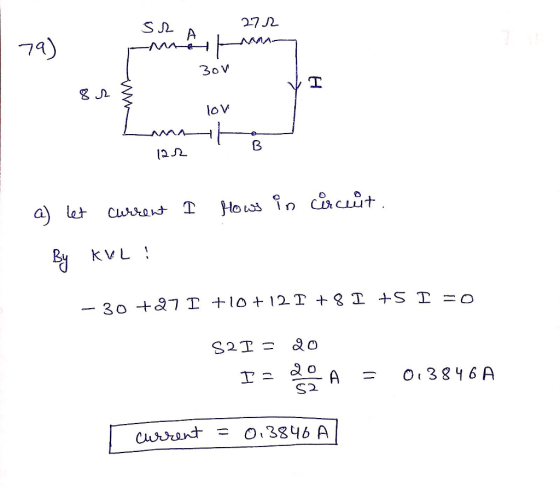

8) From the information given in the circuit below, (a) determine the current in the circuit, and (b) state which point, A or B, is at a higher potential. 27 Ω 30 V 8Ω 12Ω 10 V
Consider the circuit shown in the figure below. Determine (a) the current in the resistor of...
Consider the circuit shown in the figure below.
Determine
(a) the current in the resistor of
,
(b) the potential difference between points a and b
(c) the power delivered by the voltage source
10.00 25.0 V 10.0 b 5.00 20.0 5.00 We were unable to transcribe this image
For the circuit shown below, determine the effective resistance of the entire circuit. Find the c...
For the circuit shown below, determine the effective resistance
of the entire circuit. Find the current flowing through and voltage
drop across each resistor and draw the power box. If a compass was
placed at points A, B and C, where would it point? Explain. SHOW
ALL YOUR WORK PLEASE THANK YOU :)
PLEASE EXPLAIN AND SHOW YOUR WORK PLEASE :)!!! THANK YOU SO
MUCH
12Ω 12Ω 15Ω 12Ω 12Ω 5.0 Ω
12Ω 12Ω 15Ω 12Ω 12Ω 5.0 Ω
Question 1 In the circuit shown below, determine the magnitude and direction of current flow through...
Question 1 In the circuit shown below, determine the magnitude and direction of current flow through each resistor using KVL and KCL. [5 points]. If point A is grounded, what is the potential at point B? [1 point] If a shorting wire is connected between A and B, what power is dissipated in the 5 12 resistor? [2 points] 223 5v 322 1.5V 322
RC.L3.4-02 9.02 1.0 2 G The current in the 8.00-12 resistor in the drawing in 0.500...
RC.L3.4-02 9.02 1.0 2 G The current in the 8.00-12 resistor in the drawing in 0.500 A. 5.0 2 7.02 8.0 22 20.0 22 w 16.0 12 M D F 9.0 22 (a) Find the current in the 20.0-12, 12.0-12, and both 9.0- 12 resistors. (b) Find the voltage drop and indicate which point is at higher potential for following: between points G and F, A and B, A and E, and E and C. (c) A brand new standard...
The circuit contains a dependent current source; the magnitude and direction of the current it supplies...
The circuit contains a dependent current source; the magnitude and direction of the current it supplies are directly determined by the voltage labeled vi. Determine the voltage v/ , in mV, if v2 = R2i2 and i? =125.0 mA, if k=6.0. 12 + Akv, R₂ + 1
Please help!! Determine the voltage across the 5.0-2 resistor in the drawing. Which end of the...
Please help!!
Determine the voltage across the 5.0-2 resistor in the drawing. Which end of the resistor is at the higher potential? 5.0 Ω 10.0 Ω 10.0 Ω 10.0 v 15.0 V 2.0
39 M Consider the circuit shown in Figure P21.39. Find (a) the current in the 20.0-2...
39 M Consider the circuit shown in Figure P21.39. Find (a) the current in the 20.0-2 resistor and (b) the potential difference between points a and b. 25.0 V 10.0 10.0 5.000 20.00 5.00 Figure P21.39
Next > Question 4 Consider the circuit in the drawing Determine (a) the magnitude of the current in the circuit and (b) the magnitude of the voltage between the points labeled A and B 5.00 A 27Ω 300 V 80 Ω 12Ω 10.0V (a) Number Units b) Number Units Attempts: O of 4 used Using multiple attempts will impact your score. 10% score re ^匍中イ 9:26 PM 1/30/20192
Consider the circuit in the drawing. (R1-2.01, R2-30 Ω, V1-27.0 VJ 8.02 10.0 V 12 Ω (a) Determine the magnitude of the current in the circuit. b) Determine the magnitude of the voltage between the points labeled A and B. (c) Select which point, A or B, is at the higher potential. point A point B
answer is .38 A
8) From the information given in the circuit below, (a) determine the current in the circuit, and (b) state which point, A or B, is at a higher potential. 27 Ω 30 V 8Ω 12Ω 10 V
Consider the circuit shown in the figure below.
Determine
(a) the current in the resistor of
,
(b) the potential difference between points a and b
(c) the power delivered by the voltage source
10.00 25.0 V 10.0 b 5.00 20.0 5.00 We were unable to transcribe this image
For the circuit shown below, determine the effective resistance
of the entire circuit. Find the current flowing through and voltage
drop across each resistor and draw the power box. If a compass was
placed at points A, B and C, where would it point? Explain. SHOW
ALL YOUR WORK PLEASE THANK YOU :)
PLEASE EXPLAIN AND SHOW YOUR WORK PLEASE :)!!! THANK YOU SO
MUCH
12Ω 12Ω 15Ω 12Ω 12Ω 5.0 Ω
12Ω 12Ω 15Ω 12Ω 12Ω 5.0 Ω
Question 1 In the circuit shown below, determine the magnitude and direction of current flow through each resistor using KVL and KCL. [5 points]. If point A is grounded, what is the potential at point B? [1 point] If a shorting wire is connected between A and B, what power is dissipated in the 5 12 resistor? [2 points] 223 5v 322 1.5V 322
RC.L3.4-02 9.02 1.0 2 G The current in the 8.00-12 resistor in the drawing in 0.500 A. 5.0 2 7.02 8.0 22 20.0 22 w 16.0 12 M D F 9.0 22 (a) Find the current in the 20.0-12, 12.0-12, and both 9.0- 12 resistors. (b) Find the voltage drop and indicate which point is at higher potential for following: between points G and F, A and B, A and E, and E and C. (c) A brand new standard...
The circuit contains a dependent current source; the magnitude and direction of the current it supplies are directly determined by the voltage labeled vi. Determine the voltage v/ , in mV, if v2 = R2i2 and i? =125.0 mA, if k=6.0. 12 + Akv, R₂ + 1
Please help!!
Determine the voltage across the 5.0-2 resistor in the drawing. Which end of the resistor is at the higher potential? 5.0 Ω 10.0 Ω 10.0 Ω 10.0 v 15.0 V 2.0
39 M Consider the circuit shown in Figure P21.39. Find (a) the current in the 20.0-2 resistor and (b) the potential difference between points a and b. 25.0 V 10.0 10.0 5.000 20.00 5.00 Figure P21.39
