Distribution of Charges Part A Calculate the magnitude of the electric field at the origin due...

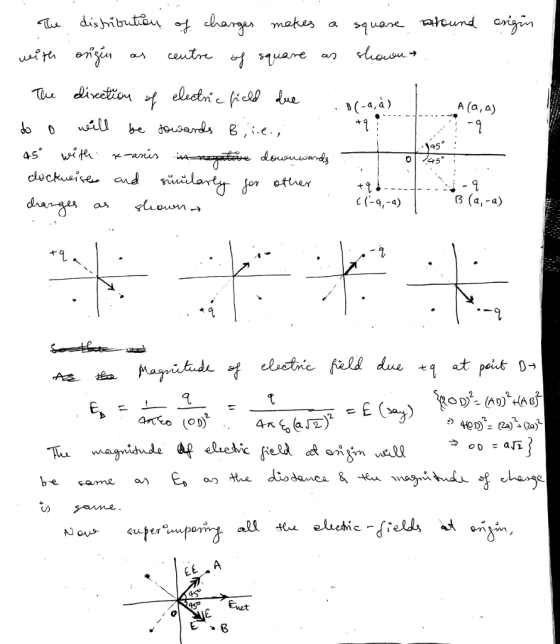

Calculate the magnitude of the electric field at the origin due to the following distribution of charges:
Calculate the magnitude of the
electric field at the origin due to the following distribution of
charges: -q at (x,y) = (a,a), -q at (-a,-a), +q at (-a,-a) and +q
at (-a,a). Where q = 5.85 × 10-7 C and a = 2.10 cm. Set up an
8-point compass at the origin, where north points along the
positive y-axis, such as that shown in the diagram to the right.

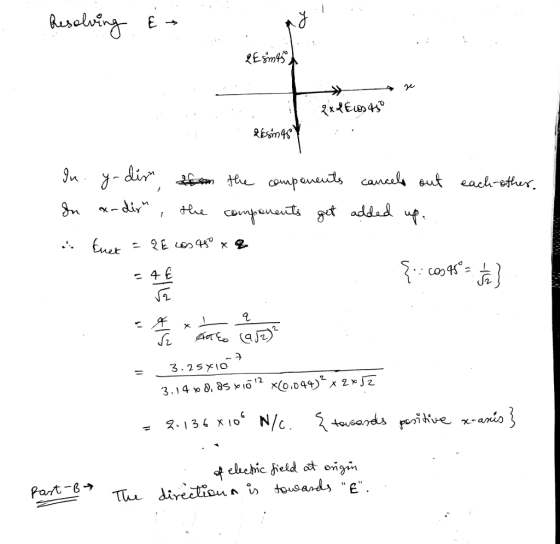

What is the direction of the electric field at the origin created...
Distribution of Charges Calculate the resnitude of the electric field et the ongin due to the...
Distribution of Charges Calculate the resnitude of the electric field et the ongin due to the fulv 'ng distribution of charqes: q dt(x,y: d d -q dt d d ,-q et d djand +q dt d d where q = 3.5ข x 10 7 Cend d =。10 cm Submit Anzwer Trics /10 set up an ¥ pomt oor pass at the rigin, where north pu nts d ony he postive γ axis, such as t at sho n n he...
The figure shows two point charges. Calculate the magnitude of the electric field at point P....
The figure shows two point charges. Calculate the magnitude of the electric field at point P. Use the following data : Q1-+ 1.80 pC, Q2-+ 1.40 μC, di-1.30 m, d2= 1.70 m. Q, P22 2 1.3945 104-4 N CA-1 Submit Answer Incorrect. Tries 3/99 Previous Tries Calculate the size of the force on a charge Q-1.10 HC placed at P due to the two charges from the previous problem.
The figure shows two point charges. Calculate the magnitude of the electric field at point P....
The figure shows two point charges. Calculate the magnitude of the electric field at point P. Use the following data: Q1-+ 1.90 μC, Q2-+ 1.40 μ。 , d,- 1.40 m, d2-1.60 m. submit Answer Incorrect. Tries 1/12 Previous Tries Calculate the size of the force on a charge Q--1 .90 μC placed at P due to the two charges from the previous problem.
The figure shows two point charges. Calculate the magnitude of the electric field at point P....
The figure shows two point charges. Calculate the magnitude of the electric field at point P. Use the following data: Q1=-1.70 pC, Q2=-1.10 pC, d,- 1.20 m, d2- 1.90 m. 2 7.95 10 3N/C Submit Answer Incorrect. Tries 2/99 Previous Tries Calculate the size of the force on a charge Q = +1.70 μC placed at P due to the two charges from the previous problem.
Electric Field Due to Two Charges what is the the electric field at a point midway...
Electric Field Due to Two Charges what is the the electric field at a point midway between a-8.46 μC and a +5.42 μC charge 3.87 cm apart? Take the direction towards the positive charge to be positive. Submit Answer Incorrect. Tries 7/10 Previous Tries
Will someone please solve the second part of this problem for me and show all the...
Will someone please solve the second part of this problem for me
and show all the steps necessary to get the answer. Thank you
?Provide my evaluation of this resource Show Metadata Prepare a printable document Provide feedback messages or contribute to the course discussion about this resource Set a bookmark for this resource HY13 1S18, Homework #2: E-field in the center of a square sing the symmetry of the arrangement, determine the direction of the electric field at the...
The figure shows two point charges. Calculate the magnitude of the electric field at point P....
The figure shows two point charges. Calculate the magnitude of the electric field at point P. Use the following data: Q1-1.60 HC, Q2 1.40 HC, di- 1.50 m, d2 1.70 m. 0, P22 2 8.719 10 3 N CA-1 Submit Answer Incorrect. Tries 2/12 Previous Tries Calculate the size of the force on a charge Q-_1.40 μC placed at P due to the two charges from the previous problem 2.44 10A-13N
An electric field can be created by a single charge or a distribution of charges. The...
An electric field can be created by a single charge or a distribution of charges. The electric field a distance r from a point charge q' has magnitude {E}=k\frac{|q'|}{r^2}. The electric field points away from positive charges and toward negative charges. A distribution of charges creates an electric field that can be found by taking the vector sum of the fields created by individual point charges. Note that if a charge q is placed in an electric field created by...
a) Calculate the magnitude of the net electric field at the origin due to these two point charges. b) Calculate...
a) Calculate the magnitude of the net electric field at the origin due to these two point charges. b) Calculate the direction of the net electric field at the origin due to these two point charges.
Distribution of Charges Calculate the resnitude of the electric field et the ongin due to the fulv 'ng distribution of charqes: q dt(x,y: d d -q dt d d ,-q et d djand +q dt d d where q = 3.5ข x 10 7 Cend d =。10 cm Submit Anzwer Trics /10 set up an ¥ pomt oor pass at the rigin, where north pu nts d ony he postive γ axis, such as t at sho n n he...
The figure shows two point charges. Calculate the magnitude of the electric field at point P. Use the following data : Q1-+ 1.80 pC, Q2-+ 1.40 μC, di-1.30 m, d2= 1.70 m. Q, P22 2 1.3945 104-4 N CA-1 Submit Answer Incorrect. Tries 3/99 Previous Tries Calculate the size of the force on a charge Q-1.10 HC placed at P due to the two charges from the previous problem.
The figure shows two point charges. Calculate the magnitude of the electric field at point P. Use the following data: Q1-+ 1.90 μC, Q2-+ 1.40 μ。 , d,- 1.40 m, d2-1.60 m. submit Answer Incorrect. Tries 1/12 Previous Tries Calculate the size of the force on a charge Q--1 .90 μC placed at P due to the two charges from the previous problem.
Electric Field Due to Two Charges what is the the electric field at a point midway between a-8.46 μC and a +5.42 μC charge 3.87 cm apart? Take the direction towards the positive charge to be positive. Submit Answer Incorrect. Tries 7/10 Previous Tries
Will someone please solve the second part of this problem for me
and show all the steps necessary to get the answer. Thank you
?Provide my evaluation of this resource Show Metadata Prepare a printable document Provide feedback messages or contribute to the course discussion about this resource Set a bookmark for this resource HY13 1S18, Homework #2: E-field in the center of a square sing the symmetry of the arrangement, determine the direction of the electric field at the...
The figure shows two point charges. Calculate the magnitude of the electric field at point P. Use the following data: Q1-1.60 HC, Q2 1.40 HC, di- 1.50 m, d2 1.70 m. 0, P22 2 8.719 10 3 N CA-1 Submit Answer Incorrect. Tries 2/12 Previous Tries Calculate the size of the force on a charge Q-_1.40 μC placed at P due to the two charges from the previous problem 2.44 10A-13N
