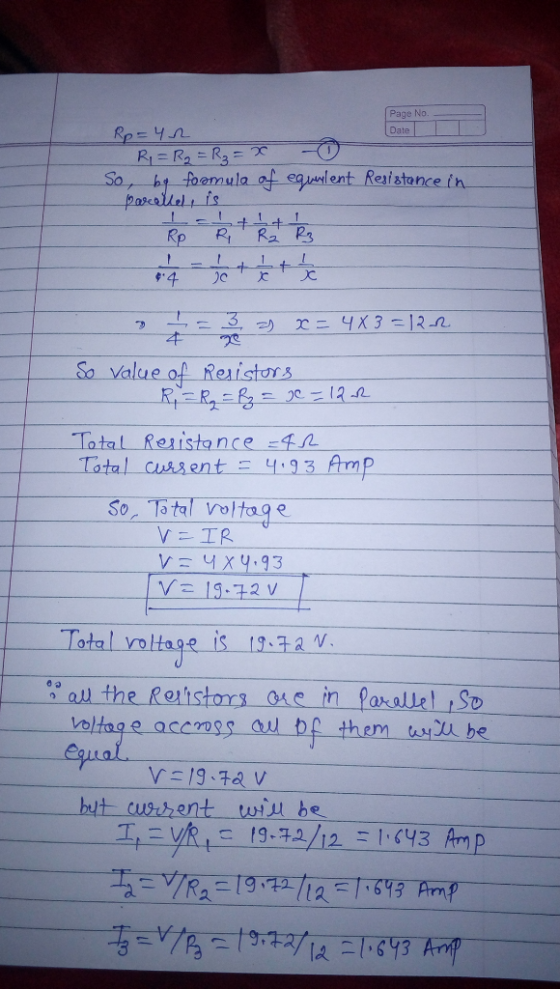

I going into the resistor is 4.93 A.
Homework Answers
Thank you....best of luck for
your exams Dear student
Add Answer to:
I going into the resistor is 4.93 A. 2) The 492 resistor from circuit #1 represents...

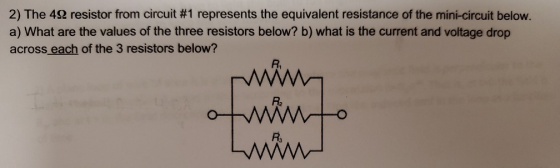

2) The 492 resistor from circuit #1 represents the equivalent resistance of the mini-circuit below. a) What are the val...
2) The 492 resistor from circuit #1 represents the equivalent resistance of the mini-circuit below. a) What are the values of the three resistors below? b) what is the current and voltage drop across each of the 3 resistors below? 12
1) For the following circuit: a) use Kirchoffs rules to solve for the currents flowing in...
1) For the following circuit: a) use Kirchoffs rules to solve for the currents flowing in the circuit, be sure to label all currents and show their directions and b) calculate the voltage drop across each resistor. R1 R3 40 1 2 B, 28 V 7 V R2 20 B2 2) The 42 resistor from circuit #1 represents the equivalent resistance of the mini-circuit below. a) What are the values of the three resistors below? b) what is the current...
R1 R3 40 12 B, 28 V 7 V R2 2 2 B2 2) The 42...
R1 R3 40 12 B, 28 V 7 V R2 2 2 B2 2) The 42 resistor from circuit #1 represents the equivalent resistance of the mini-circuit below a) What are the values of the three resistors below? b) what is the current and voltage drop across each of the 3 resistors below?
voltage going through = 28 V resistance through entire circuit = 4 ohms a) What are...
voltage going through = 28 V
resistance through entire circuit = 4 ohms
a) What are the values of the three resistors below? b) what is the current and voltage drop across each of the 3 resistors below? ww
In a parallel resistor circuit with 2 resistors The current flows through one resistor at a...
In a parallel resistor circuit with 2 resistors The current flows through one resistor at a time The current splits and flows through both resistors at the same time The equivalent resistance is equal to the sum of the resistors The potential drop across the first resistor is always the largest.
(a) What is the equivalent resistance of this circuit? That is, what would be the resistance...
(a) What is the equivalent
resistance of this circuit? That is, what would be the resistance
of a single resistor that would draw the same current and power as
this circuit does?
My answer: 135.1 OHMS
(b) What is the current in resistor “K”?
My answer: 0.114A
(c) What is the potential drop (voltage) across resistor
“M”?
(d) How much power is being delivered to resistor “N”?
(e) What is the current in resistor “O”?
Please help me with C,D,...
Answer the following: Electric Circuit I 1. Determine the voltage across each resistor and the current...
Answer the following:
Electric Circuit I 1. Determine the voltage across each resistor and the current through each resistor. 2. Determine the equivalent resistance between points A and B.
1. Consider the circuit below: Find (a) the equivalent resistance of the circuit (b) the total...
1. Consider the circuit below: Find (a) the equivalent resistance of the circuit (b) the total current in the circuit (c) the current passing through each (e) the power dissipation in the 3k2 resistor resistor (d) the voltage drop across each resistor
Consider the circuit shown in the figure below. (Assume R = 10.5.2, R2 = 2.852, and...
Consider the circuit shown in the figure below. (Assume R = 10.5.2, R2 = 2.852, and V = 7.60 V.) R 4.00 12 5.00 12 3.00 12 w (a) Calculate the equivalent resistance of the R. and 5.00-12 resistors connected in parallel. (b) Using the result of part (a), calculate the combined resistance of the Ry, 5.00-12 and 4.00-12 resistors. (c) Calculate the equivalent resistance of the combined resistance found in part (b) and the parallel 3.00-12 resistor. (d) Combine...
Justify your answer R = 2R R = 2R & R = R 2 The circuit...
Justify your answer R = 2R R = 2R & R = R 2 The circuit above contains a battery with negligible internal resistance, a closed switch S, and three resistors, each with a resistance of R or 2R. a. i. Rank the currents in the three resistors from greatest to least, with number 1 being greatest. If two resistors have the same current, give them the same ranking. 1 A 3 B 2 Ic ii. Justify your answers. b....
2) The 492 resistor from circuit #1 represents the equivalent resistance of the mini-circuit below. a) What are the values of the three resistors below? b) what is the current and voltage drop across each of the 3 resistors below? 12
1) For the following circuit: a) use Kirchoffs rules to solve for the currents flowing in the circuit, be sure to label all currents and show their directions and b) calculate the voltage drop across each resistor. R1 R3 40 1 2 B, 28 V 7 V R2 20 B2 2) The 42 resistor from circuit #1 represents the equivalent resistance of the mini-circuit below. a) What are the values of the three resistors below? b) what is the current...
R1 R3 40 12 B, 28 V 7 V R2 2 2 B2 2) The 42 resistor from circuit #1 represents the equivalent resistance of the mini-circuit below a) What are the values of the three resistors below? b) what is the current and voltage drop across each of the 3 resistors below?
voltage going through = 28 V
resistance through entire circuit = 4 ohms
a) What are the values of the three resistors below? b) what is the current and voltage drop across each of the 3 resistors below? ww
(a) What is the equivalent
resistance of this circuit? That is, what would be the resistance
of a single resistor that would draw the same current and power as
this circuit does?
My answer: 135.1 OHMS
(b) What is the current in resistor “K”?
My answer: 0.114A
(c) What is the potential drop (voltage) across resistor
“M”?
(d) How much power is being delivered to resistor “N”?
(e) What is the current in resistor “O”?
Please help me with C,D,...
Answer the following:
Electric Circuit I 1. Determine the voltage across each resistor and the current through each resistor. 2. Determine the equivalent resistance between points A and B.
1. Consider the circuit below: Find (a) the equivalent resistance of the circuit (b) the total current in the circuit (c) the current passing through each (e) the power dissipation in the 3k2 resistor resistor (d) the voltage drop across each resistor
Consider the circuit shown in the figure below. (Assume R = 10.5.2, R2 = 2.852, and V = 7.60 V.) R 4.00 12 5.00 12 3.00 12 w (a) Calculate the equivalent resistance of the R. and 5.00-12 resistors connected in parallel. (b) Using the result of part (a), calculate the combined resistance of the Ry, 5.00-12 and 4.00-12 resistors. (c) Calculate the equivalent resistance of the combined resistance found in part (b) and the parallel 3.00-12 resistor. (d) Combine...
Justify your answer R = 2R R = 2R & R = R 2 The circuit above contains a battery with negligible internal resistance, a closed switch S, and three resistors, each with a resistance of R or 2R. a. i. Rank the currents in the three resistors from greatest to least, with number 1 being greatest. If two resistors have the same current, give them the same ranking. 1 A 3 B 2 Ic ii. Justify your answers. b....
