Homework Answers
Add Answer to:

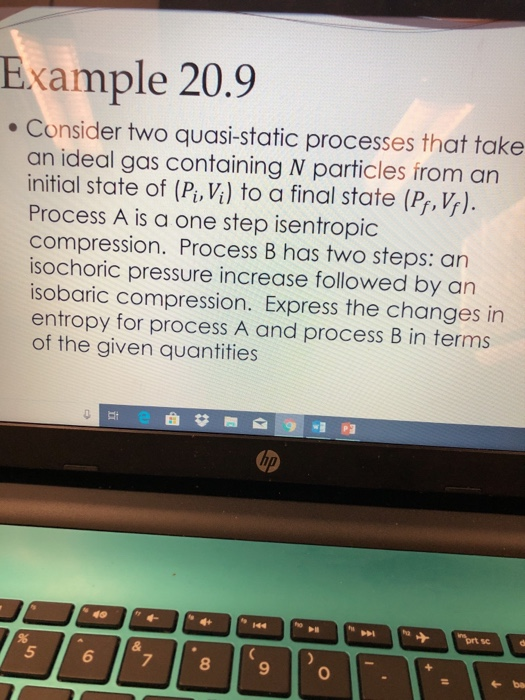

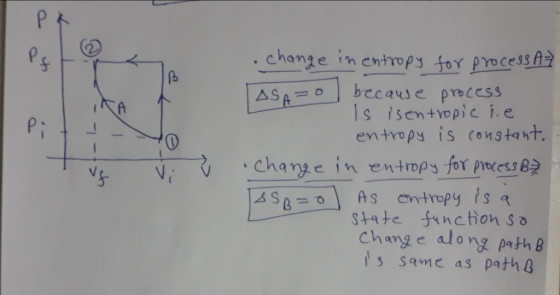

Example 20.9 Consider two quasi-static processes that take an ideal gas containing N particles from an...
TB4 The quasi-static ideal gas cycle shown to the right has three legs, an adiabatic leg #1 from (PyVị) to (P-1 atm, V3), followed by an isobaric compression leg #2 from (P-1 atm, V3) to (P -1 atm,Vi...
TB4 The quasi-static ideal gas cycle shown to the right has three legs, an adiabatic leg #1 from (PyVị) to (P-1 atm, V3), followed by an isobaric compression leg #2 from (P-1 atm, V3) to (P -1 atm,Vi), and ending with a constant volume pressurization leg #3 from (P-1 atm, VI) back to the initial state to complete the cycle. There are n moles of gas. What happens to the internal energy ( Ein) during leg #2 of this process?...
An ideal diatomic gas undergoes 3 processes in series: process 1-2: isothermal compression from pr-100kPa and...
An ideal diatomic gas undergoes 3 processes in series: process 1-2: isothermal compression from pr-100kPa and V-0.1m2 to V0.025m; process 2-3: at constant pressure and process 3-1: isentropic process closing cycle. Determine: a) ratio of the maximum and minimum temperature of the cycle, b) heats of the processes, c) thermal efficiency of the cycle, d) sketch the processes on p-V and T-s diagrams. Gas constant is 287 J/(kgK), isentropic exponent is 1.4.
12. 1 mole of an ideal gas undergoes an isothermal expansion from V1 = 1.4L followed...
12. 1 mole of an ideal gas undergoes an isothermal expansion from V1 = 1.4L followed by isobaric compression, p = cst.if P1 = 4.4atm, p2 = 1.7atm → ?- m calculate the work done by gas during the expansion. Express work in J = N·m! • For isothermal processes, AT = 0 T = cst → w=faw=fr&v=/MRT AV 594 Show your work like: `x-int_0^5 v(t)dt rarr x-int_0^5(-4*t)dt=-50 m 13. 1 mole of an ideal gas undergoes an isothermal expansion...
A monatomic ideal gas is initially at volume, pressure, temperature (Vi, Pi, Ti). Consider two different...
A monatomic ideal gas is initially at volume, pressure, temperature (Vi, Pi, Ti). Consider two different paths for expansion. Path 1: The gas expands quasistatically and isothermally to (Va, Pz. T2) Path 2: First the gas expands quasistatically and adiabatically (V2, P.,T-),where you will calculate P T. Then the gas is heated quasistically at constant volume to (Va. P2 T1). a. Sketch both paths on a P-V diagram. b. Calculate the entropy change of the system along all three segments...
answer asap please 2. (25 pts) One mole of a monoatomic ideal gas is initially at state i (P isobanic 150 kPa V-10.0L) and it is being expanded to 2.5 times its original volume along two different pro...
answer asap please
2. (25 pts) One mole of a monoatomic ideal gas is initially at state i (P isobanic 150 kPa V-10.0L) and it is being expanded to 2.5 times its original volume along two different processes: £ d. #l isobaric and #2 isothermal. sothermal a) What are the final temperatures at the two different final states fi and fi? b) What is the amount of heat (Qi and ) absorbed by the gas in the two different processes?...
One mole of an ideal mono-atomic gas is in a state A characterized by a temperature...
One mole of an ideal mono-atomic gas is in a state A characterized by a temperature TA. The gas is then subjected to a succession of three quasi-static reversible processes: An isothermal expansion A → B, which increases the volume by a factor y. The expansion factor is therefore y = VB / VA> 1. An adiabatic compression B → C which increases the pressure by a factor w. The compression factor is w = pC / pB> 1. A...
Consider a reversible isobaric process from state I (P, Vi , Ti) to state II (P,...
Consider a reversible isobaric process from state I (P, Vi , Ti) to state II (P, Vf , Tf ), which we call “path I”. The “path I” is a single step process and, therefore, pressure is held constant during the entire process. “Path II”, on the other hand, is also isobaric overall, but involves two steps: reversible isochore (step 1) + reversible isothermal (step 2): (Ti , Vi) → (Tf , Vi) → (Tf , Vf ). Assume that...
Two mole of ideal gas, is compressed adiabatically in a piston/cylinder device from 2 bar and...
Two mole of ideal gas, is compressed adiabatically in a piston/cylinder device from 2 bar and 25oC to 7 bar. The process is irreversible and requires 25% more work than a reversible, adiabatic compression from the same initial state to the same final pressure. What is the entropy change of the gas? Assume Cv=(5/2)R in this calculation.
Consider n moles of ideal gas kept in a heat-isolated cylinder (all processes are adiabatic) with...
Consider n moles of ideal gas kept in a heat-isolated cylinder (all processes are adiabatic) with a piston at external pressure p0, and at temperature T0. The external pressure is suddenly changed to p=2p0, and we wait for the system to equilibrate. The volume and the temperature of the ideal gas after equilibration is V and T, respectively. a) Calculate the amount w of work produced on the system in terms of p, p0, V, T0, and n. Using the...
TB4 The quasi-static ideal gas cycle shown to the right has three legs, an adiabatic leg #1 from (PyVị) to (P-1 atm, V3), followed by an isobaric compression leg #2 from (P-1 atm, V3) to (P -1 atm,Vi), and ending with a constant volume pressurization leg #3 from (P-1 atm, VI) back to the initial state to complete the cycle. There are n moles of gas. What happens to the internal energy ( Ein) during leg #2 of this process?...
An ideal diatomic gas undergoes 3 processes in series: process 1-2: isothermal compression from pr-100kPa and V-0.1m2 to V0.025m; process 2-3: at constant pressure and process 3-1: isentropic process closing cycle. Determine: a) ratio of the maximum and minimum temperature of the cycle, b) heats of the processes, c) thermal efficiency of the cycle, d) sketch the processes on p-V and T-s diagrams. Gas constant is 287 J/(kgK), isentropic exponent is 1.4.
12. 1 mole of an ideal gas undergoes an isothermal expansion from V1 = 1.4L followed by isobaric compression, p = cst.if P1 = 4.4atm, p2 = 1.7atm → ?- m calculate the work done by gas during the expansion. Express work in J = N·m! • For isothermal processes, AT = 0 T = cst → w=faw=fr&v=/MRT AV 594 Show your work like: `x-int_0^5 v(t)dt rarr x-int_0^5(-4*t)dt=-50 m 13. 1 mole of an ideal gas undergoes an isothermal expansion...
A monatomic ideal gas is initially at volume, pressure, temperature (Vi, Pi, Ti). Consider two different paths for expansion. Path 1: The gas expands quasistatically and isothermally to (Va, Pz. T2) Path 2: First the gas expands quasistatically and adiabatically (V2, P.,T-),where you will calculate P T. Then the gas is heated quasistically at constant volume to (Va. P2 T1). a. Sketch both paths on a P-V diagram. b. Calculate the entropy change of the system along all three segments...
answer asap please
2. (25 pts) One mole of a monoatomic ideal gas is initially at state i (P isobanic 150 kPa V-10.0L) and it is being expanded to 2.5 times its original volume along two different processes: £ d. #l isobaric and #2 isothermal. sothermal a) What are the final temperatures at the two different final states fi and fi? b) What is the amount of heat (Qi and ) absorbed by the gas in the two different processes?...
