Homework Answers
Add Answer to:
3. Calculate the phase and group velocity at a wavelength of λ 1.68μrm in fused silica,...
2) Consider light of free-space wavelength 1300nm traveling in pure silica medium. Calculate the ...
2) Consider light of free-space wavelength 1300nm traveling in pure silica medium. Calculate the phase velocity and group velocity of light in this medium. Is the group velocity ever greater than the phase velocity? (Use figure 1.8) 149 48 47 .46 45 In 500 700 900 1100 1300 1500 1700 1900 Wavelength (nm) FIGURE 1.8 Refractive index n and the group index Ng of pure SiO (silica) glass as a function of wavelength
2) Consider light of free-space wavelength 1300nm...
6. A GaAs laser diode operating at 850 nm has a 500 μm cavity length and a refractive index of n 3.7. The gain-wavelength relationship is Gaussian, given by: g(λ)-g(0) exp[-a-h)2 / 201 a) Calcula...
6. A GaAs laser diode operating at 850 nm has a 500 μm cavity length and a refractive index of n 3.7. The gain-wavelength relationship is Gaussian, given by: g(λ)-g(0) exp[-a-h)2 / 201 a) Calculate the frequency and wavelength spacing (Au) and Δλ). b) If at the halfpower point (g-0.5g(0)) we have λ-ho-2 nm, what is the spectral width of the gain, o?
6. A GaAs laser diode operating at 850 nm has a 500 μm cavity length and a...
2. Refractive index and the Sellmeier dispersion equation The Sellmeier dispersion equation is an...
2. Refractive index and the Sellmeier dispersion equation The Sellmeier dispersion equation is an empirical expression for the refractive index. of glass in terms of the wavelength 2, + 034Selmeier equation (1) R-ler where G1, G2, G3 and λι, λ2 and λ3 are constants (called Sellmeier coefficients) that are determined by fitting this expression to the experimental data. The actual Sellmeier formula has more terms in the right hand summation of the same type e.g. Giaka-at) where i 4, 5..but...
(3) For modes propagating in a waveguide, compute phase velocity and group velocity (10 pts)
(3) For modes propagating in a waveguide, compute phase velocity and group velocity (10 pts)
A UPEMW propagating in an infinite lossless dielectric medium has the following instantaneous expression for its...
A UPEMW propagating in an infinite lossless dielectric medium has the following instantaneous expression for its magnetic field component: H(r,t) = -iy2 sin(6π x 108t - 20πz + 300), A/m. Find: the frequency f of the wave in Hz the wavelength λ of the wave in m the phase velocity vph of the wave the group velocity vg of the wave the relative refractive index nr of the dielectric medium the unit vectors iE, iHand ik the phasor expression for...
Question 3 An electromagnetic wave is coupled into a ring resonator. The resonance condition of the...
Question 3 An electromagnetic wave is coupled into a ring resonator. The resonance condition of the ring is that ma-nL, where m is an integer, λ is the wavelength, n is the refractive index of the medium and L is the geometrical length of the resonator path. a) If the resonator is made of glass, n = 1.46, and has a radius of 50pm, calculate the wavelengths of radiation that would meet the resonance condition for m =295 and m=296...
1.Vp and Vg are the phase velocity and group velocity, respectively, of the de Broglie wave...
1.Vp and Vg are the phase velocity and group velocity, respectively, of the de Broglie wave for an electron moving with the velocity V, and C is the velocity of light in free space. Which of the following is incorrect? (a) Vp> Vg (b) Vp>C (c) Vg<C (d) Vg=V (e) Vp=V 2.An atomic force microscope (AFM) probe is essentially a cantilever with a nanosized tip at the free end. One scan mode of AFM is to drive the probe as...
I need help with question 9. Velocity of light in air 3 x 10 ms Speed...
I
need help with question 9.
Velocity of light in air 3 x 10 ms Speed of sound in air 340 ms 5. a. Calculate the frequency of a wave in the visible spectrum of wavelength 600 nm. [2 b. The wave is incident upon a glass surface making an angle of incidence of 40. It is refracted at an angle of 25. Calculate: i. The refractive Index of glass. 2 ii. The velocity of light in the glass. 2...
I) Sketch a ray diagram of a normally polarized electromagnetic field interacting with a glass/ai...
i) Sketch a ray diagram of a normally polarized electromagnetic field interacting with a glass/air interface. Calculate the critical angle for the glass/air interface (nI(pure glass).5; n2(air)-l). For this calculation, you can ignore the polarization because the critical angle is the same for either normal or parallel normalisation. ii)Derive an expression for the wavelength of the transmitted wave as a function of the refractive index ni at®i-0c from the phase matching boundary requirement at the glass/air interface (see Fig. 1)....
Problem 2-For a rectangular metallic waveguide of width b-2 cm and height a-3 cm, calculate the...
Problem 2-For a rectangular metallic waveguide of width b-2 cm and height a-3 cm, calculate the following. (a) What are the supported mode(s) at 6 GHz? Calculate phase velocity and (b) What are the supported mode(s) at 8 GHz? Calculate phase velocity and (c) Plot the group velocity dispersion parameter β2 (-d+p) for the lowest order (d) Consider the lowest order mode supported in the rectangular waveguid<e group velocity of those mode(s) at 6GHz. group velocity of those mode(s) at...
2) Consider light of free-space wavelength 1300nm traveling in pure silica medium. Calculate the phase velocity and group velocity of light in this medium. Is the group velocity ever greater than the phase velocity? (Use figure 1.8) 149 48 47 .46 45 In 500 700 900 1100 1300 1500 1700 1900 Wavelength (nm) FIGURE 1.8 Refractive index n and the group index Ng of pure SiO (silica) glass as a function of wavelength
2) Consider light of free-space wavelength 1300nm...
6. A GaAs laser diode operating at 850 nm has a 500 μm cavity length and a refractive index of n 3.7. The gain-wavelength relationship is Gaussian, given by: g(λ)-g(0) exp[-a-h)2 / 201 a) Calculate the frequency and wavelength spacing (Au) and Δλ). b) If at the halfpower point (g-0.5g(0)) we have λ-ho-2 nm, what is the spectral width of the gain, o?
6. A GaAs laser diode operating at 850 nm has a 500 μm cavity length and a...
2. Refractive index and the Sellmeier dispersion equation The Sellmeier dispersion equation is an empirical expression for the refractive index. of glass in terms of the wavelength 2, + 034Selmeier equation (1) R-ler where G1, G2, G3 and λι, λ2 and λ3 are constants (called Sellmeier coefficients) that are determined by fitting this expression to the experimental data. The actual Sellmeier formula has more terms in the right hand summation of the same type e.g. Giaka-at) where i 4, 5..but...
(3) For modes propagating in a waveguide, compute phase velocity and group velocity (10 pts)

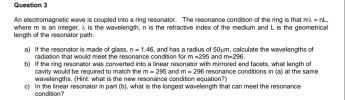

Question 3 An electromagnetic wave is coupled into a ring resonator. The resonance condition of the ring is that ma-nL, where m is an integer, λ is the wavelength, n is the refractive index of the medium and L is the geometrical length of the resonator path. a) If the resonator is made of glass, n = 1.46, and has a radius of 50pm, calculate the wavelengths of radiation that would meet the resonance condition for m =295 and m=296...
I
need help with question 9.
Velocity of light in air 3 x 10 ms Speed of sound in air 340 ms 5. a. Calculate the frequency of a wave in the visible spectrum of wavelength 600 nm. [2 b. The wave is incident upon a glass surface making an angle of incidence of 40. It is refracted at an angle of 25. Calculate: i. The refractive Index of glass. 2 ii. The velocity of light in the glass. 2...
i) Sketch a ray diagram of a normally polarized electromagnetic field interacting with a glass/air interface. Calculate the critical angle for the glass/air interface (nI(pure glass).5; n2(air)-l). For this calculation, you can ignore the polarization because the critical angle is the same for either normal or parallel normalisation. ii)Derive an expression for the wavelength of the transmitted wave as a function of the refractive index ni at®i-0c from the phase matching boundary requirement at the glass/air interface (see Fig. 1)....
Problem 2-For a rectangular metallic waveguide of width b-2 cm and height a-3 cm, calculate the following. (a) What are the supported mode(s) at 6 GHz? Calculate phase velocity and (b) What are the supported mode(s) at 8 GHz? Calculate phase velocity and (c) Plot the group velocity dispersion parameter β2 (-d+p) for the lowest order (d) Consider the lowest order mode supported in the rectangular waveguid<e group velocity of those mode(s) at 6GHz. group velocity of those mode(s) at...
