4. For each of the charges in the figure, Icm c m agnitude and directi net...
4. For each of the charges in the figure, calculate the magnitude and direction of the...

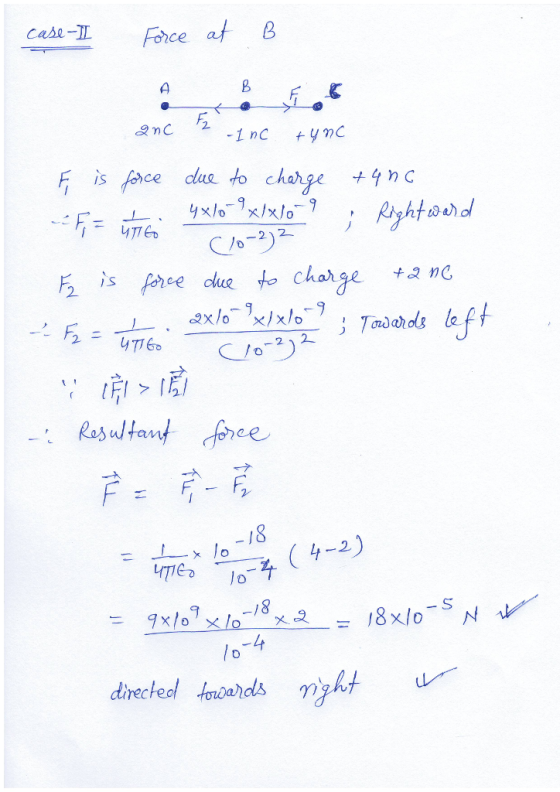

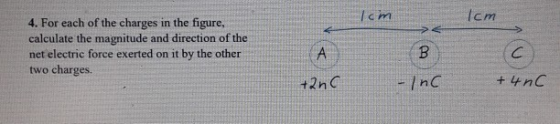

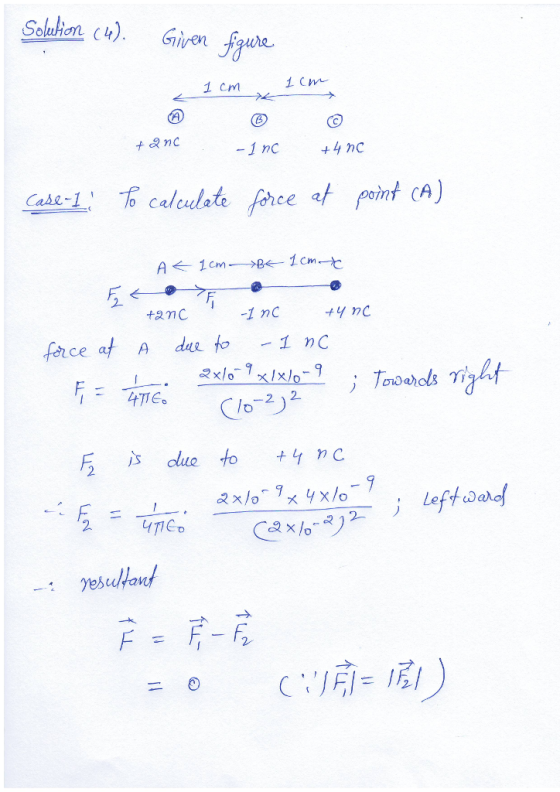

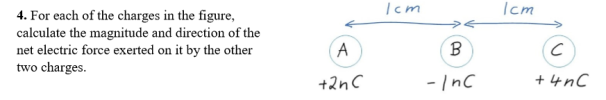

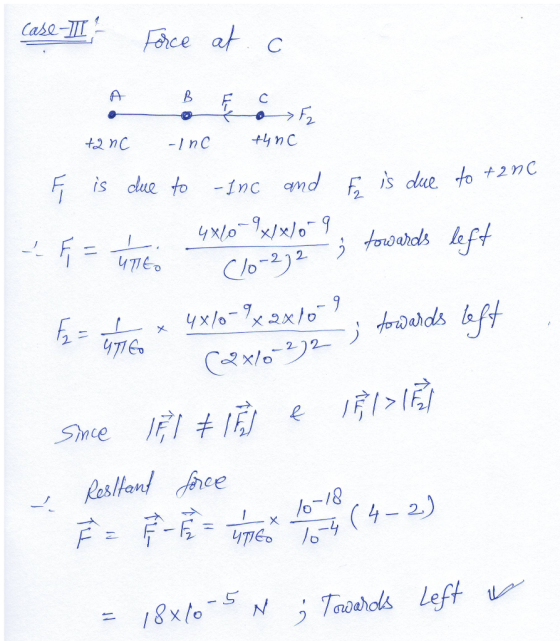

4. For each of the charges in the figure, calculate the magnitude and direction of the net electric force exerted on it by the other two charges. Icm lcm t2nC -InC+ nC
Glven two particles with Q-2.10-C charges as shown in the figure below and a particle with...
Glven two particles with Q-2.10-C charges as shown in the figure below and a particle with charge q1.35 x 10 level of potential V- 0 at r-) C at the origin. (Note: Assume a reference x -0.800 m x0.800 m (a) What is the net force exerted by the two 2.10-uC charges on the charge q? N (b) What is the electric field at the origin due to the two 2.10-uC particles? N/C (c) What is the electrical potential at...
Three charges of magnitude 9.0 x 10-4 C each are located at x = 1.0 m,...
Three charges of magnitude 9.0 x 10-4 C each are located at x = 1.0 m, y = 0.0 m, at x = 0.0 m, y = 0.0 m, and at x = -1.0 m, y = 0.0 m. The one in the middle is negative, while the other two are positive. What is the net Coulombic force exerted by them on a negative 9.0 x 10-5 C charge located at x = 0.0 m, y = 2.0 m? (The...
Three point charges lie along a straight line as shown in the figure below
Three point charges lie along a straight line as shown in the figure below, where q1 = 6.30 µC, q2 = 1.59 µC, and q3 = -2.12 µC. The separation distances are d1 = 3.00 cm and d2 = 2.00 cm. Calculate the magnitude and direction of the net electric force on each of the charges.Three charges lie along a horizontal line. Positive charge q1 is on the left. Positive charge q2 is a distance d1 to the right of...
Given two particles with Q = 1.70-C charges as shown in the figure below and a...
Given two particles with Q = 1.70-C charges as shown in the figure below and a particle with charge q = 1.34 x 10-18 C at the origin. (Note: Assume a reference level of potential V = 0 at r = o.) + x= -0.800 m 0 x= 0.800 m (a) What is the net force exerted by the two 1.70-C charges on the test charge q? (b) What is the electric field at the origin due to the two...
In red, are the answers, please show the work for each:) 1. Two particles with charges,...
In red, are the answers, please
show the work for each:)
1. Two particles with charges, q 3 x 106 C and q2 12 x 106 C, are located along the x-axis at positions with coordinates (0, 0) and (4, 0) m respectively. All distances are n meters. (a) At what point along the x-axis, other than infinity, should a third charge q3 5 x 10 C be placed such that the net electric force on it is zero? (b)...
Two point charges q1 and q2 arefixed at the two corners of a square, as...
Two point charges q1 and q2 are
fixed at the two corners of a square, as shown in the figure. The
length of each side of the square is 0.5 m. A negative
charge of q= -0.5μC is placed at corner A.a) Determine the magnitude and the direction of the electric
force F1 exerted on charge q by charge
q1.b) Determine the magnitude and the direction of the electric
force F2 exerted on charge q by charge
q2.c) Determine the magnitude...
Determine the value of the NET V-field at location E. iflg. 0.021 m. 1981 = lqcl...
Determine the value of the NET V-field at location E. iflg. 0.021 m. 1981 = lqcl = 19 -2.3 10-C, and d = - Four charges are arranged on a horizontal line shown in the figure. e the same amount of charge, but with polarities as Location a) Draw vectors to represent the electric force exerted on charge by each of the other charges. Your vectors will be graded on direction and size relative to each other (but not exact...
Three point charges are arranged as shown in the figure below. Find the magnitude and direction...
Three point charges are arranged as shown in the figure below. Find the magnitude and direction of the electric force on the particle q 5.29 nC at the origin. (Let ri2 0.296 m.) 6.00 nC 0.100 m -3.00 nC step 1 The strategy to use when calculating the force exerted by a set of several point charges is to find first the forces exerted by each of the point charges individually. The force exerted by the entire set of chargés...
4. For each of the charges in the figure, calculate the magnitude and direction of the net electric force exerted on it by the other two charges. Icm lcm t2nC -InC+ nC
Glven two particles with Q-2.10-C charges as shown in the figure below and a particle with charge q1.35 x 10 level of potential V- 0 at r-) C at the origin. (Note: Assume a reference x -0.800 m x0.800 m (a) What is the net force exerted by the two 2.10-uC charges on the charge q? N (b) What is the electric field at the origin due to the two 2.10-uC particles? N/C (c) What is the electrical potential at...
Given two particles with Q = 1.70-C charges as shown in the figure below and a particle with charge q = 1.34 x 10-18 C at the origin. (Note: Assume a reference level of potential V = 0 at r = o.) + x= -0.800 m 0 x= 0.800 m (a) What is the net force exerted by the two 1.70-C charges on the test charge q? (b) What is the electric field at the origin due to the two...
In red, are the answers, please
show the work for each:)
1. Two particles with charges, q 3 x 106 C and q2 12 x 106 C, are located along the x-axis at positions with coordinates (0, 0) and (4, 0) m respectively. All distances are n meters. (a) At what point along the x-axis, other than infinity, should a third charge q3 5 x 10 C be placed such that the net electric force on it is zero? (b)...
Two point charges q1 and q2 are
fixed at the two corners of a square, as shown in the figure. The
length of each side of the square is 0.5 m. A negative
charge of q= -0.5μC is placed at corner A.a) Determine the magnitude and the direction of the electric
force F1 exerted on charge q by charge
q1.b) Determine the magnitude and the direction of the electric
force F2 exerted on charge q by charge
q2.c) Determine the magnitude...
Determine the value of the NET V-field at location E. iflg. 0.021 m. 1981 = lqcl = 19 -2.3 10-C, and d = - Four charges are arranged on a horizontal line shown in the figure. e the same amount of charge, but with polarities as Location a) Draw vectors to represent the electric force exerted on charge by each of the other charges. Your vectors will be graded on direction and size relative to each other (but not exact...
Three point charges are arranged as shown in the figure below. Find the magnitude and direction of the electric force on the particle q 5.29 nC at the origin. (Let ri2 0.296 m.) 6.00 nC 0.100 m -3.00 nC step 1 The strategy to use when calculating the force exerted by a set of several point charges is to find first the forces exerted by each of the point charges individually. The force exerted by the entire set of chargés...
