The voltage across a resistor oscillates sinusodially. The resistor has a value of R and the...

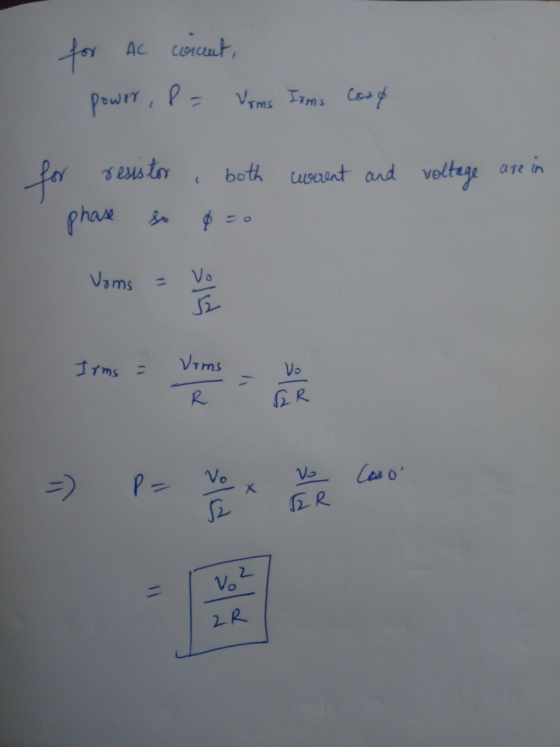

The voltage across a resistor oscillates sinusodially. The resistor has a value of R and the voltage is given by v(t) = Vo sin[wt+a]. Calculate the power dissipated by this resistor over one complete cycle.
Homework Answers
Add Answer to:
The voltage across a resistor oscillates sinusodially. The resistor has a value of R and the...
Page 1. (a) Prove that if the voltage across a resistor Ri is a sine wave with amplitude Vcc, then the average power dissipated during one cycle is given by Vec/2R (b) A Class B BJT output stage...
Page 1. (a) Prove that if the voltage across a resistor Ri is a sine wave with amplitude Vcc, then the average power dissipated during one cycle is given by Vec/2R (b) A Class B BJT output stage is shown in Fig. I. Assume that Vout(t) = Vcc. sin wt; Voe >> VCE(oat); and . Also ignore any crossover distortion effects due to the deddband in the voltage transfer characteristic. Sketch the waveforms for lci(t), Ic2(t) and It(t). (c) Find...
1. A resistor R and capacitor care connected in series with an AC voltage source with...
1. A resistor R and capacitor care connected in series with an AC voltage source with frequency f and maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejº), find expressions for Z and Ⓡ. Write your answers in terms of the variables R, C, and o(= 21f). b. If the voltage source is described by the phasor V = V, ejwt, and...
A resistor and capacitor are connected in series across an ac generator. The voltage of the...
A resistor and capacitor are connected in series across an ac generator. The voltage of the generator is given by V() = Vocos(wt), where Vo = 120V,w = 120x rad/s, R = 55082, and C = 7.54F. (a) What is the magnitude of the impedance of the RC circuit? (b) What is the amplitude of the current through the resistor? (e) What is the phase difference between the voltage and current? The magnitude of the impedance is The amplitude of...
A resistor with R = 350 Ω and an inductor are connected in series across an...
A resistor with R = 350 Ω and an inductor are connected in series across an ac source that has voltage amplitude 500 V . The rate at which electrical energy is dissipated in the resistor is 306 W (a) What is the impedance Z of the circuit? (b) What is the amplitude of the voltage across the inductor? (c) What is the power factor?
1. (a) Prove that if the voltage across a resistor RL is a sine wave with...
1. (a) Prove that if the voltage across a resistor RL is a sine wave with amplitude Vcc, then the average power dissipated during one cycle is given by Vc/2RL (b) A Class B BJT output stage is shown in Fig. 1. Assume that Vout (t)-Vcc sinwt; Voc >> VCE(sat); and ß - oo. Also ignore any crossover distortion effects due to the deadband in the voltage transfer characteristic. Sketch the waveforms for Ici (t), Ic2(t), and IL(t) (c) Find...
A resistor and capacitor are connected in series across an ac generator. The voltage of the...
A resistor and capacitor are connected in series across an ac generator. The voltage of the generator is given by V(0) = Vocos(wt), where VO = 120V, w = 120+ rad/s, R=55092, and C = 3pF. (a) What is the magnitude of the impedance of the RC circuit (b) What is the amplitude of the current through the resistor? (c) What is the phase difference between the voltage and current? The magnitude of the impedance is 1041.3 22. The amplitude...
when simplifying Vo sinwt = iR+ L.di/dt ,to undergo first order linear differention, why is Vo divided by R instead of L...
when simplifying Vo sinwt = iR+
L.di/dt ,to undergo first order linear differention, why is Vo
divided by R instead of L?
APPLICATION FIRST ORDER LINEAR Given: a resistor inductor circuit driven by a sine wave generator with resistance R ohms, L Henrys. The generator voltage is given by V = Vo sin wt AA R Vo sin (w t) (Yeah, that's an inductor let's see you do better!) di The differential equation for the circuit (from Kirchoff's voltage law)...
2. A resistor R and inductor L are connected in series with an AC voltage source...
2. A resistor R and inductor L are connected in series with an AC voltage source with frequency fand maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejo), find expressions for Z and Ø. Write your answers in terms of the variables R, L, and o(= 21f). b. If the voltage source is described by the phasor V = Voejut, and the...
2. The voltage across the 22.522 resistor in the circuit below is 90 V, positive at...
2. The voltage across the 22.522 resistor in the circuit below is 90 V, positive at the upper terminal A 90 V 222.5 1 240 V 512 20.02 mise (a) Find the power dissipated in each resistor (b) Find the power delivered by the voltage source.
(a) Find the current across the resistor. (b) Find the current across the inductor. (c) What...
(a) Find the current across the resistor.
(b) Find the current across the inductor.
(c) What is the magnitude of the total current?
(d) Find the impedance of the circuit.
(e) What is the phase angle between the current and the
voltage?
Consider the parallel RL circuit shown in Figure 12.11.4 V(t) R &L Figure 12.11.4 Parallel RL circuit The AC voltage source is V(t)Vo, sin ot
Page 1. (a) Prove that if the voltage across a resistor Ri is a sine wave with amplitude Vcc, then the average power dissipated during one cycle is given by Vec/2R (b) A Class B BJT output stage is shown in Fig. I. Assume that Vout(t) = Vcc. sin wt; Voe >> VCE(oat); and . Also ignore any crossover distortion effects due to the deddband in the voltage transfer characteristic. Sketch the waveforms for lci(t), Ic2(t) and It(t). (c) Find...
1. A resistor R and capacitor care connected in series with an AC voltage source with frequency f and maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejº), find expressions for Z and Ⓡ. Write your answers in terms of the variables R, C, and o(= 21f). b. If the voltage source is described by the phasor V = V, ejwt, and...
A resistor and capacitor are connected in series across an ac generator. The voltage of the generator is given by V() = Vocos(wt), where Vo = 120V,w = 120x rad/s, R = 55082, and C = 7.54F. (a) What is the magnitude of the impedance of the RC circuit? (b) What is the amplitude of the current through the resistor? (e) What is the phase difference between the voltage and current? The magnitude of the impedance is The amplitude of...
1. (a) Prove that if the voltage across a resistor RL is a sine wave with amplitude Vcc, then the average power dissipated during one cycle is given by Vc/2RL (b) A Class B BJT output stage is shown in Fig. 1. Assume that Vout (t)-Vcc sinwt; Voc >> VCE(sat); and ß - oo. Also ignore any crossover distortion effects due to the deadband in the voltage transfer characteristic. Sketch the waveforms for Ici (t), Ic2(t), and IL(t) (c) Find...
A resistor and capacitor are connected in series across an ac generator. The voltage of the generator is given by V(0) = Vocos(wt), where VO = 120V, w = 120+ rad/s, R=55092, and C = 3pF. (a) What is the magnitude of the impedance of the RC circuit (b) What is the amplitude of the current through the resistor? (c) What is the phase difference between the voltage and current? The magnitude of the impedance is 1041.3 22. The amplitude...
when simplifying Vo sinwt = iR+
L.di/dt ,to undergo first order linear differention, why is Vo
divided by R instead of L?
APPLICATION FIRST ORDER LINEAR Given: a resistor inductor circuit driven by a sine wave generator with resistance R ohms, L Henrys. The generator voltage is given by V = Vo sin wt AA R Vo sin (w t) (Yeah, that's an inductor let's see you do better!) di The differential equation for the circuit (from Kirchoff's voltage law)...
2. A resistor R and inductor L are connected in series with an AC voltage source with frequency fand maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejo), find expressions for Z and Ø. Write your answers in terms of the variables R, L, and o(= 21f). b. If the voltage source is described by the phasor V = Voejut, and the...
2. The voltage across the 22.522 resistor in the circuit below is 90 V, positive at the upper terminal A 90 V 222.5 1 240 V 512 20.02 mise (a) Find the power dissipated in each resistor (b) Find the power delivered by the voltage source.
(a) Find the current across the resistor.
(b) Find the current across the inductor.
(c) What is the magnitude of the total current?
(d) Find the impedance of the circuit.
(e) What is the phase angle between the current and the
voltage?
Consider the parallel RL circuit shown in Figure 12.11.4 V(t) R &L Figure 12.11.4 Parallel RL circuit The AC voltage source is V(t)Vo, sin ot
