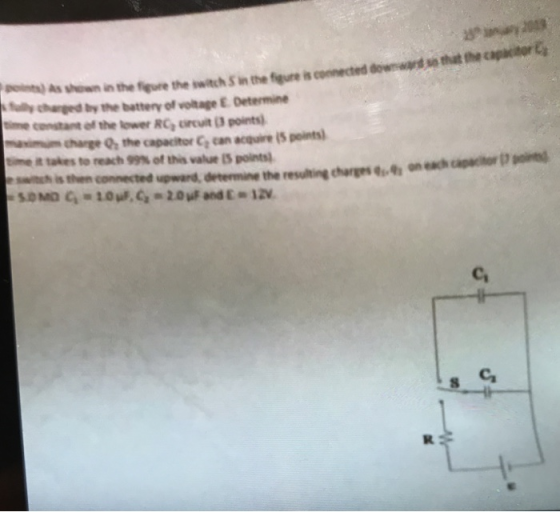

As shown in the figure the switch Sin the fgure as conmected oththasor C chaged by...
The capacitor in the figure shown is initially uncharged and the switch, in position c, is not connected to either side of the circuit. The switch is now flipped to position a for 10 ms, (a) What is voltage difference across the capacitor? (b) then the switch flipped to position b for 10 ms and then brought back to position c. What the final voltage difference across the capacitor?
5. [RC Circuits] Consider the circuit shown in Figure 5 attached. As shown, the switch is in position "A" for t < 0, and the circuit has been at rest for a long time. At time t = 0, the switch opens and the capacitor starts to drain across the resistor. (a) When the switch is closed and there is only a direct current (DC) source, the capacitor acts like an open circuit. Find the constant voltage across the capacitor...
Please show all work.
4) A first capacitor having capacitance, C, is initially connected to battery having terminal voltage V as shown in the figure below. After static equilibrium is established, the charged capacitor is removed from the battery and connected to a second initially uncharged capacitor having capacitance C2. Determine an expression {C1, C2, V] for the final potential across the first capacitor long after the switch is closed. CI C2 C1
3. A charged capacitor is connected to a resistor and a switch as shown in the figure. The circuit has a time constant of 1.50 s. Soon after the switch is closed, the charge on the capacitor is 70.0% of its initial charge. C3 a) Find the time interval required for the capacitor to reach this charge. b) If R 250 kS2 what is the value of C?
(1) Consider the RC circuit shown in Figure 1. For t<0 the switch is open, and the charge stored on the capacitor is 0. At t-0 the switch is closed, and the voltage source begins charging the capacitor. Let R1-R2-220 Ω , C-0.47 μ F , Vs-5 V. (a) Write the differential equation as an expression for the capacitor voltage fort> 0 (i.e. write the differential equation) and calculate the time constant (b) Calculate the steady-state capacitor voltage R2 R1...
10 DIELECTRICS IN A CAPACITOR 105 92 4AC Figure 18.43: Problem 3 C1 Figure 18.44: Problem 4 Problem 5 i) Determine the equivalent capacitance for the system of capacitors shown in figure (18.45), if C1-2pF,C2-4uF and Cs -3uF i) Determine the charge on the capacitors Ch. C2 and C's,that are closest to the points A and B, when the potential difference between points A and B, VA - VB-200V ii) Determine the potential difference between point C and D, Vc-VD...
The switch is closed at time t = 0. The battery, shown in the figure has a voltage of 3.21 Volts. The capacitor is initially uncharged. For the circuit below, with Resistance 8.95 Ohms and Capacitance 5.65 Farads, what is the energy in Joule stored in the capacitor at time t= 4.09 seconds?
A charged capacitor is connected to a resistor and a switch as
in the figure below. The circuit has a time constant of 1.15 s.
Soon after the switch is closed, the charge on the capacitor is
59.0% of its initial charge.
(a) Find the time interval required for the capacitor to reach
this charge. _____s
(b) If R = 240 k?, what is the value of C?
C=_____?F
2
A capacitor with C = 1.40×10−5 F is connected as shown in the figure (Figure 1) with a resistor with R = 950 Ω and an emf source with E = 18.0 V and negligible internal resistance. Initially the capacitor is uncharged and the switch S is in position 1. The switch is then moved to position 2, so that the capacitor begins to charge. After the switch has been in position 2 for 10.0 ms, the switch is moved...
The capacitors shown in the figure below are initially uncharged
with the switch S1 open and switch S2 closed. After S1 andS2 have been closed for a long time, determine
the voltage across the 28.0 μF capacitor.
