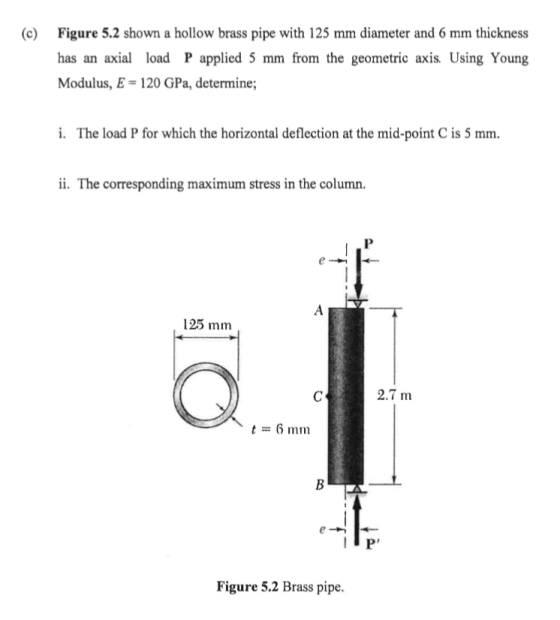

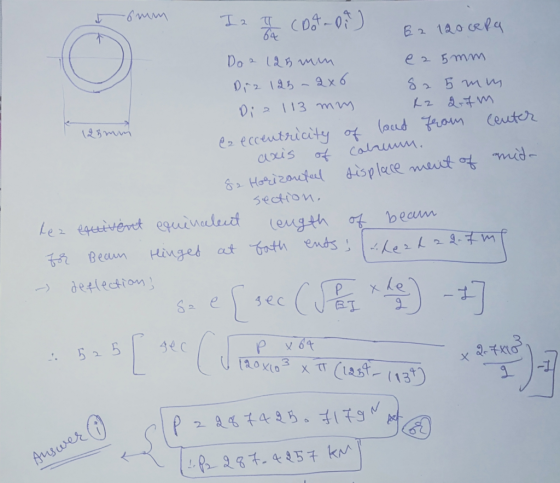

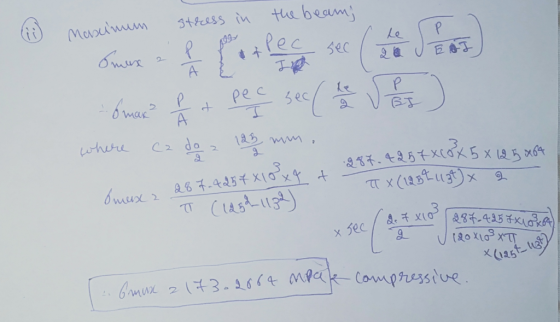

Figure 5.2 shown a hollow brass pipe with 125 mm diameter and 6 mm thickness (c)...
1.5-7 A hollow, brass circular pipe ABC (oce figure supports a load P, 118 kN acting at the top A...
please help ASAP
1.5-7 A hollow, brass circular pipe ABC (oce figure supports a load P, 118 kN acting at the top A second load P -98 kN is uaiformly distributed around the cap plate at B. The diameters and thicknesses of the upper and lower parts of the pipe are 31 mm ,,-12 mm, dae" 57 mm, and tac· 9 mm, respectively. The modulus of clasticity is 96 GPa. When both loads are fully applied, the wall thickness of...
Q-1 A solid circular rod with a diameter d = 18 mm is shown in Figure...
Q-1 A solid circular rod with a diameter d = 18 mm is shown in Figure Q-3. The rod is made of an aluminum alloy that has an elastic modulus E = 72 GPa and a Poisson's ratio v=0.32. When subjected to the axial load P, the diameter of the rod decreases by 0.025 mm. For a factor of safety of 1.75, a) Determine the magnitude of the safe allowable load P. pts.] b) If we have a 12 mm...
The hollow steel construction auger in Figure 4 has an outer diameter d2 = 140 mm...
The hollow steel construction auger in Figure 4 has an outer diameter d2 = 140 mm and thickness of t = 8 mm. The steel has a shear modulus of elasticity E = 200 GPa and v = 0.3. For an applied torque of 35 kN m, determine the following quantities: a) Shear stress at the mid-center of the thickness t of the shaft. [2] b) Shear stress on the outer surface. [1] c) Shear stress in the inner surface,...
4.A thin-walled cylindrical column carries a weightless arch and is loaded as shown in Figure 4. The column has an internal diameter of 250 mm with a thickness of 2 mm Given: E-200 GPa and 0.3 The an...
4.A thin-walled cylindrical column carries a weightless arch and is loaded as shown in Figure 4. The column has an internal diameter of 250 mm with a thickness of 2 mm Given: E-200 GPa and 0.3 The answer to each part of the question is to be used for subsequent parts (a)Determine the stresses on the outer surface of the cylinder at points A and B due to (8 marks) (b) Determine the minimum internal pressure p required if the...
of a brass core (diameter d, -8 mm) surrounded by a steel shell (inner diameter d2...
of a brass core (diameter d, -8 mm) surrounded by a steel shell (inner diameter d2 8.75 mm, outer diameter d -10 mm), topped by a rigid cap. A load P compresses the core and shell, which have length L 120 mm. The moduli of elasticity of the brass and steel are Eb- 101 GPa and E 200 GPa, respectively. a) What load P will compress the assembly by 0.104 mm? b) If the compressive yield stress of the brass...
the hollow tube down has an outside diameter of 45 mm and an inside diameter of...
the hollow tube down has an outside diameter of 45 mm
and an inside diameter of 40 mm. the tube is made of an aluminum
alloy with a minimum yield strength of 280 MPa. the bending load is
F =1.5 kN, the axial load is P = 10kN and the twisting moment is T
= 70 N-m. Determine the factor of safety based on the stress at
point A using (a) the maximum shear stress theory and (b) the
distortion...
Find the minimum required thickness tmin for a steel pipe column of length L-3.6 m and [25 pts.] Q-3 outer diameter d=1...
Find the minimum required thickness tmin for a steel pipe column of length L-3.6 m and [25 pts.] Q-3 outer diameter d=160 mm supporting an axial load P-240 kN (See Fig. below). The column is fixed at the base and free at the top. (Use E 200 GPa and Sy-250 MPa.) -The critical 1loading is calculated from Euler's formula, L 2EI Per er (Le/r Le equivalent length ka/
Find the minimum required thickness tmin for a steel pipe column of...
According to machine elements 1 Q-1 A solid circular rod with a diameter d= 18 mm...
According to machine elements 1
Q-1 A solid circular rod with a diameter d= 18 mm is shown in Figure Q-3. The rod is made of an aluminum alloy that has an elastic modulus E = 72 GPa and a Poisson's ratio v = 0.32. When subjected to the axial load P, the diameter of the rod decreases by 0.025 mm. For a factor of safety of 1.75, a) Determine the magnitude of the safe allowable load P. [18 pts.]...
Q2. A hollow mild steel column has 25mm thickness and is 20cm in external diameter with...
Q2. A hollow mild steel column has 25mm thickness and is 20cm in external diameter with 6m length. The modulus value for mild steel is 1.2 x 106 N/mm² and this column is hinged at both ends find the Euler's crushing load and compare the load with the crushing load given by the Rankine's formula Determine for what length these two formulae will give the same crushing load? Finally Calculate the critical stresses for the series of strut having slenderness...
A pipe with an outside diameter of 175 mm and a wall thickness of 6 mm...
A pipe with an outside diameter of 175 mm and a wall thickness of 6 mm is subjected to the loadings shown in the figure below. Р. H For this analysis, use the following values: Distances, Loads, and Moments. a = 400 mm Px = 40.5 kN Py = 68.5 kN T = 35 kN-m (a) Calculate the maximum in-plane shear stress Tmax at point Hon the outer surface of the pipe if there is no internal pressure (i.e.,p-OkPa). (Note:...
please help ASAP
1.5-7 A hollow, brass circular pipe ABC (oce figure supports a load P, 118 kN acting at the top A second load P -98 kN is uaiformly distributed around the cap plate at B. The diameters and thicknesses of the upper and lower parts of the pipe are 31 mm ,,-12 mm, dae" 57 mm, and tac· 9 mm, respectively. The modulus of clasticity is 96 GPa. When both loads are fully applied, the wall thickness of...
Q-1 A solid circular rod with a diameter d = 18 mm is shown in Figure Q-3. The rod is made of an aluminum alloy that has an elastic modulus E = 72 GPa and a Poisson's ratio v=0.32. When subjected to the axial load P, the diameter of the rod decreases by 0.025 mm. For a factor of safety of 1.75, a) Determine the magnitude of the safe allowable load P. pts.] b) If we have a 12 mm...
The hollow steel construction auger in Figure 4 has an outer diameter d2 = 140 mm and thickness of t = 8 mm. The steel has a shear modulus of elasticity E = 200 GPa and v = 0.3. For an applied torque of 35 kN m, determine the following quantities: a) Shear stress at the mid-center of the thickness t of the shaft. [2] b) Shear stress on the outer surface. [1] c) Shear stress in the inner surface,...
4.A thin-walled cylindrical column carries a weightless arch and is loaded as shown in Figure 4. The column has an internal diameter of 250 mm with a thickness of 2 mm Given: E-200 GPa and 0.3 The answer to each part of the question is to be used for subsequent parts (a)Determine the stresses on the outer surface of the cylinder at points A and B due to (8 marks) (b) Determine the minimum internal pressure p required if the...
of a brass core (diameter d, -8 mm) surrounded by a steel shell (inner diameter d2 8.75 mm, outer diameter d -10 mm), topped by a rigid cap. A load P compresses the core and shell, which have length L 120 mm. The moduli of elasticity of the brass and steel are Eb- 101 GPa and E 200 GPa, respectively. a) What load P will compress the assembly by 0.104 mm? b) If the compressive yield stress of the brass...
the hollow tube down has an outside diameter of 45 mm
and an inside diameter of 40 mm. the tube is made of an aluminum
alloy with a minimum yield strength of 280 MPa. the bending load is
F =1.5 kN, the axial load is P = 10kN and the twisting moment is T
= 70 N-m. Determine the factor of safety based on the stress at
point A using (a) the maximum shear stress theory and (b) the
distortion...
Find the minimum required thickness tmin for a steel pipe column of length L-3.6 m and [25 pts.] Q-3 outer diameter d=160 mm supporting an axial load P-240 kN (See Fig. below). The column is fixed at the base and free at the top. (Use E 200 GPa and Sy-250 MPa.) -The critical 1loading is calculated from Euler's formula, L 2EI Per er (Le/r Le equivalent length ka/
Find the minimum required thickness tmin for a steel pipe column of...
According to machine elements 1
Q-1 A solid circular rod with a diameter d= 18 mm is shown in Figure Q-3. The rod is made of an aluminum alloy that has an elastic modulus E = 72 GPa and a Poisson's ratio v = 0.32. When subjected to the axial load P, the diameter of the rod decreases by 0.025 mm. For a factor of safety of 1.75, a) Determine the magnitude of the safe allowable load P. [18 pts.]...
Q2. A hollow mild steel column has 25mm thickness and is 20cm in external diameter with 6m length. The modulus value for mild steel is 1.2 x 106 N/mm² and this column is hinged at both ends find the Euler's crushing load and compare the load with the crushing load given by the Rankine's formula Determine for what length these two formulae will give the same crushing load? Finally Calculate the critical stresses for the series of strut having slenderness...
A pipe with an outside diameter of 175 mm and a wall thickness of 6 mm is subjected to the loadings shown in the figure below. Р. H For this analysis, use the following values: Distances, Loads, and Moments. a = 400 mm Px = 40.5 kN Py = 68.5 kN T = 35 kN-m (a) Calculate the maximum in-plane shear stress Tmax at point Hon the outer surface of the pipe if there is no internal pressure (i.e.,p-OkPa). (Note:...
