A horizontal insulating rod of length 16.1-cm and charge 29 nC is in a plane with...
A horizontal insulating rod of length 16.1-cm and charge 29 nC
is in a plane with a long straight vertical uniform line charge.
The linear charge density of the long line charge is 3.1 10-7 C/m.
What is the electric force on the rod if the end closest to the
line charge is 2.0 cm away? Hint: the electric field from an
infinitely long straight uniform line charge is:
____________ N

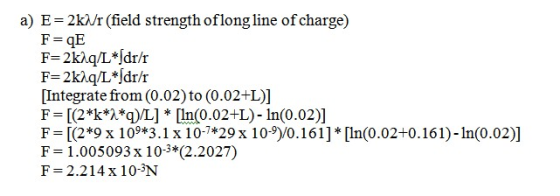

Homework Answers
Add Answer to:
A horizontal insulating rod of length 16.1-cm and charge 29 nC
is in a plane with...
A charge of uniform linear density 2.0 nC/m is distributed along a long, thin, nonconducting rod.
A charge of uniform linear density 2.0 nC/m is distributed along a long, thin, nonconducting rod. The rod is coaxial with a long conducting cylindrical shell (inner radius = 5.0 cm, outer radius 10 cm). The net charge on the shell is zero. (a) What is the magni- tude of the electric field 15 cm from the axis of the shell? What is the surface charge density on the (b) inner and (c) outer surface of the shell?
Assignment Problems: 1) An insulating rod of length L-8.15 cm is uniformly charged with (the prefix...
Assignment Problems: 1) An insulating rod of length L-8.15 cm is uniformly charged with (the prefix femto is a personal favorite ar lis 10-15) 4.22 fC total. (a) What is the linear charge density of the rod in Cm and electrons are attached to the rod? w many total excess (b) what is the electric field at point P (it's a vector, so bot agnitude and direction!). P is a 12.0 cm away from the end of the rod. The...
A thin insulating rod has a uniform charge density along its length of -1.25 x 10°C/m....
A thin insulating rod has a uniform charge density along its length of -1.25 x 10°C/m. The rod is fixed in place on the y-axis, centered on the origin, and has a length of 4.80 cm. 1. Estimate the magnitude of the electric field produced by the charged rod on the positive x-axis 20.0 m from the origin. (Zero is not an acceptable estimate.) 2. State the direction of the electric field at the said point. Type both answers in...
Problem 2. m, q An infinite insulating plane has a uniform surface charge density σ-528 nC/m2....
Problem 2. m, q An infinite insulating plane has a uniform surface charge density σ-528 nC/m2. A point charge q- 465 nC of mass m 1.14 10-8 kg is released at a distance of 50 cm from the plane. The charge is initially moving toward the plane with a speed of 24.0m/s. What is the closest distance to the plane the charge reaches? (Ignore gravity in this problem.)
A long, straight metal rod has a radius of 4.60 cm and a charge per unit length of 39.8 nC/m
A long, straight metal rod has a radius of 4.60 cm and a charge per unit length of 39.8 nC/m. Find the electric field at the following distances from the axis of the rod, where distances are measured perpendicular to the rod's axis. (a) 2.50 cm (b) 20.0 cm (c) 200 cm
A long, straight metal rod has a radius of 5.50 cm and a charge per unit length of 33.8 nC/m
A long, straight metal rod has a radius of 5.50 cm and a charge per unit length of 33.8 nC/m. Find the electric field at the following distances from the axis of the rod, where distances are measured perpendicular to the rod's axis. (a) 3.10 cm(b) 20.0 cm (c) 200 cm
A charge of uniform linear density 3.00 nC/m is distributed along a long, thin, nonconducting rod. The rod is coaxial with a long conducting cylindrical shell (inner radius = 6.00 cm, outer radius = 10.8 cm)
Chapter 23, Problem 028 GO A charge of uniform linear density 3.00
nC/m is distributed along a long, thin, nonconducting rod. The rod
is coaxial with a long conducting cylindrical shell (inner radius =
6.00 cm, outer radius = 10.8 cm). The net charge on the shell is
zero. (a) What is the magnitude of the electric field at distance r
= 16.8 cm from the axis of the shell? What is the surface charge
density on the (b) inner and...
A charge of uniform linear density 2.00 nC/m is distributed along a long, thin, nonconducting rod.
A charge of uniform linear density 2.00 nC/m is distributed along a long, thin, nonconducting rod. The rod is coaxial with a long conducting cylindrical shell (inner radius = 4.40 cm, outer radius = 10.2 cm). The net charge on the shell is zero. (a) What is the magnitude of the electric field at distance r = 14.6 cm from the axis of the shell? What is the surface charge density on the (b) inner and (c) outer surface of...
A charge of uniform linear density 3.00 nC/m is distributed along a long, thin, nonconducting rod....
A charge of uniform linear density 3.00 nC/m is distributed
along a long, thin, nonconducting rod. The rod is coaxial with a
long conducting cylindrical shell (inner radius = 4.40 cm, outer
radius = 10.6 cm). The net charge on the shell is zero. (a) What is
the magnitude (in N/C) of the electric field at distance r = 15.0
cm from the axis of the shell? What is the surface charge density
on the (b) inner and (c) outer...
A straight rod of length L = 21.60 cm, carries a uniform charge density, A =...
A straight rod of length L = 21.60 cm, carries a uniform charge density, A = 1.95 Times 10^-6 C/m. The rod is located along the y-axis from y_1 = 0.00 to y_2 = L Find the expression for the electric field along the y-axis, E_y, at a point P, What is the magnitude of the electric field at y_0 = 50.00 cm?
Assignment Problems: 1) An insulating rod of length L-8.15 cm is uniformly charged with (the prefix femto is a personal favorite ar lis 10-15) 4.22 fC total. (a) What is the linear charge density of the rod in Cm and electrons are attached to the rod? w many total excess (b) what is the electric field at point P (it's a vector, so bot agnitude and direction!). P is a 12.0 cm away from the end of the rod. The...
A thin insulating rod has a uniform charge density along its length of -1.25 x 10°C/m. The rod is fixed in place on the y-axis, centered on the origin, and has a length of 4.80 cm. 1. Estimate the magnitude of the electric field produced by the charged rod on the positive x-axis 20.0 m from the origin. (Zero is not an acceptable estimate.) 2. State the direction of the electric field at the said point. Type both answers in...
Problem 2. m, q An infinite insulating plane has a uniform surface charge density σ-528 nC/m2. A point charge q- 465 nC of mass m 1.14 10-8 kg is released at a distance of 50 cm from the plane. The charge is initially moving toward the plane with a speed of 24.0m/s. What is the closest distance to the plane the charge reaches? (Ignore gravity in this problem.)
A charge of uniform linear density 3.00 nC/m is distributed
along a long, thin, nonconducting rod. The rod is coaxial with a
long conducting cylindrical shell (inner radius = 4.40 cm, outer
radius = 10.6 cm). The net charge on the shell is zero. (a) What is
the magnitude (in N/C) of the electric field at distance r = 15.0
cm from the axis of the shell? What is the surface charge density
on the (b) inner and (c) outer...
A straight rod of length L = 21.60 cm, carries a uniform charge density, A = 1.95 Times 10^-6 C/m. The rod is located along the y-axis from y_1 = 0.00 to y_2 = L Find the expression for the electric field along the y-axis, E_y, at a point P, What is the magnitude of the electric field at y_0 = 50.00 cm?
